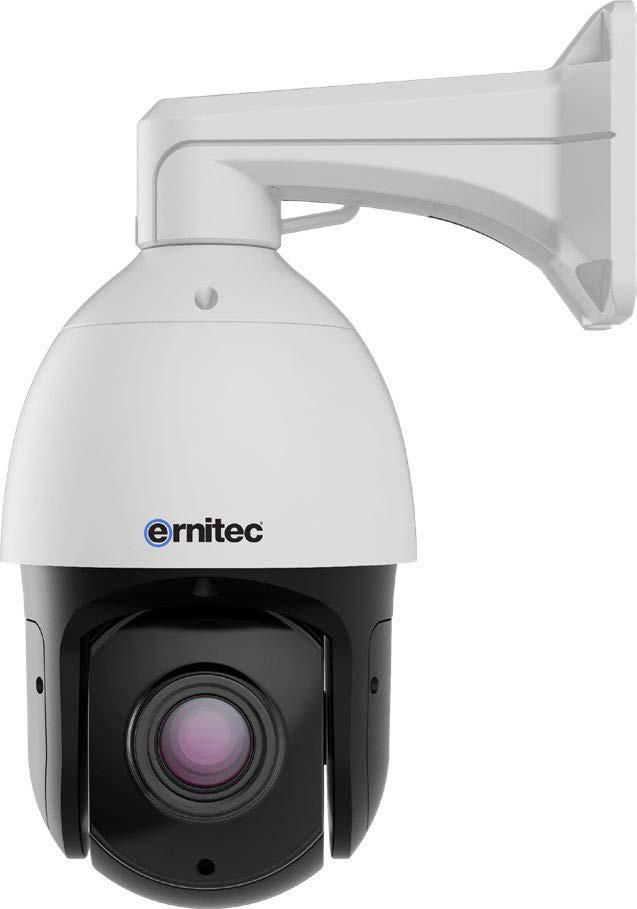

Ernitec 0070-08316-V2 security camera IP security camera Indoor & outdoor Ceiling/Wall/Pole

0070-08316-V2 security camera IP security camera Indoor & outdoor Ceiling/Wall/Pole

Model 0070-08316-V2EAN 5715328164062

77 specifications

ConnectivityWired
TypeIP security camera
Weight3.5 kg
ColourWhite
Mounting typeCeiling/Wall/Pole
Camera pan controlYes

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 3.5 kg
Colour: White
Mounting type: Ceiling/Wall/Pole
Camera pan control: Yes

Brand: Ernitec
Category: Security Camera
Model: 0070-08316-V2
Part number: 0070-08316-V2
EAN / UPC: 5715328164062
Also known as: Ernitec 0070-08316-V2 security camera IP security camera Indoor & outdoor Ceiling/Wall/Pole

Specifications

77 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Auto-tracking	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes

Design

Specification	Value
Mounting type	Ceiling/Wall/Pole
Product colour	White
Housing material	Metal
International Protection (IP) code	IP66
Weatherproof	Yes
Fog proof	Yes

Camera

Specification	Value
Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.07 lx
Lens viewing angle, horizontal	56.62° ~ 2.48
Lens viewing angle, vertical	42.76° ~ 1.91
Tilt manual speed	0.1 - 90 °/sec
Tilt preset speed	90 °/sec
Pan range	0 - 360°
Pan manual speed	0.1 - 180 °/sec
Pan preset speed	180 °/sec
White balance	Auto
Camera shutter type	Electronic
Camera shutter speed	1/5 ~ 1/20,000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Number of effective pixels (H x V)	2592 x 1944 pixels

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	30x
Digital zoom	16x
Detect distance	150 m
Focal length range	5.3 - 159 mm
Auto focus	Yes

Night vision

Specification	Value
Night vision	Yes
Night vision distance	150 m
B/W night vision distance	150 m
LED type	IR
Infra-red wavelength	850 nm

Video

Specification	Value
Total megapixels	5 MP
Video intelligence analytic	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
3D NR (Noise Reduction)	Yes
Back Light Compensation (BLC)	Yes
Highlight Compensation (HLC)	Yes
Privacy masking	Yes

Audio

Specification	Value
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Audio formats supported	G.711

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	SD
Maximum memory card size	256 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1

Security

Specification	Value
Alarm input channels	2
Alarm output channels	2
Password protection	Yes

Management features

Specification	Value
Web-based management	Yes
Web browser	Yes
Firmware upgradeable	Yes
Remotely operated	Yes
Reset button	Yes

Power

Specification	Value
Power source type	PoE+
AC input voltage	24/36 V
Power consumption (max)	30 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 55 °C
Operating relative humidity (H-H)	0 - 90%

Weight & dimensions

Specification	Value
Weight	3.5 kg

Packaging data

Specification	Value
Package weight	5 kg

Other features

Specification	Value
Dimensions (WxDxH)	173.2 x 173.2 x 292.6 mm
Warranty period	5 year(s)

Technical details

Specification	Value
Number of video streams	3
