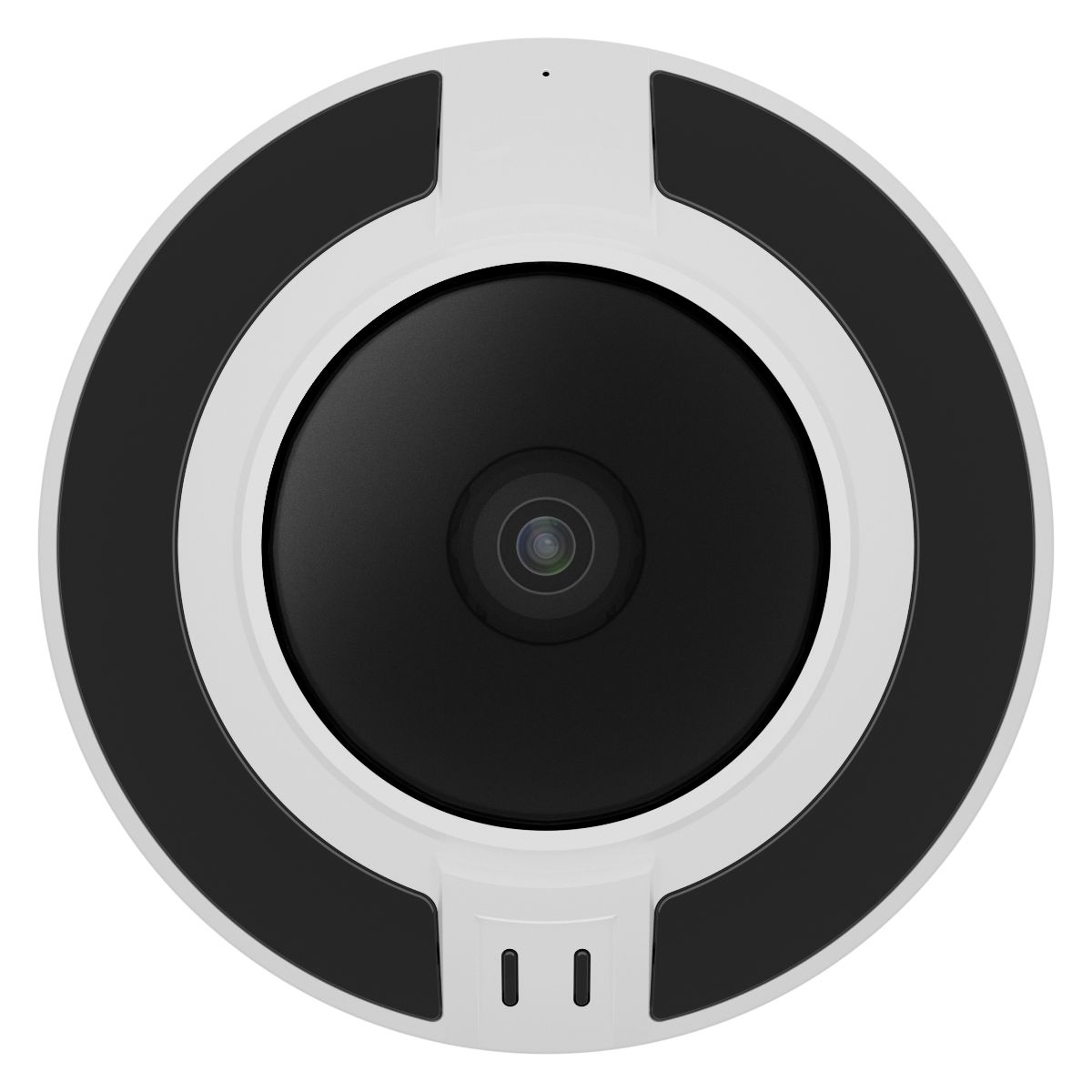

Ernitec 0070-08301 security camera Covert IP security camera Indoor & outdoor

0070-08301 security camera Covert IP security camera Indoor & outdoor

2560 x 2560 pixels

Model 0070-08301EAN 5715063349243

88 specifications

ConnectivityWired
TypeIP security camera
Weight500 g
ColourWhite
Form factorCovert
Camera pan controlNo

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 500 g
Colour: White
Form factor: Covert
Camera pan control: No

Brand: Ernitec
Category: Security Camera
Model: 0070-08301
Part number: 0070-08301
EAN / UPC: 5715063349243
Also known as: Ernitec 0070-08301 security camera Covert IP security camera Indoor & outdoor 2560 x 2560 pixels

Specifications

88 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
People counting function	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Languages support	English
Light exposure modes	Auto
Maximum indoor range	15 m
Plug and Play	Yes

Design

Specification	Value
Form factor	Covert
Product colour	White
Protection features	Vandal proof
International Protection (IP) code	IP66
Weatherproof	Yes

Camera

Specification	Value
Camera pan control	No
Minimum illumination	0.01 lx
Field of view (FOV) angle	360°
Camera shutter type	Electronic
Camera shutter speed	1/5 to 1/20,000s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes

Panoramic camera

Specification	Value
Adjustment shutter speed (panoramic camera)	Auto/Manual
Digital Wide Dynamic Range (DWDR) (panoramic camera)	Yes

Lens system

Specification	Value
Fixed focal length	1.5 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	15 m
LED type	IR
Infra-red wavelength	850 nm

Video

Specification	Value
Maximum resolution	2560 x 2560 pixels
Total megapixels	6 MP
Megapixels per lens	6 MP
Video compression formats	H.264
Frame rate	25 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
3D NR (Noise Reduction)	Yes
Back Light Compensation (BLC)	Yes
Flip & mirror	Yes
Full HD	Yes
Highlight Compensation (HLC)	Yes
Image quality adjustment	Brightness
Privacy masking	Yes
Smart IR	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Ethernet interface type	Gigabit Ethernet
Cabling technology	10/100/1000Base-T(X)
Live view	Yes
Quality of Service (QoS) support	Yes
Works with Apple HomeKit	No
Works with the Google Assistant	No

Storage

Specification	Value
Card reader integrated	Yes
Compatible memory cards	SD
Maximum memory card size	1 TB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Interface	RJ-45

Security

Specification	Value
Password protection	Yes
Password protection type	User
Active tampering alarm	Yes
Heartbeat	Yes
Privacy protection	Yes
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes
Remotely operated	Yes
Reset button	Yes

Power

Specification	Value
Power source type	DC
Power consumption (max)	9 W
Power consumption (Power over Ethernet (PoE))	9 W

Operational conditions

Specification	Value
Operating temperature (T-T)	-30 - 60 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	200 mm
Depth	200 mm
Height	90 mm
Weight	500 g

Packaging data

Specification	Value
Package width	200 mm
Package depth	200 mm
Package height	90 mm
Package weight	1 kg

Packaging content

Specification	Value
Number of cameras	1
Quick installation guide	Yes
