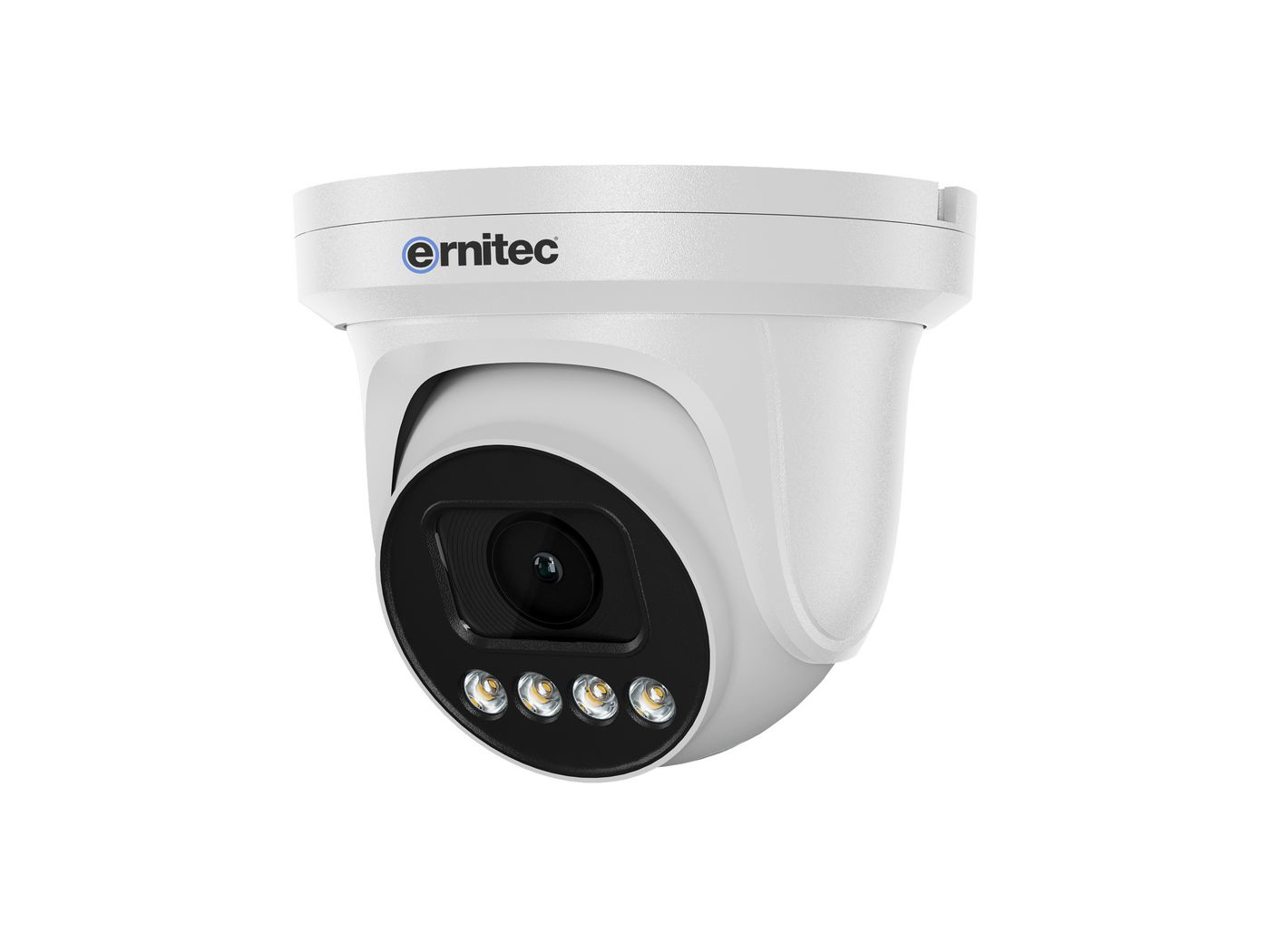

Ernitec Wolf Pro Network Camera
Ernitec

Wolf Pro Network Camera

5MP Vari-Focal Lens with IR

Model 0070-08113EAN 5715063068144

85 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight900 g
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
900 g
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Ernitec
Model
0070-08113
Part number
0070-08113
EAN / UPC
5715063068144
Also known as
Ernitec Wolf Pro Network Camera 5MP Vari-Focal Lens with IR

Specifications

85 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Maximum operating distance40 m
Day/night modeYes
Infrared (IR) cut-off filterYes
Languages supportSimplified Chinese, Czech, English, Spanish, French, Hungarian, Italian, Polish, Portuguese, Russian
Number of languages10

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal, Plastic
International Protection (IP) codeIP66
WeatherproofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0 lx
Angle of rotation360°
Lens viewing angle, horizontal87.5 - 26°
Lens viewing angle, vertical64.8 - 19.9°
Tilt angle range0 - 80°
Pan range0 - 355°
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/5 - 1/20000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)2592 x 1944 pixels

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
FocusMotorized
Minimum aperture number1.6

Night vision

Night visionYes
LED typeIR

Video

Maximum resolution2592 x 1944 pixels
Total megapixels5 MP
Frame rate30 fps
Video streamingYes
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Image quality adjustmentBrightness, Contrast, DNR, Mirror, Saturation, Sharpness
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedG.711, PCM
Built-in microphoneYes
Bit rate range8 - 64 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP, TLS/SSL
Number of users10 user(s)
Streaming methodUnicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsSD, SDHC, SDXC
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
DC-in jackYes

Security

Alarm input channels1
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresCrossing line, Face detection, Human detection, Intrusion, People counting, Vehicle detection
Motion sensorYes

Management features

Web-based managementYes
Reset buttonYes

Power

Power source typeDC, PoE
Power consumption (max)7.5 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 55 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Height119.2 mm
Diameter14 cm
Weight900 g

Sustainability

Compliance certificatesCE, Federal Communications Commission (FCC)
Sustainability complianceYes

Packaging data

Package weight1.5 kg

Packaging content

Number of cameras1
Mounting kitYes
ManualYes

Other features

Warranty period5 year(s)
