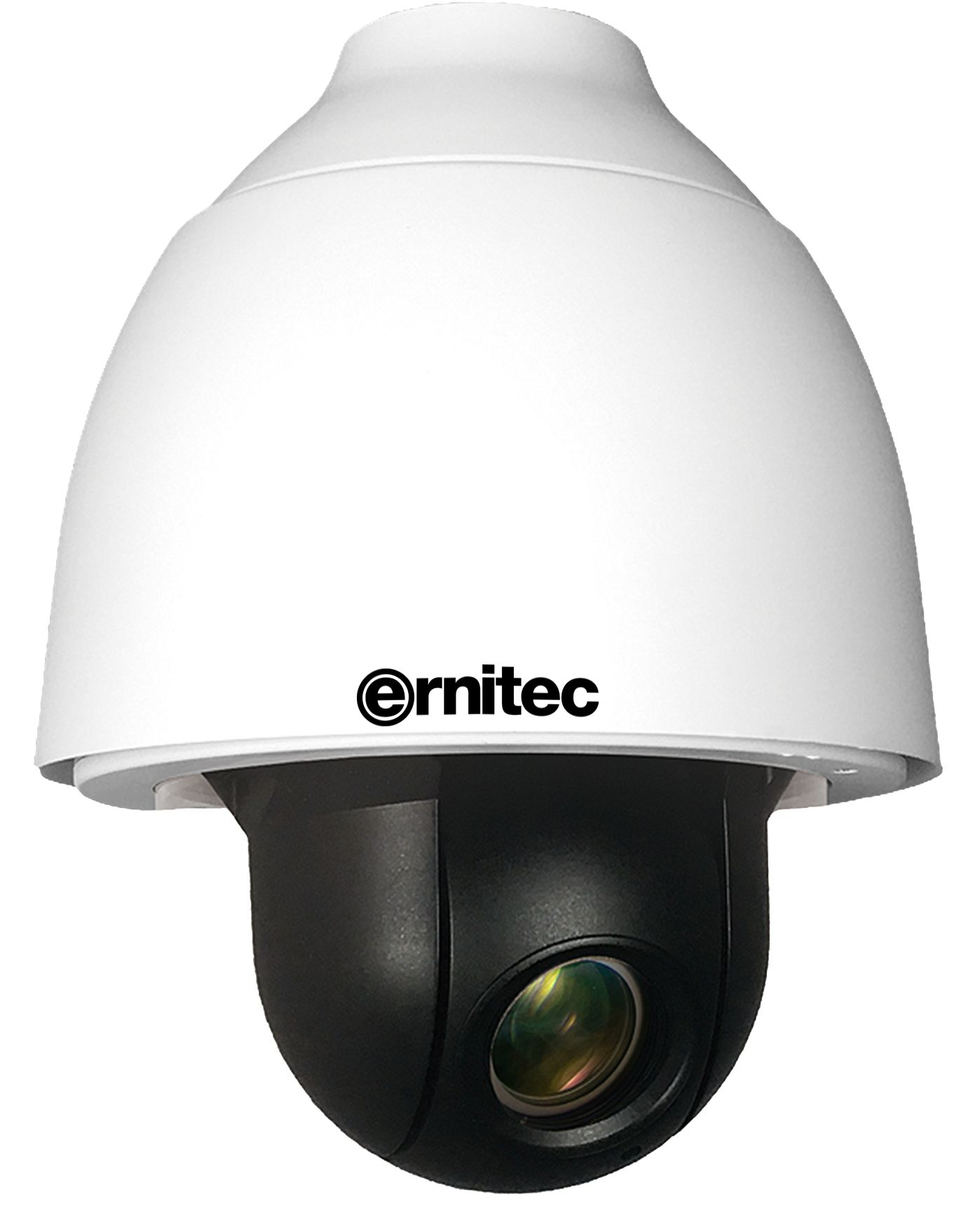

Ernitec 0070-05852 security camera Dome IP security camera Indoor & outdoor

0070-05852 security camera Dome IP security camera Indoor & outdoor

1945 x 1097 pixels Ceiling/wall

Model 0070-05852EAN 5704174996989

89 specifications

ConnectivityWired
TypeIP security camera
Weight5.3 kg
ColourWhite
Form factorDome
Camera pan controlNo

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Weight: 5.3 kg
Colour: White
Form factor: Dome
Camera pan control: No

Brand: Ernitec
Category: Security Camera
Model: 0070-05852
Part number: 0070-05852
EAN / UPC: 5704174996989
Also known as: Ernitec 0070-05852 security camera Dome IP security camera Indoor & outdoor 1945 x 1097 pixels Ceiling/wall

Specifications

89 specifications in 20 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	4 Pattern
Auto patrol mode	Yes
Thermal module	No
Wide Dynamic Range (WDR)	Yes
Built-in fan	Yes
Built-in heater	Yes

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling/wall
Product colour	White
Protection features	Dust resistant
International Protection (IP) code	IP66
IK code	IK10
Weatherproof	Yes

Camera

Specification	Value
Camera pan control	No
Tilt angle range	-15 - 90°
Pan range	0 - 360°
White balance	ATW

Image sensor

Specification	Value
Sensor type	CMOS
Number of sensors	1
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes

Panoramic camera

Specification	Value
Focal length range (panoramic camera)	4.3 - 129 mm

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	30x
Digital zoom	12x
Focal length range	4.3 - 129 mm
Auto focus	Yes
Focus	Motorized/Manual

Video

Specification	Value
Maximum resolution	1945 x 1097 pixels
Total megapixels	2 MP
Video compression formats	H.264, H.265, M-JPEG
Frame rate	30 fps
Analog signal format system	NTSC, PAL
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	3D noise reduction
Image stabilizer	Yes
3D NR (Noise Reduction)	Yes
Full HD	Yes
Privacy masking	Yes

Audio

Specification	Value
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Audio formats supported	G.711

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Gigabit Ethernet
Networking standards	IEEE 802.3at
Supported network protocols	ARP, PPPoE, IPv4/v6, ICMP, IGMP, QoS, TCP, UDP, DHCP, UPnP, SNMP, SMTP, RTP, RTSP, HTTP, HTTPS, FTP, NTP, DDNS
Number of users	20 user(s)
Quality of Service (QoS) support	Yes
Streaming method	Multicast
Works with Apple HomeKit	No
Works with the Google Assistant	No

Storage

Specification	Value
Built-in HDD	No
Built-in SSD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size	128 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Security

Specification	Value
HTTPS encryption	Yes
IP address filtering	Yes
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes
Web browser	Yes

Power

Specification	Value
Power source type	DC, PoE
Power consumption (max)	55 W
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 50 °C
Operating relative humidity (H-H)	10 - 90%

Weight & dimensions

Specification	Value
Width	200 mm
Depth	200 mm
Height	350 mm
Weight	5.3 kg

Packaging data

Specification	Value
Package width	300 mm
Package depth	300 mm
Package height	400 mm
Package weight	5.4 kg

Packaging content

Specification	Value
Number of cameras	1
Quick installation guide	Yes
Quick start guide	Yes

Other features

Specification	Value
Noise detection	Yes
Number of simultaneous users	20 user(s)

Technical details

Specification	Value
Sensor	IMX462
