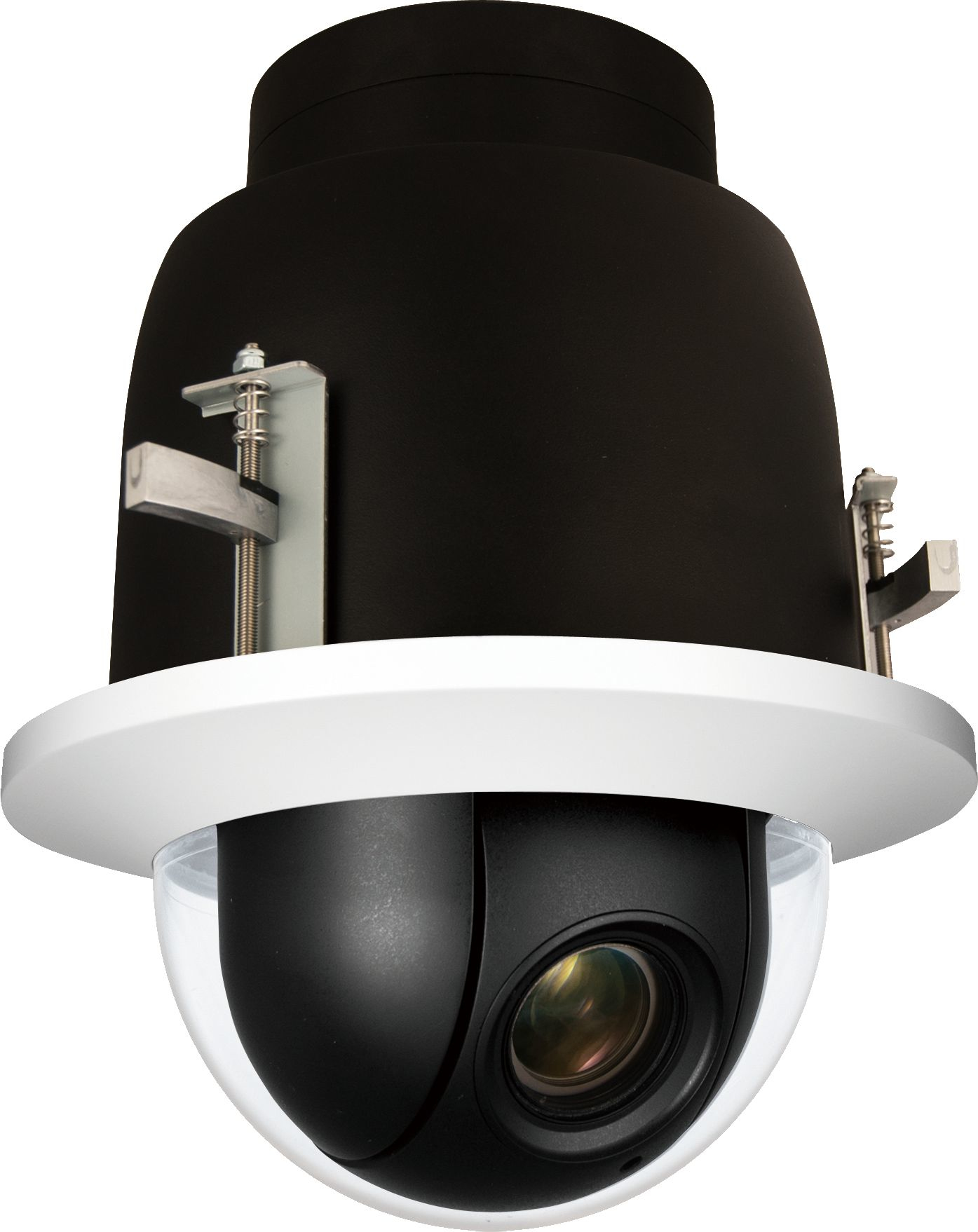

0070-05842IH security camera Dome IP security camera Indoor Ceiling
Model 0070-05842IHEAN 5704174948834
57 specifications
- ConnectivityWired
- TypeIP security camera
- Weight10.3 kg
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 10.3 kg
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Ernitec
- Category
- Security Camera
- Model
- 0070-05842IH
- Part number
- 0070-05842IH
- EAN / UPC
- 5704174948834
- Also known as
- Ernitec 0070-05842IH security camera Dome IP security camera Indoor Ceiling
Specifications
57 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | Auto pan |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Number of languages | 7 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Weatherproof | No |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.02 lx |
| Lens viewing angle, horizontal | 67 - 2° |
| Lens viewing angle, vertical | 38 - 1° |
| Pan range | 0 - 360° |
| Pan manual speed | 0.5 - 90 °/sec |
| Pan preset speed | 0.5 °/sec |
| Camera shutter type | Electronic |
| Number of Privacy masking areas | 16 |
Image sensor
| Specification | Value |
|---|---|
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 30x |
| Digital zoom | 12x |
| Focal length range | 4.3 - 129 mm |
Video
| Specification | Value |
|---|---|
| Total megapixels | 2 MP |
| Video compression formats | H.264 |
| Image stabilizer | Yes |
| 3D NR (Noise Reduction) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Audio formats supported | G.711 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 4 |
| Alarm output channels | 2 |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE+ |
| AC input voltage | 24 V |
| Power consumption (max) | 25 W |
| Power over Ethernet (PoE) | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 25 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 450 mm |
| Depth | 375 mm |
| Height | 550 mm |
| Weight | 10.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 450 mm |
| Package depth | 375 mm |
| Package height | 550 mm |
| Package weight | 10.4 kg |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 209 x 209 x 279 mm |
| Warranty period | 5 year(s) |
Technical details
| Specification | Value |
|---|---|
| Voltage | 12 V |
