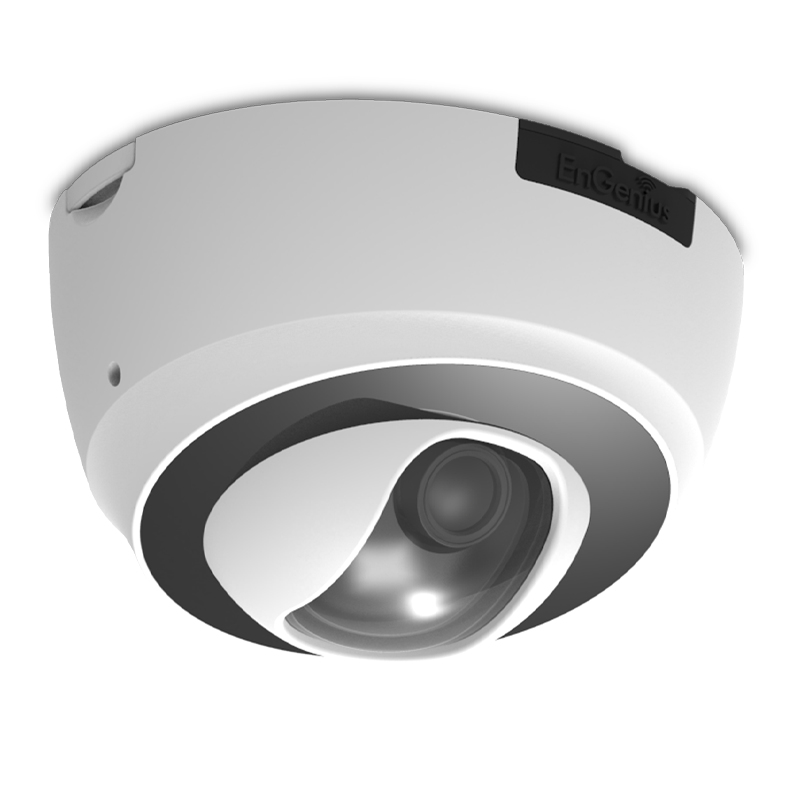

EnGenius EDS6115 security camera Dome IP security camera Indoor

1280 x 720 pixels Ceiling

Model EDS6115EAN 655216007208

66 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight228 g
ColourWhite
Form factorDome
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 228 g
Colour: White
Form factor: Dome
Minimum illumination: 0 lx

Brand: EnGenius
Category: Security Camera
Model: EDS6115
Part number: EDS6115
EAN / UPC: 655216007208
Also known as: EnGenius EDS6115 security camera Dome IP security camera Indoor 1280 x 720 pixels Ceiling

Specifications

66 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Remote viewing	Yes
Antenna type	Internal
Antennas quantity	1
Antenna gain level (max)	3 dBi
Certification	FCC/CE/LVD

Design

Specification	Value
Form factor	Dome
Mounting type	Ceiling
Product colour	White

Camera

Specification	Value
Minimum illumination	0 lx
Field of view (FOV) angle	86.8°
Camera shutter speed	1/7.5 - 1/24000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")
Progressive scan	Yes

Lens system

Specification	Value
Maximum aperture number	1.8
Fixed focal length	3.3 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	10 m
LED type	IR
Number of illumination LEDs	12

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Total megapixels	1 MP
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 720 (HD 720)
Frame rate	30 fps
Flip & mirror	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Audio formats supported	G.711
Built-in microphone	Yes
Audio detection	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af
Supported network protocols	IPv4, TCP, UDP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, PPPoE, UPnP, NFS /Samba client, QoS/DSCP, RTP, RTSP, 3GPP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)
Quality of Service (QoS) support	Yes

Storage

Specification	Value
Built-in HDD	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Security

Specification	Value
Password protection type	User
Security algorithms	WEP, WPA, WPA2, WPS
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes
Firmware upgradeable	Yes
Remotely operated	Yes
Reset button	Yes
WPS push button	Yes

Power

Specification	Value
Power source type	PoE
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 45 °C
Operating relative humidity (H-H)	10 - 80%

System requirements

Specification	Value
Windows operating systems supported	Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista

Weight & dimensions

Specification	Value
Height	65.3 mm
Diameter	9.6 cm
Weight	228 g

Packaging content

Specification	Value
Number of cameras	1
Cables included	LAN (RJ-45)
