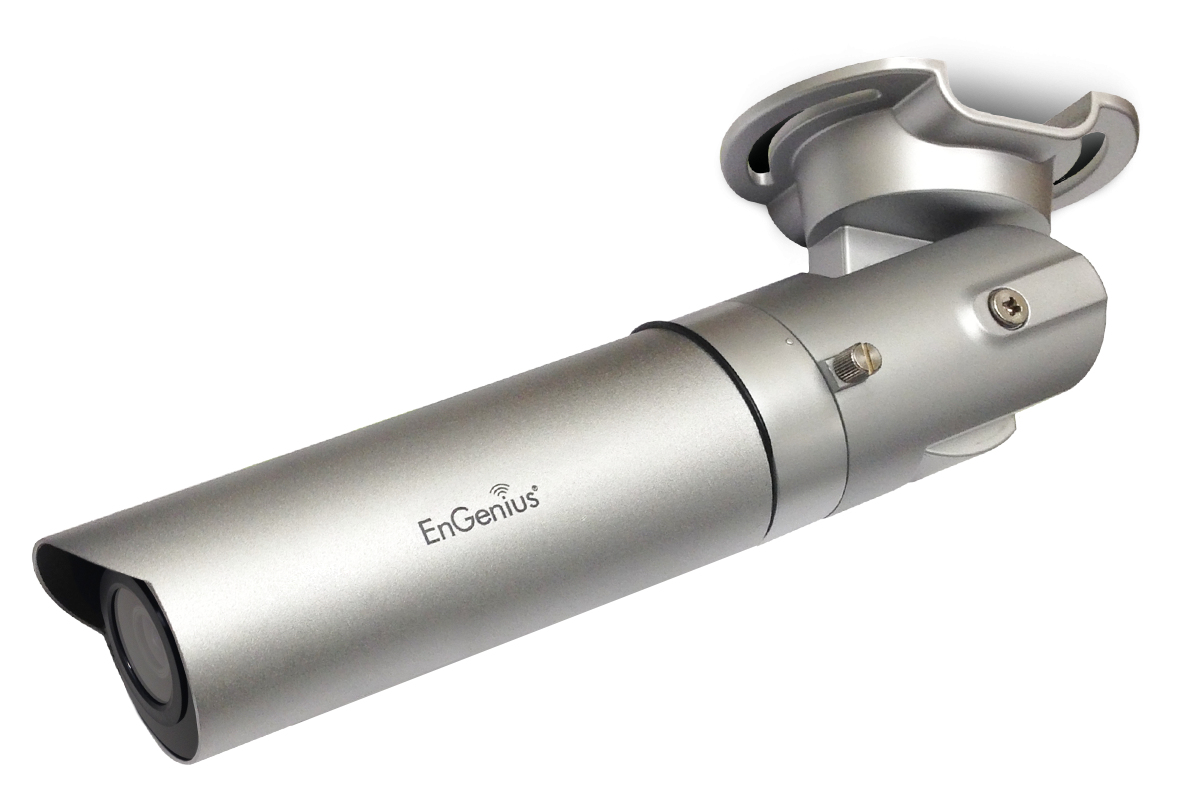

EnGenius EDS5110 security camera Bullet IP security camera Indoor & outdoor

1280 x 720 pixels Ceiling

Model EDS5110EAN 655216007017

64 specifications

ConnectivityWired & Wireless
TypeIP security camera
ColourSilver
Form factorBullet
Minimum illumination0.5 lx
Sensor typeCMOS

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Colour: Silver
Form factor: Bullet
Minimum illumination: 0.5 lx
Sensor type: CMOS

Brand: EnGenius
Category: Security Camera
Model: EDS5110
Part number: EDS5110
EAN / UPC: 655216007017, 6552160070170
Also known as: EnGenius EDS5110 security camera Bullet IP security camera Indoor & outdoor 1280 x 720 pixels Ceiling

Specifications

64 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Alarm input/output	Yes
Remote viewing	Yes
Antenna type	External
Antennas quantity	1
Antenna gain level (max)	2 dBi
Plug and Play	Yes

Design

Specification	Value
Form factor	Bullet
Mounting type	Ceiling
Product colour	Silver
Housing material	Metal
International Protection (IP) code	IP66
Weatherproof	Yes

Camera

Specification	Value
Minimum illumination	0.5 lx
Field of view (FOV) angle	62°
Camera shutter speed	1/7.5 - 1/24000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")
Progressive scan	Yes

Lens system

Specification	Value
Fixed focal length	4 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	10 m
LED type	IR
Number of illumination LEDs	12

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Total megapixels	1 MP
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	1280 x 720 (HD 720)
Frame rate	30 fps
Flip & mirror	Yes
Full HD	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Time stamp overlay	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	Fast Ethernet
Wi-Fi standards	Wi-Fi 4 (802.11n)
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Interface	RJ-45

Security

Specification	Value
Alert notification type	E-mail
IP address filtering	Yes

Management features

Specification	Value
Web-based management	Yes
Cable management	Yes
Firmware upgradeable	Yes
Remotely operated	Yes
Reset button	Yes
WPS push button	Yes

Power

Specification	Value
Power source type	PoE
Power over Ethernet (PoE)	Yes

Operational conditions

Specification	Value
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 80%

System requirements

Specification	Value
Windows operating systems supported	Windows 2000, Windows 2000 Professional, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vis
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Diameter	4.5 cm
Length	185 mm

Packaging content

Specification	Value
Number of cameras	1
Cables included	LAN (RJ-45)
