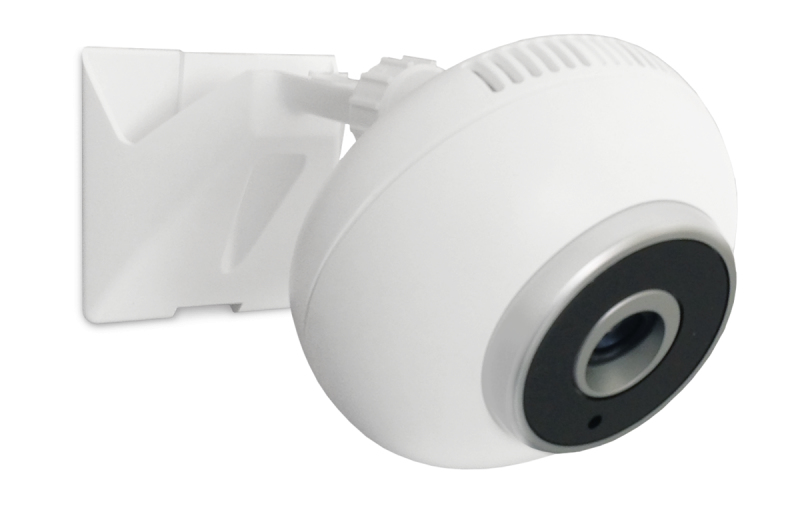

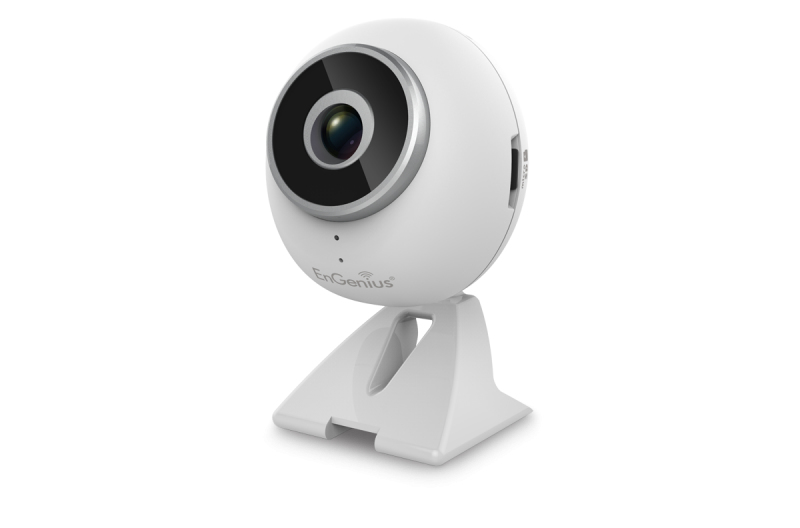

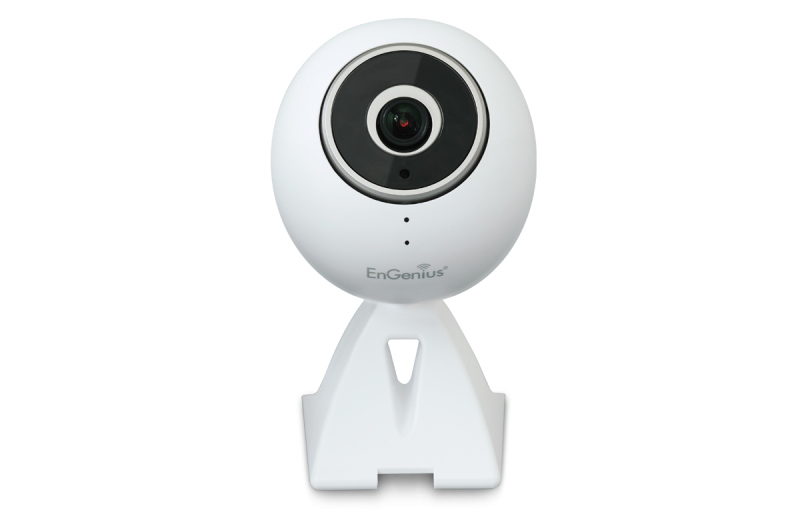

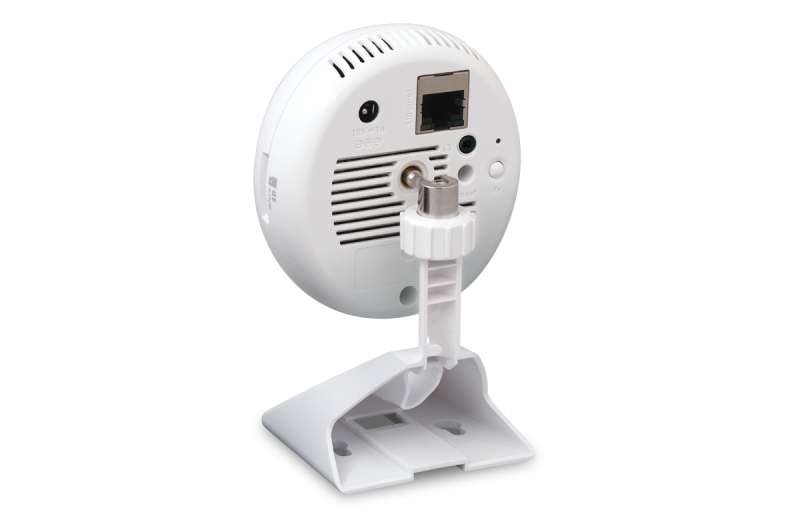

EnGenius EDS1130 security camera Covert IP security camera Indoor & outdoor

1280 x 720 pixels Desk/Wall

Model EDS1130EAN 655216007154

77 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight138 g
ColourWhite
Form factorCovert
Minimum illumination0 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 138 g
Colour: White
Form factor: Covert
Minimum illumination: 0 lx

Brand: EnGenius
Category: Security Camera
Model: EDS1130
Part number: EDS1130
EAN / UPC: 655216007154, 6552160071542
Also known as: EnGenius EDS1130 security camera Covert IP security camera Indoor & outdoor 1280 x 720 pixels Desk/Wall

Specifications

77 specifications in 17 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired & Wireless
PTZ control	No
Day/night mode	Yes
Infrared (IR) cut-off filter	Yes
Alarm input/output	Yes
Plug and Play	Yes
Certification	FCC, IC

Design

Specification	Value
Form factor	Covert
Mounting type	Desk/Wall
Product colour	White
LED indicators	Yes

Camera

Specification	Value
Minimum illumination	0 lx
Lens viewing angle, horizontal	53°
Lens viewing angle, vertical	33°
Lens viewing angle, diagonal	62°
White balance	Auto
Camera shutter speed	1/7.5 - 1/24000 s

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	No
Optical zoom	0x
Lens diameter	2.4 mm
Maximum aperture number	1.5
Fixed focal length	4 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	5 m
LED type	IR
Number of illumination LEDs	6

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Total megapixels	1 MP
Video compression formats	H.264, M-JPEG, MPEG4
Supported graphics resolutions	160 x 120, 640 x 480 (VGA), 1280 x 720 (HD 720)
Supported video modes	720p
Frame rate	30 fps
Flip & mirror	Yes
Image quality adjustment	Brightness, Contrast, Saturation, Sharpness
Text caption overlay	Yes
Time stamp overlay	Yes

Audio

Specification	Value
Audio system	2-way
Audio formats supported	AAC, G.711
Built-in microphone	Yes

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	IPv4, TCP, DHCP, NTP, DNS, DDNS, SMTP, FTP, HTTP, UPnP, RTP, RTSP, PPPoE, SMB
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
Microphone in	Yes
Interface	RJ-45

Security

Specification	Value
IP address filtering	Yes
Motion sensor	Yes
Security algorithms	WEP, WPA, WPA2, WPS
Video motion detection	Yes

Management features

Specification	Value
Web-based management	Yes
Remotely operated	Yes
WPS push button	Yes

Power

Specification	Value
DC output voltage	+12V
DC output current	1 A
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-10 - 50 °C
Operating relative humidity (H-H)	5 - 95%
Storage relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	78 mm
Depth	80.6 mm
Height	122.4 mm
Weight	138 g

Packaging content

Specification	Value
Number of cameras	1
