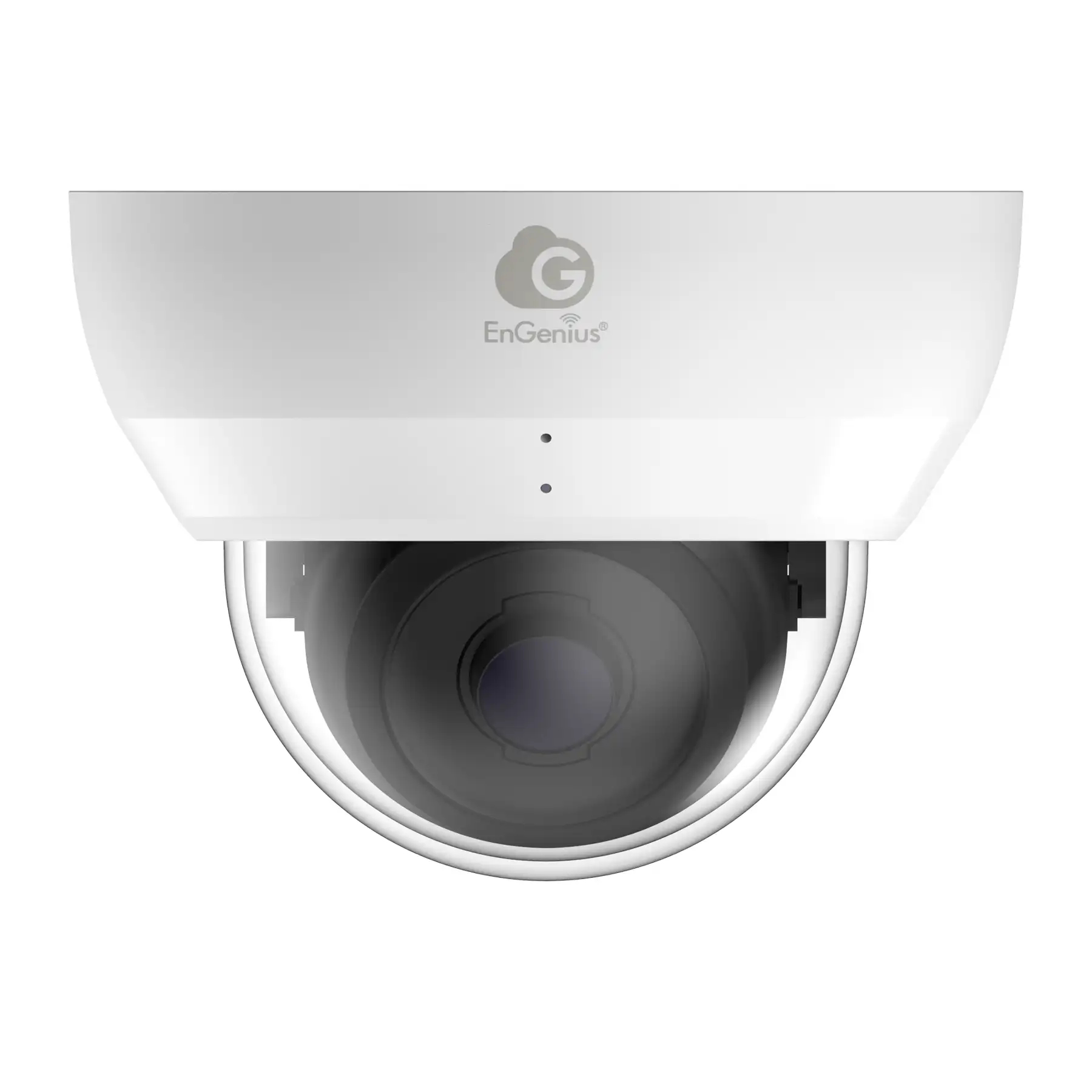

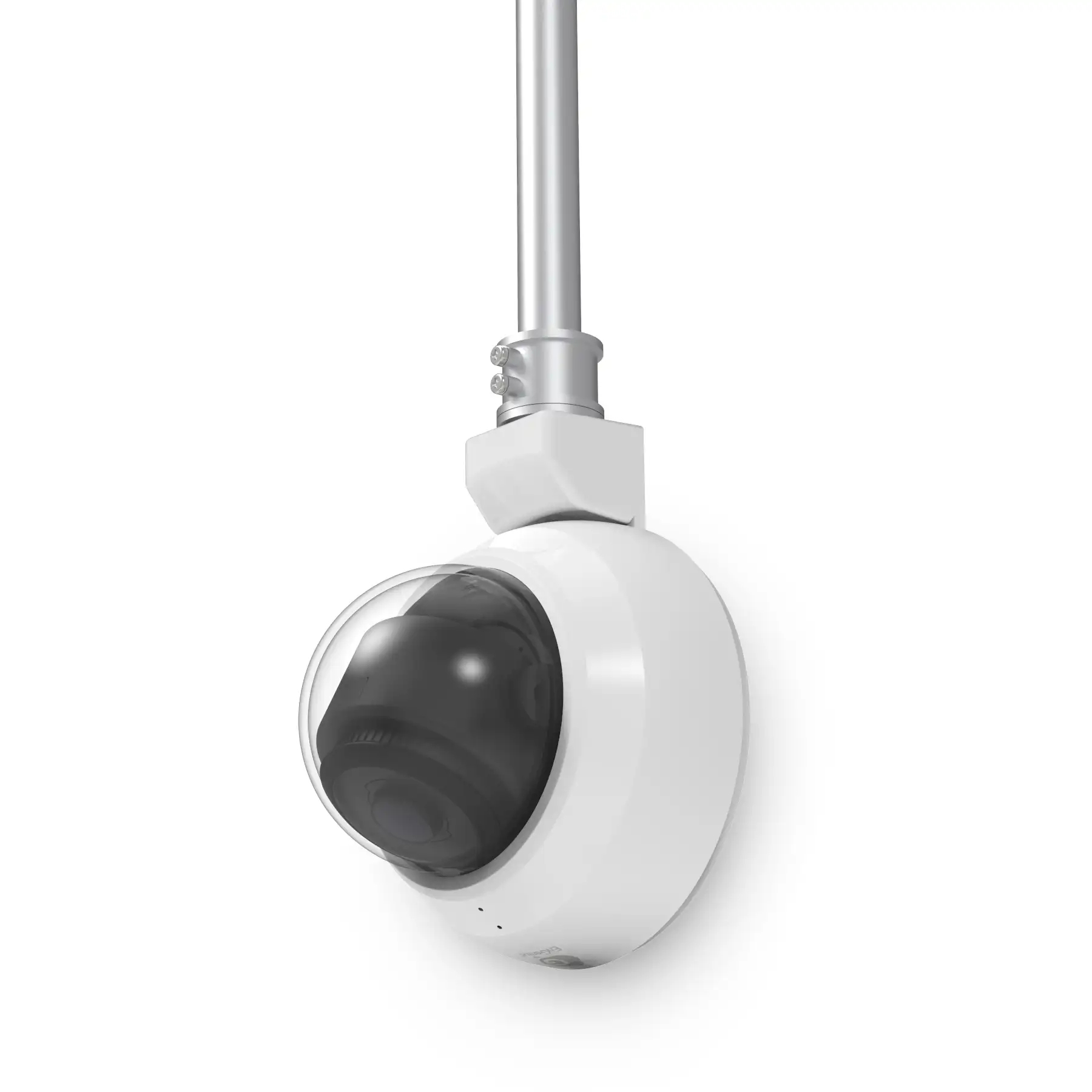

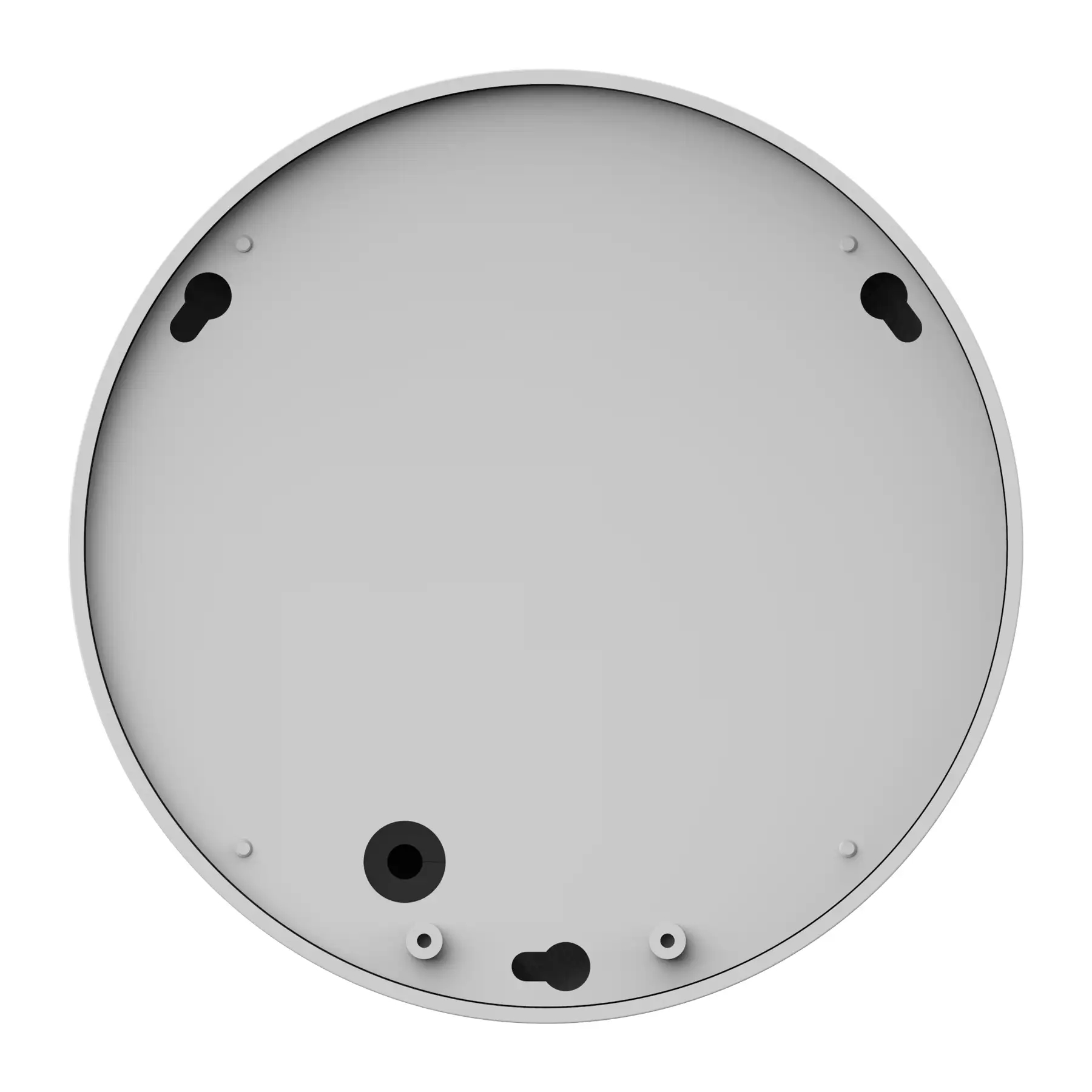

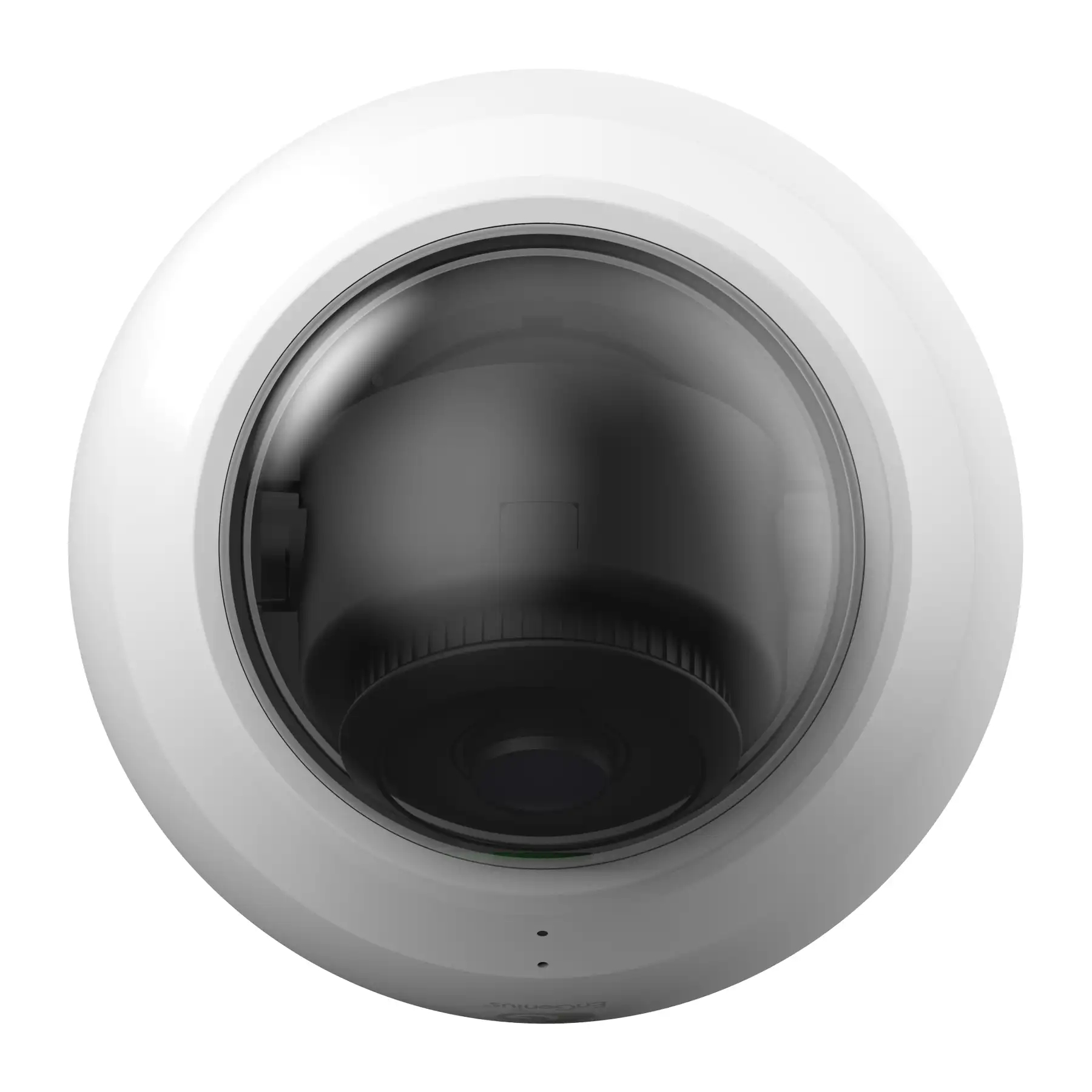

Cam8MP Dome IP67 NS
Model ECC500ZEAN 655216012141
51 specifications
- ConnectivityWired
- TypeIP security camera
- Weight740 g
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 740 g
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- EnGenius
- Category
- Security Camera
- Model
- ECC500Z
- Part number
- ECC500Z
- EAN / UPC
- 655216012141
- Also known as
- EnGenius Cam8MP Dome IP67 NS
Specifications
51 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Aluminium |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
| Country of origin | Taiwan |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Angle of rotation | 350° |
| Lens viewing angle, horizontal | 30.3 - 108.1° |
| Lens viewing angle, vertical | 17.1 - 56.3° |
| Lens viewing angle, diagonal | 34.8 - 130.9° |
| Tilt angle range | 0 - 60° |
| Pan range | 0 - 350° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Total megapixels | 8 MP |
| Video formats supported | H.264, H.265 |
| Video compression formats | H.264, H.265 |
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| Video recording | Yes |
| Frame rate | 20 fps |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Management features
| Specification | Value |
|---|---|
| Cloud-managed | Yes |
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 16.1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 105 mm |
| Diameter | 14.5 cm |
| Weight | 740 g |
