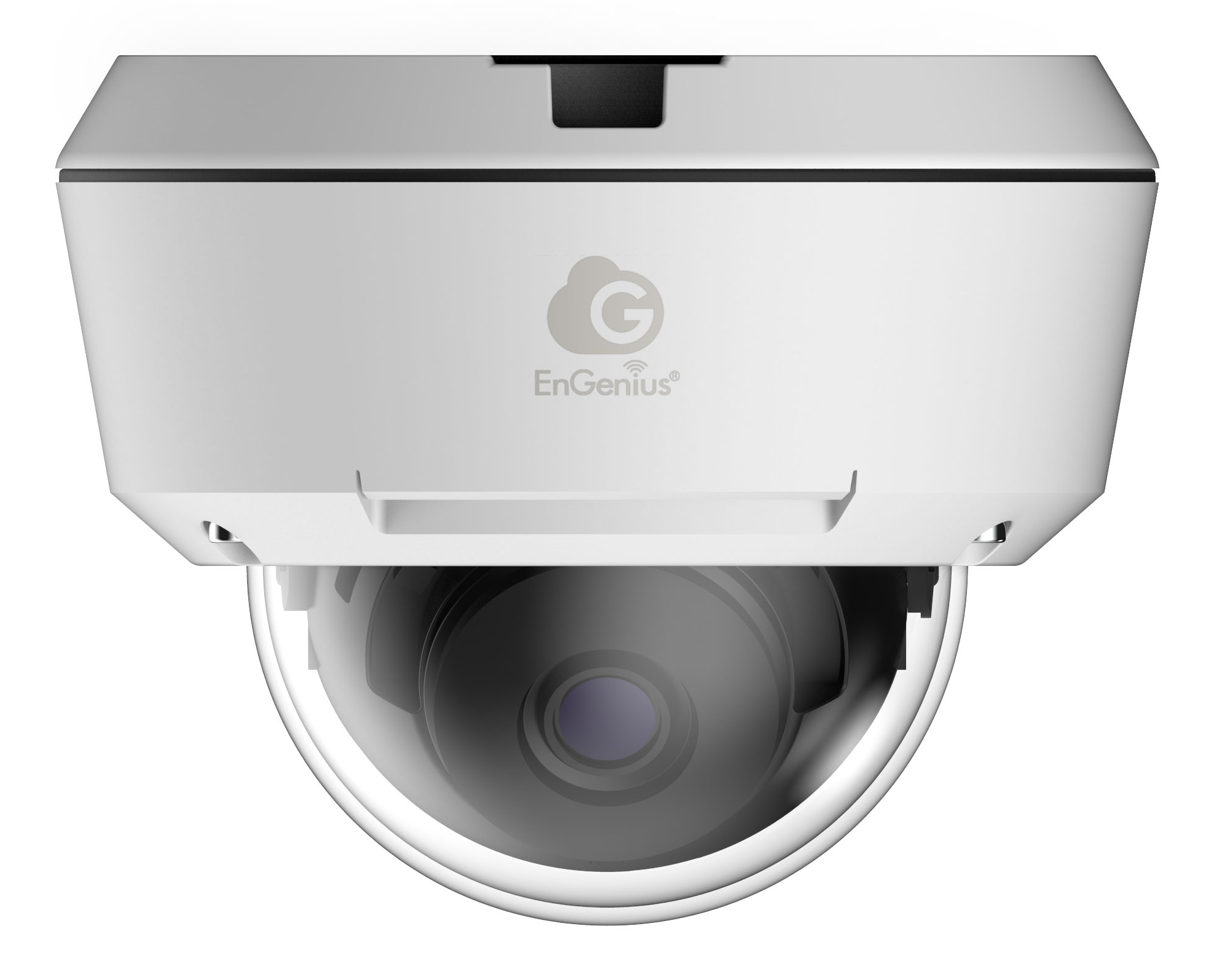

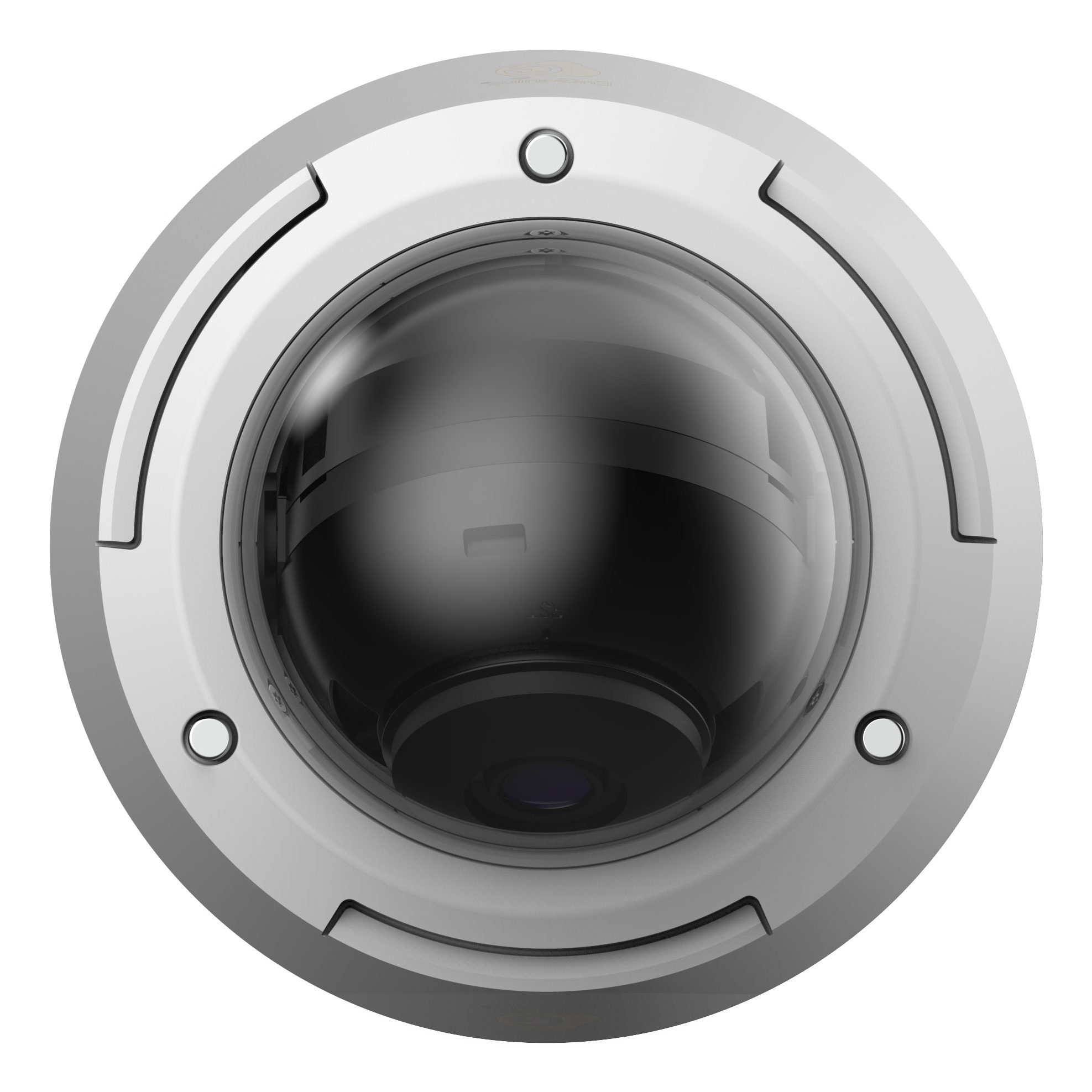

Managed Dome IP Camera
Model ECC100EAN 655216011274
63 specifications
- ConnectivityWired
- TypeIP security camera
- Weight525 g
- ColourWhite
- Form factorDome
- Angle of rotation350°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 525 g
- Colour
- White
- Form factor
- Dome
- Angle of rotation
- 350°
- Brand
- EnGenius
- Category
- Security Camera
- Model
- ECC100
- Part number
- ECC100
- EAN / UPC
- 655216011274, 4711488350209
- Also known as
- EnGenius Managed Dome IP Camera
Specifications
63 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
| Infrared (IR) cut-off filter | Yes |
| Built-in processor | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Angle of rotation | 350° |
| Lens viewing angle, horizontal | 102° |
| Lens viewing angle, vertical | 71.6° |
| Lens viewing angle, diagonal | 132° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 350° |
| Camera shutter speed | 1/7.5 - 1/10000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 3.16 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 20 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2592 x 1944 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.265 |
| Video compression formats | H.264, H.265 |
| Supported video modes | 1944p |
| Video recording | Yes |
| Frame rate | 20 fps |
| Video streaming | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
Storage
| Specification | Value |
|---|---|
| ROM capacity | 256000 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Human and vehicle targets classification | Yes |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Cloud-managed | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (max) | 6.1 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 94.8 mm |
| Diameter | 12.2 cm |
| Weight | 525 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 216 mm |
| Package depth | 186 mm |
| Package height | 143 mm |
| Package weight | 1.02 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Logistics data
| Specification | Value |
|---|---|
| Master (outer) case width | 396 mm |
| Master (outer) case length | 456 mm |
| Master (outer) case height | 476 mm |
| Master (outer) case gross weight | 13.6 kg |
| Products per master (outer) case | 12 pc(s) |
