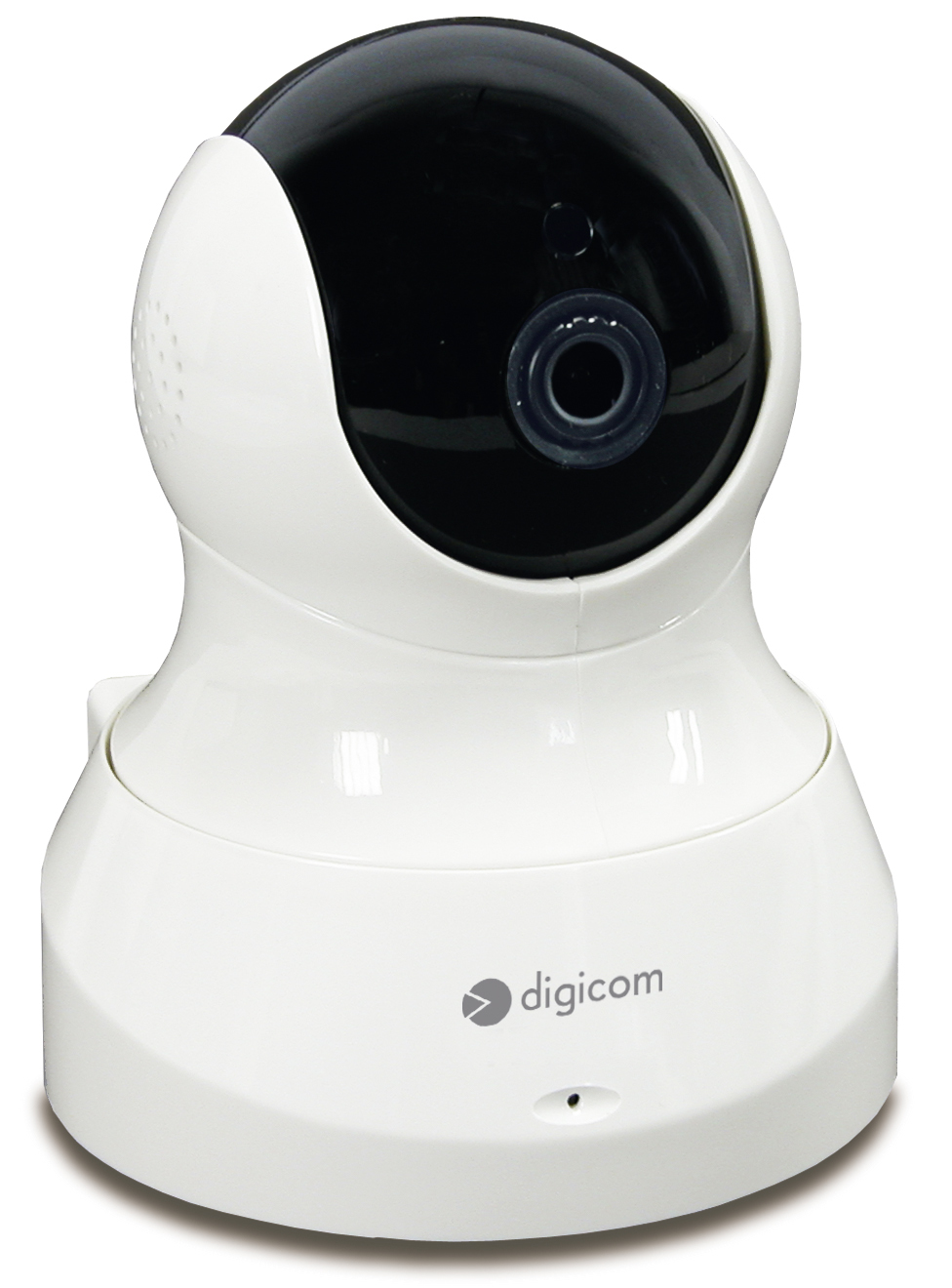

Digicom IPC431-T02 Dome IP security camera Indoor

1280 x 720 pixels Desk

Model IPC431-T02Part no. 8E4582EAN 8030476006000

69 specifications

ConnectivityWired & Wireless
TypeIP security camera
Weight700 g
ColourWhite
Form factorDome
Minimum illumination0.1 lx

See all specifications

Overview

Connectivity: Wired & Wireless
Type: IP security camera
Weight: 700 g
Colour: White
Form factor: Dome
Minimum illumination: 0.1 lx

Brand: Digicom
Category: Security Camera
Model: IPC431-T02
Part number: 8E4582
EAN / UPC: 8030476006000
Also known as: Digicom IPC431-T02 Dome IP security camera Indoor 1280 x 720 pixels Desk

Specifications

69 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor
Connectivity technology	Wired & Wireless
PTZ control	Yes
Day/night mode	Yes
Antenna type	External
Antennas quantity	1

Design

Specification	Value
Form factor	Dome
Mounting type	Desk
Product colour	White

Camera

Specification	Value
Minimum illumination	0.1 lx
Field of view (FOV) angle	71°
Tilt angle range	0 - 100°
Pan range	0 - 345°

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 4 mm (1 / 4")

Lens system

Specification	Value
Lens diameter	6 mm

Night vision

Specification	Value
Night vision	Yes
Night vision distance	8 m
LED type	IR
Number of illumination LEDs	10

Video

Specification	Value
Maximum resolution	1280 x 720 pixels
Total megapixels	1 MP
Video formats supported	H.264
Video compression formats	H.264
Supported graphics resolutions	640 x 352, 1280 x 720 (HD 720)
Supported video modes	720p
Frame rate	25 fps

Audio

Specification	Value
Built-in speaker(s)	Yes
Audio system	2-way
Audio formats supported	G.711, G.726
Built-in microphone	Yes
Voice codecs	G.711, G.726

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	Yes
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Supported network protocols	TCP / IP, UDP, HTTP, HTTPS, SMTP, FTP, DHCP, DDNS, RTSP, WPS, P2P
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Wi-Fi data rate (max)	150 Mbit/s
Cabling technology	10/100Base-T(X)

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	32 GB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes
Interface	RJ-45

Security

Specification	Value
Password protection type	Supervisor, User
HTTPS encryption	Yes
Motion sensor	Yes
Security algorithms	WEP, WPA

Management features

Specification	Value
Reset button	Yes

Power

Specification	Value
Power consumption (max)	6 W
DC output voltage	5
DC output current	2 A
Power over Ethernet (PoE)	No

Operational conditions

Specification	Value
Operating temperature (T-T)	5 - 45 °C
Storage temperature (T-T)	-20 - 60 °C
Operating relative humidity (H-H)	20 - 85%
Storage relative humidity (H-H)	0 - 90%

System requirements

Specification	Value
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Width	118 mm
Depth	150.5 mm
Height	212.5 mm
Weight	700 g

Packaging content

Specification	Value
Number of cameras	1
Manual	Yes
