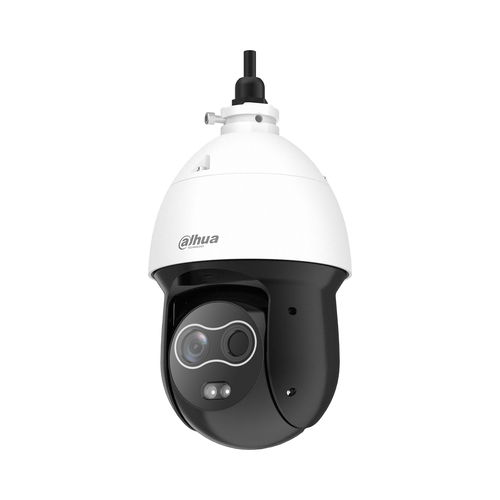

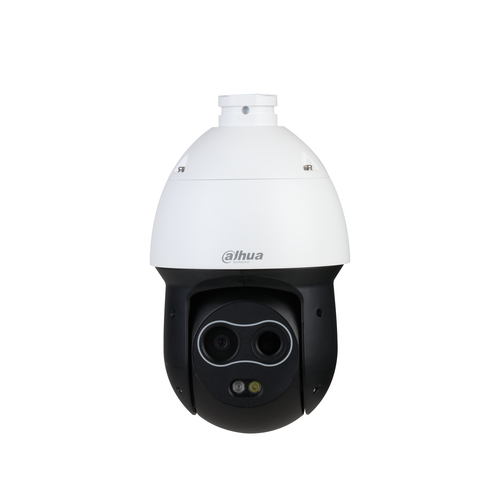

TPC-SD2241-T security camera Bullet CCTV security camera Outdoor
1920 x 1080 pixels Ceiling/Wall/Desk
Model TPC-SD2241-T
61 specifications
- TypeCCTV security camera
- Weight3.2 kg
- ColourWhite
- Form factorBullet
- Camera pan controlYes
- Sensor typeCMOS
Overview
- Type
- CCTV security camera
- Weight
- 3.2 kg
- Colour
- White
- Form factor
- Bullet
- Camera pan control
- Yes
- Sensor type
- CMOS
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- TPC-SD2241-T
- Part number
- TPC-SD2241-T
- Also known as
- Dahua Technology TPC-SD2241-T security camera Bullet CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Desk
Specifications
61 specifications in 14 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| PTZ control | Yes |
| Auto pan mode | Yes |
| Tour recording | Yes |
| Preset points | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | White |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 2336° |
| Lens viewing angle, vertical | 1752° |
| Tilt angle range | -15 - 90° |
| Tilt preset speed | 200 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 240 °/sec |
| Pan speed | 200 °/sec |
| Auto flip | Yes |
| White balance | Auto, Indoor, Outdoor, Street lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1 s |
| Adjustment shutter speed | Auto |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Digital zoom | 16x |
| Focal length range | 4 -12 mm |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 1.3 MP |
| Video compression formats | H.264, H.264B, H.264H, H.265, MPEG |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio system | 2-way |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
Management features
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| DC output voltage | 12, 24 |
| DC output current | 2 A |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 295 mm |
| Diameter | 16 cm |
| Weight | 3.2 kg |
