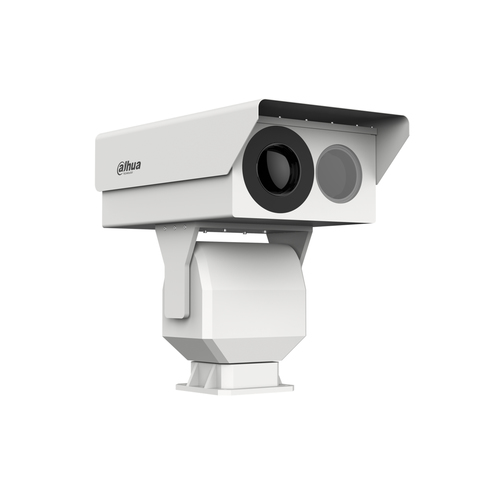

Ultra TPC-PT8621B Box CCTV security camera Outdoor
1920 x 1080 pixels Desk
Model TPC-PT8621BPart no. DH-TPC-PT8621B
93 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight50 kg
- ColourWhite
- Form factorBox
- Minimum illumination0.0005 lx
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 50 kg
- Colour
- White
- Form factor
- Box
- Minimum illumination
- 0.0005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- TPC-PT8621B
- Part number
- DH-TPC-PT8621B
- Also known as
- Dahua Technology Ultra TPC-PT8621B Box CCTV security camera Outdoor 1920 x 1080 pixels Desk
Specifications
93 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ modes | 5 Pattern, 8 Tour, Auto scan, Auto pan |
| PTZ protocols | Pelco-P/D, DH-SD |
| Auto-tracking | Yes |
| Thermal module | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Thermal sensitivity (NETD) | 40 mK |
| Certification | CE (EN 60950:2000); FCC (FCC Part 15 SubpartB ) |
Design
| Specification | Value |
|---|---|
| Form factor | Box |
| Mounting type | Desk |
| Product colour | White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.0005 lx |
| Field of view (FOV) angle | 42.34° |
| Tilt angle range | 0 - 360° |
| Tilt manual speed | 0.01 - 12 °/sec |
| Tilt preset speed | 12 °/sec |
| Pan range | 0 - 360° |
| Pan manual speed | 0.01 - 30 °/sec |
| Pan preset speed | 30 °/sec |
| Camera pixel size | 17 µm |
| White balance | Auto, Indoor, Manual, Outdoor, Sodium lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/100000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 4 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Sensor type (thermal module) | Noise equivalent temperature difference (NETD) |
| Effective sensor resolution (thermal module) | 1280 x 1024 pixels |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 640 x 512 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 60x |
| Digital zoom | 16x |
| Focal length range | 6.6 - 330; 21 - 500; 12.5 - 750; 16.7 - 1000 mm |
| Auto focus | Yes |
| Focus | Manual |
| Maximum aperture number | 1.2 |
| Minimum aperture number | 1 |
| Infrared spectral band | 8 - 14 µm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Video compression formats | H.265, H.264M, H.264H, H.264B |
| Supported graphics resolutions | 320 x 256, 352 x 288, 640 x 512, 704 x 576, 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711, PCM |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Networking standards | IEEE 802.1x |
| Supported network protocols | HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Number of users | 20 user(s) |
| User access level | Administrator, User |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 2 |
| Alarm output channels | 1 |
| Fire detection | Yes |
| Detection distance | 14902 m |
| HTTPS encryption | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 100 - 300 V |
| Power consumption (typical) | 100 W |
| Power consumption (max) | 260 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 640 mm |
| Depth | 400 mm |
| Height | 612 mm |
| Weight | 50 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 877 mm |
| Package depth | 567 mm |
| Package height | 892 mm |
| Package weight | 75 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
