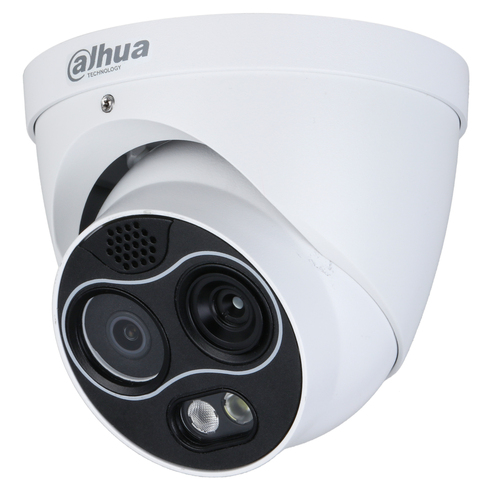

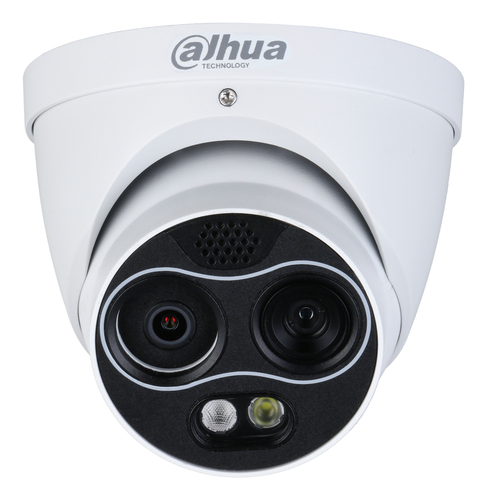

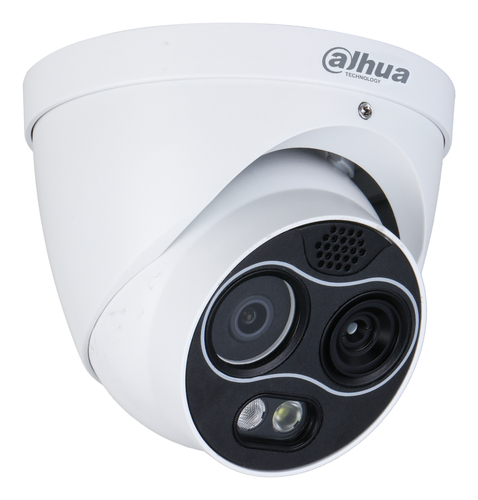

Thermal Network Mini Hybrid Eyeball Camera
Model TPC-DF1241-T-S8Part no. TPC-DF1241-TB3F4-DWS8V1
88 specifications
- ConnectivityWired
- TypeIP security camera
- Weight850 g
- ColourWhite
- Form factorDome
- Minimum illumination0 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 850 g
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- TPC-DF1241-T-S8
- Part number
- TPC-DF1241-TB3F4-DWS8V1
- Also known as
- Dahua Technology Thermal Network Mini Hybrid Eyeball Camera
Specifications
88 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Thermal sensitivity (NETD) | 40 mK |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Horizontal field of view (thermal module) | 50.6° |
| Vertical field of view (thermal module) | 37.8° |
| Lens viewing angle, horizontal | 71.2° |
| Lens viewing angle, vertical | 52° |
| Pixel pitch (thermal module) | 12 µm |
| White balance | Auto, Manual, Indoor, Outdoor, Street lamp, Natural |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30000 - 1 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
| Sensor type (thermal module) | Noise equivalent temperature difference (NETD) |
| Effective sensor resolution (thermal module) | 256 x 192 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Digital zoom (thermal module) | 16x |
| Maximum aperture number | 1.6 |
| Aperture number (thermal module) | 1 |
| Closest focusing distance | 1 m |
| Fixed focal length | 4 mm |
| Infrared spectral band | 8 - 14 µm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2336 x 1752 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.265, H.264, H.264H, M-JPEG |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Voice codecs | G.711a, G.711Mu, PCM |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Networking standards | IEEE 802.1x |
| Supported network protocols | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Number of users | 10 user(s) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 2 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Temperature measurement accuracy | 2 °C |
| Temperature measurement range | -20 - 550 °C |
| Password protection | Yes |
| HTTPS encryption | Yes |
| Human and vehicle targets classification | Yes |
| Intelligent Video Surveillance (IVS) system features | Tripwire, Intrusion, Heat map |
Power
| Specification | Value |
|---|---|
| Power source type | PoE, DC |
| Power consumption (typical) | 4.6 W |
| Power consumption (max) | 6.8 W |
| Power consumption (Power over Ethernet (PoE)) | 5.7 W |
| DC output voltage | 12 |
| DC output current | 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 112 mm |
| Diameter | 12.2 cm |
| Weight | 850 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 155 mm |
| Package depth | 155 mm |
| Package height | 135 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
Technical details
| Specification | Value |
|---|---|
| Audio input | 1 |
Other features
| Specification | Value |
|---|---|
| Audio output | 1 |
| Browser supported | Google / Firefox |
| Data transfer rate | 100 Mbit/s |
