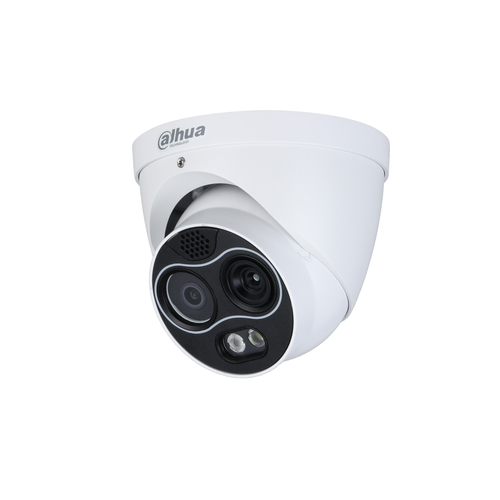

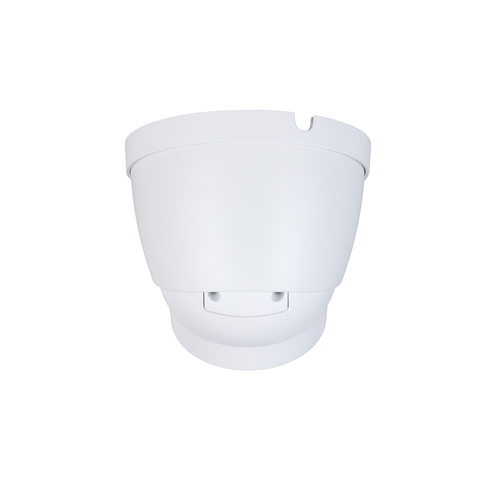

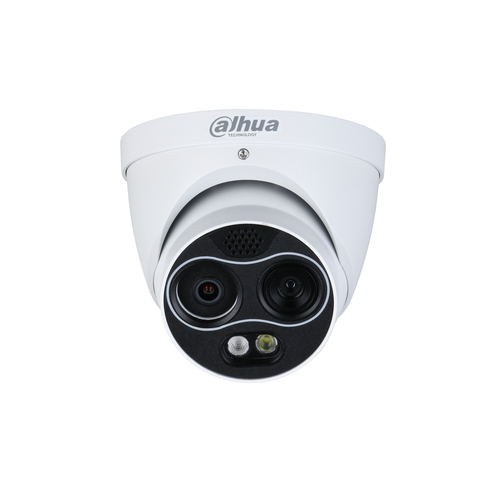

WizSense TPC-DF1241-D3F4 Spherical IP security camera Outdoor
2336 x 1752 pixels Ceiling/Wall/Pole
Model TPC-DF1241-D3F4Part no. DH-TPC-DF1241-D3F4
88 specifications
- ConnectivityWired
- TypeIP security camera
- Weight850 g
- ColourWhite
- Form factorSpherical
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 850 g
- Colour
- White
- Form factor
- Spherical
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- TPC-DF1241-D3F4
- Part number
- DH-TPC-DF1241-D3F4
- Also known as
- Dahua Technology WizSense TPC-DF1241-D3F4 Spherical IP security camera Outdoor 2336 x 1752 pixels Ceiling/Wall/Pole
Specifications
88 specifications in 18 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| Thermal module | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Thermal sensitivity (NETD) | 50 mK |
| Certification | CE: EN55032:2015; EN61000-3-2:2014 FCC: CFR 47 FCC Part15 subpart B; ANSI C63.4-2014 |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling/Wall/Pole |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Field of view (FOV) angle | 92.6° |
| Field of view (FOV) angle (thermal module) | 50.6 x 37.8° |
| Lens viewing angle, horizontal | 71.2° |
| Lens viewing angle, vertical | 52° |
| Lens viewing angle, diagonal | 92.6° |
| Camera pixel size | 12 µm |
| White balance | Auto, Indoor, Manual, Natural, Outdoor, Street lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/30000 - 1 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.7 mm (1 / 2.7") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 2 |
| Zoom capability | Yes |
| Digital zoom | 16x |
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Aperture number (thermal module) | 1 |
| Closest focusing distance | 1 m |
| Fixed focal length | 4 mm |
| Fixed focal length (thermal module) | 3.5 mm |
| Infrared spectral band | 8 - 14 µm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2336 x 1752 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264B, H.264H, H.264M, H.265 |
| Supported graphics resolutions | 352 x 288, 640 x 480 (VGA), 704 x 576, 1024 x 768 (XGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080) |
| Frame rate | 30 fps |
| Video intelligence analytic | Yes |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Gigabit Ethernet |
| Supported network protocols | HTTPS; HTTP; TCP; ARP; RTSP; RTP; UDP; RTCP; SMTP; FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; SNMP; QoS; UPnP; NTP |
| Number of users | 10 user(s) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| RS-485 ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 1 |
| Alarm output channels | 1 |
| Fire detection | Yes |
| Intelligent Video Surveillance (IVS) system features | Intrusion, Tripwire |
Management features
| Specification | Value |
|---|---|
| Web browser | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 6.5 W |
| Power consumption (max) | 13 W |
| DC output voltage | 12 |
| DC output current | 1.2 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -30 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 122 mm |
| Depth | 122 mm |
| Height | 112 mm |
| Weight | 850 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 155 mm |
| Package depth | 155 mm |
| Package height | 135 mm |
| Package weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
