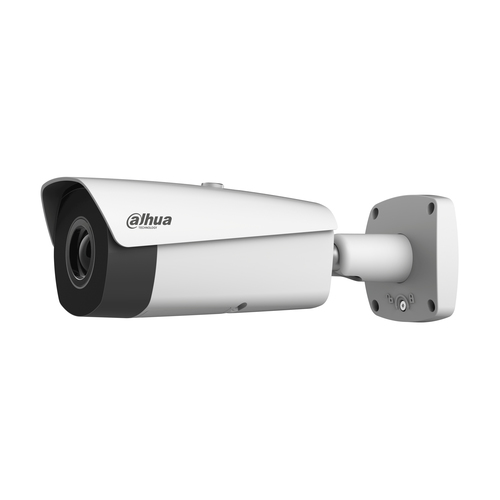

Dahua Technology Pro TPC-BF5401-TB25-S2 security camera Bullet IP security camera Indoor & outdoor Wall
Dahua Technology

Pro TPC-BF5401-TB25-S2 security camera Bullet IP security camera Indoor & outdoor Wall

Model TPC-BF5401-TB25-S2

69 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.5 kg
  • ColourWhite
  • Form factorBullet
  • Field of view (FOV) angle (thermal module)15.5 x 11.6°
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.5 kg
Colour
White
Form factor
Bullet
Field of view (FOV) angle (thermal module)
15.5 x 11.6°
Brand
Dahua Technology
Model
TPC-BF5401-TB25-S2
Part number
TPC-BF5401-TB25-S2
Also known as
Dahua Technology Pro TPC-BF5401-TB25-S2 security camera Bullet IP security camera Indoor & outdoor Wall

Specifications

69 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Thermal moduleYes
Thermal sensitivity (NETD)40 mK
CertificationCE (EN 60950: 2000) FCC (FCC Part 15 SubpartB )

Design

Form factorBullet
Mounting typeWall
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Field of view (FOV) angle (thermal module)15.5 x 11.6°
Lens viewing angle, horizontal53.7°
Lens viewing angle, vertical39.7°
Camera pixel size17 µm

Image sensor

Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
Effective sensor resolution (thermal module)400 x 300 pixels

Lens system

Number of lenses1
Digital zoom4x
Focal length range7.5 mm
Aperture number (thermal module)1
Fixed focal length7.5 mm
Fixed focal length (thermal module)25 mm

Video

Video formats supportedH.264, H.265
Video compression formatsH.264, H.265
Supported graphics resolutions400 x 300, 640 x 512, 1280 x 1024 (SXGA)
Frame rate30 fps
Bit rate640 - 8192
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
BNC output ports1

Security

Alarm input channels2
Alarm output channels2
Fire detectionYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Privacy protectionYes
Video motion detectionYes

Management features

Management softwareSmartPSS, DSS

Power

Power source typeDC, PoE
Power consumption (max)13 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width103 mm
Depth291 mm
Height97 mm
Weight1.5 kg

Packaging data

Package weight1.9 kg

Packaging content

Number of cameras1
