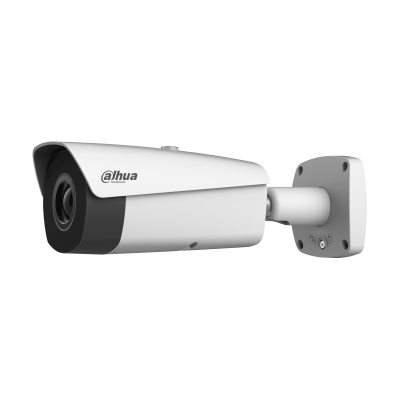

Dahua Technology Pro TPC-BF5401-T-S2 Bullet IP security camera Indoor & outdoor Wall
Dahua Technology

Pro TPC-BF5401-T-S2 Bullet IP security camera Indoor & outdoor Wall

Model TPC-BF5401-T-S2Part no. DHI-TPC-BF5401-TB7-BM-S2EAN 6923172530066

64 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight1.5 kg
  • ColourBlack, White
  • Form factorBullet
  • Lens viewing angle, horizontal11.1°
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
1.5 kg
Colour
Black, White
Form factor
Bullet
Lens viewing angle, horizontal
11.1°
Brand
Dahua Technology
Model
TPC-BF5401-T-S2
Part numbers
DHI-TPC-BF5401-TB7-BM-S2, DHI-TPC-BF5401-TB25-BM-S2
EAN / UPC
6923172530066, 6923172530080
Also known as
Dahua Technology Pro TPC-BF5401-T-S2 Bullet IP security camera Indoor & outdoor Wall

Specifications

64 specifications in 16 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Thermal moduleYes
Thermal sensitivity (NETD)40 mK
CertificationCE (EN 60950: 2000) FCC (FCC Part 15 SubpartB )

Design

Form factorBullet
Mounting typeWall
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP67

Camera

Lens viewing angle, horizontal11.1°
Lens viewing angle, vertical8.3°
Camera pixel size17 µm

Image sensor

Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
Effective sensor resolution (thermal module)400 x 300 pixels

Lens system

Number of lenses1
Digital zoom4x
Focal length range7.5 - 35 mm
Fixed focal length1 mm

Video

Video formats supportedH.264, H.265
Video compression formatsH.264, H.265
Supported graphics resolutions400 x 300, 640 x 512, 1280 x 1024 (SXGA)
Supported video modes720p
Frame rate30 fps
Bit rate640 ~ 8192
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711 A-law, G.711 μ-law, PCM

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1

Security

Alarm input channels2
Alarm output channels2
Fire detectionYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Privacy protectionYes
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (max)13 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%

Weight & dimensions

Width103 mm
Depth291 mm
Height97 mm
Weight1.5 kg

Packaging data

Package weight1.9 kg

Packaging content

Number of cameras1
