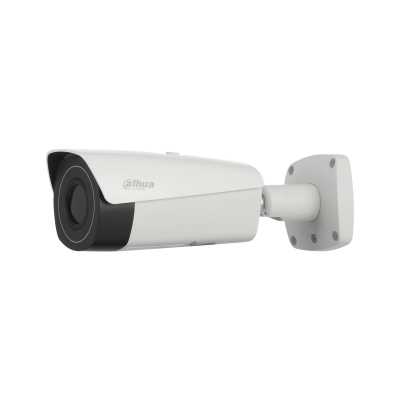

Pro TPC-BF5401-B25-BM-S2 Bullet IP security camera Indoor & outdoor Wall
Model TPC-BF5401-B25-BM-S2Part no. DHI-TPC-BF5401-B25-BM-S2EAN 6923172530042
45 specifications
- ConnectivityWired
- TypeIP security camera
- Weight1.5 kg
- ColourWhite
- Form factorBullet
- Field of view (FOV) angle (thermal module)15.5 x 11.6°
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1.5 kg
- Colour
- White
- Form factor
- Bullet
- Field of view (FOV) angle (thermal module)
- 15.5 x 11.6°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- TPC-BF5401-B25-BM-S2
- Part number
- DHI-TPC-BF5401-B25-BM-S2
- EAN / UPC
- 6923172530042, 8435280913986
- Also known as
- Dahua Technology Pro TPC-BF5401-B25-BM-S2 Bullet IP security camera Indoor & outdoor Wall
Specifications
45 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Thermal module | Yes |
| Thermal sensitivity (NETD) | 40 mK |
| Certification | CE (EN 60950: 2000) FCC (FCC Part 15 SubpartB ) |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Field of view (FOV) angle (thermal module) | 15.5 x 11.6° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type (thermal module) | Vanadium Oxide Uncooled Focal Plane Arrays |
| Effective sensor resolution (thermal module) | 400 x 300 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Aperture number (thermal module) | 1 |
| Fixed focal length (thermal module) | 25 mm |
Video
| Specification | Value |
|---|---|
| Video compression formats | H.264, H.265 |
| Bit rate | 640 ~ 8192 |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 2 |
| Alarm output channels | 2 |
| Fire detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (max) | 13 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 103 mm |
| Depth | 291 mm |
| Height | 97 mm |
| Weight | 1.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
