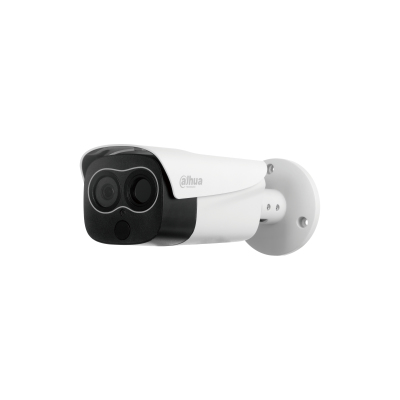

TPC-BF2120-T security camera Bullet IP security camera Wall
Model TPC-BF2120-T
62 specifications
- ConnectivityWired
- TypeIP security camera
- Weight1 kg
- ColourWhite
- Form factorBullet
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 1 kg
- Colour
- White
- Form factor
- Bullet
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- TPC-BF2120-T
- Part number
- TPC-BF2120-T
- Also known as
- Dahua Technology TPC-BF2120-T security camera Bullet IP security camera Wall
Specifications
62 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Connectivity technology | Wired |
| Thermal module | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE |
Design
| Specification | Value |
|---|---|
| Form factor | Bullet |
| Mounting type | Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| White balance | Auto, Manual |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/1 ~ 1/30,000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 2 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1944 x 1092 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Maximum aperture number | 2 |
| Fixed focal length | 4 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 35 m |
| LED type | IR |
| Number of illumination LEDs | 1 |
Video
| Specification | Value |
|---|---|
| Total megapixels | 2 MP |
| Video compression formats | H.264, M-JPEG |
| Supported video modes | 720p, 1080p |
| Frame rate | 25 fps |
| Noise reduction | Yes |
| Back Light Compensation (BLC) | Yes |
| Bit rate | H.264: 640 ~ 8192Kbps |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.711 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
Security
| Specification | Value |
|---|---|
| Temperature sensor | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Intrusion, Missing object, Tripwire |
Management features
| Specification | Value |
|---|---|
| Management software | Smart PSS, DSS |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 12 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 90.4 mm |
| Height | 90.4 mm |
| Length | 238.6 mm |
| Weight | 1 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
