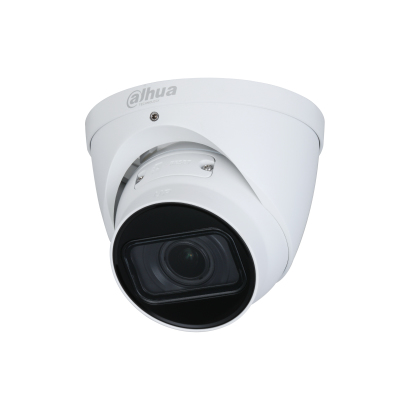

Dahua Technology Technology Lite 5MP IR
Dahua Technology

Technology Lite 5MP IR

Model Technology Lite 5MP IRPart no. DH-IPC-HDW2531TP-ZS-27135-S2EAN 6939554977817

94 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight690 g
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
IP security camera
Weight
690 g
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
Technology Lite 5MP IR
Part number
DH-IPC-HDW2531TP-ZS-27135-S2
EAN / UPC
6939554977817
Also known as
Dahua Technology Lite Technology 5MP IR Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling

Specifications

94 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationEN 62368-1, FCC, UL60950-1 CAN/CSA C22.2

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
Housing materialMetal
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.008 lx
Angle of rotation360°
Lens viewing angle, horizontal100 - 26°
Lens viewing angle, vertical72 - 20°
Lens viewing angle, diagonal133 - 3°
Tilt angle range0 - 78°
Pan range0 - 360°
White balanceAuto, Custom modes, Manual, Natural, Outdoor, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s
Adjustment shutter speedAuto/Manual

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes
Number of effective pixels (H x V)2592 x 1944 pixels

Lens system

Number of lenses1
Focal length range2.7 - 13.5 mm
Identify distance6.4 m
Maximum aperture number1.5
Closest focusing distance0.8 m
Detect distance (tele)220 m
Detect distance (wide)64 m
Identify distance (tele)22 m
Identify distance (wide)6.4 m
Observe distance (tele)88 m
Observe distance (wide)25.6 m
Recognize distance (tele)44 m
Recognize distance (wide)12.8 m

Night vision

Night visionYes
Night vision distance40 m
LED typeIR
Number of illumination LEDs2

Video

Maximum resolution2688 x 1520 pixels
Total megapixels5 MP
Video compression formatsH.264, H.264B, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2592 x 1944, 2688 x 1520
Supported video modes240p, 480p, 576p, 720p, 960p, 1080p, 1520p, 1944p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate32 Kbps - 8192 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Signal-to-Noise Ratio (SNR)56 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.1x, IEEE 802.3af
Supported network protocolsIPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, UPnP, NTP, ICMP, IGMP, NFS, PPPoE, Bonjou
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory256 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresIntrusion, Tripwire
MirrorYes
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)7.3 W
DC output voltage12

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Storage temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Diameter12.2 cm
Length108.3 mm
Weight690 g

Packaging data

Package weight880 g

Packaging content

Number of cameras1
