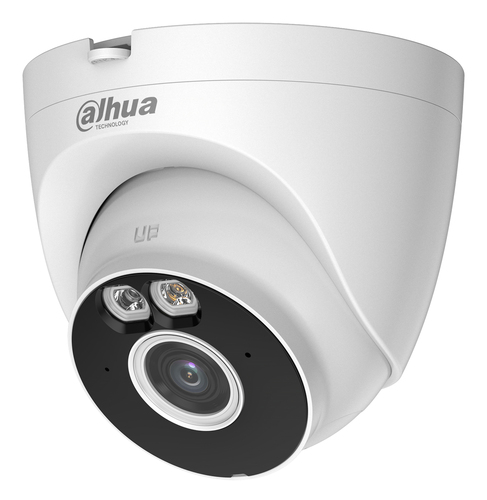

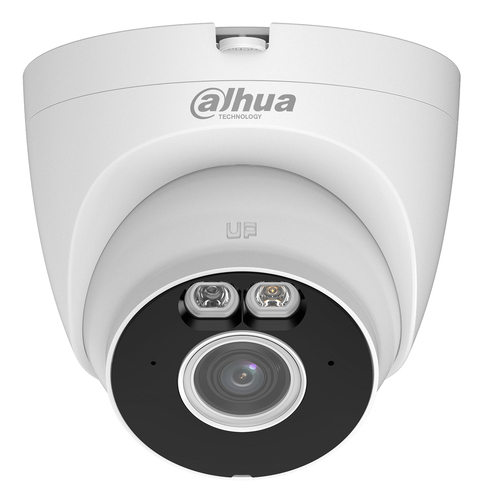

T3A-IL-0280B security camera Turret IP security camera Outdoor
2304 x 1296 pixels Ceiling
Model T3A-IL-0280BEAN 6939554916984
62 specifications
- ConnectivityWireless
- TypeIP security camera
- Weight320 g
- ColourWhite
- Form factorTurret
- Camera pan controlYes
Overview
- Connectivity
- Wireless
- Type
- IP security camera
- Weight
- 320 g
- Colour
- White
- Form factor
- Turret
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- T3A-IL-0280B
- Part number
- T3A-IL-0280B
- EAN / UPC
- 6939554916984
- Also known as
- Dahua Technology T3A-IL-0280B security camera Turret IP security camera Outdoor 2304 x 1296 pixels Ceiling
Specifications
62 specifications in 19 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wireless |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal, Plastic |
| International Protection (IP) code | IP67 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.0005 lx |
| Angle of rotation | 360° |
| Lens viewing angle, horizontal | 103° |
| Lens viewing angle, vertical | 55° |
| Lens viewing angle, diagonal | 123° |
| Tilt angle range | 0 - 78° |
| Pan range | 0 - 360° |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Fixed focus | Yes |
| Maximum aperture number | 1.6 |
| Fixed focal length | 2.8 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 2 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2304 x 1296 pixels |
| Total megapixels | 3 MP |
| Video compression formats | H.264, H.264B, H.264H, H.265 |
| Video recording | Yes |
| Frame rate | 30 fps |
| Video streaming | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | G.711 A-law, G.711 μ-law, PCM |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Ethernet interface type | Fast Ethernet |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 6 (802.11ax) |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
Security
| Specification | Value |
|---|---|
| Human and vehicle targets classification | Yes |
Management features
| Specification | Value |
|---|---|
| Reset button | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 1.9 W |
| Power consumption (max) | 4.9 W |
| DC output voltage | 12 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Diameter | 11 cm |
| Length | 102.2 mm |
| Weight | 320 g |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
| Manual | Yes |
