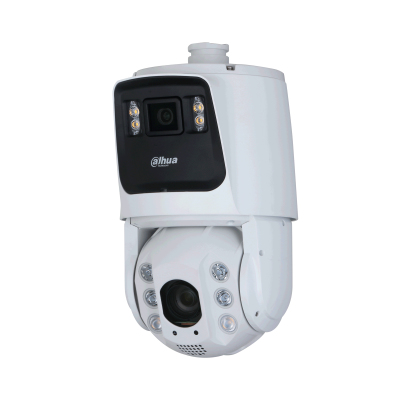

Dahua Technology WizMind SDT7C424-4F-ZBZJ-APV-0400 security camera Turret IP security camera Indoor & outdoor
Dahua Technology

WizMind SDT7C424-4F-ZBZJ-APV-0400 security camera Turret IP security camera Indoor & outdoor

2688 x 1520 pixels Ceiling/wall

Model SDT7C424-4F-ZBZJ-APV-0400

119 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight5.6 kg
  • ColourBlack, White
  • Form factorTurret
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
5.6 kg
Colour
Black, White
Form factor
Turret
Brand
Dahua Technology
Model
SDT7C424-4F-ZBZJ-APV-0400
Part number
SDT7C424-4F-ZBZJ-APV-0400
Also known as
Dahua Technology WizMind SDT7C424-4F-ZBZJ-APV-0400 security camera Turret IP security camera Indoor & outdoor 2688 x 1520 pixels Ceiling/wall

Specifications

119 specifications in 20 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour
PTZ protocolsPelco-P/D, DH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorTurret
Mounting typeCeiling/wall
Product colourBlack, White
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0001 lx
Lens viewing angle, horizontal95°
Lens viewing angle, vertical52.5°
Lens viewing angle, diagonal116°
Tilt angle range-20 - 90°
Pan range0 - 360°
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Number of effective pixels (H x V)2560 x 1440 pixels

Panoramic camera

Sensor type (panoramic camera)CMOS
Number of sensors (panoramic camera)1
Optical sensor size (panoramic camera)25.4 / 1.8 mm (1 / 1.8")
Camera shutter type (panoramic camera)Electronic
Camera shutter speed (panoramic camera)1/1 - 1/30000 s
Minimum illumination (panoramic camera)0.0005 lx
Signal-to-Noise Ratio (SNR) (panoramic camera)55 dB
Closest focusing distance (panoramic camera)0.2 m
Detect distance (wide) (panoramic camera)102 m
Fixed focal length (panoramic camera)4 mm
Identify distance (wide) (panoramic camera)10.2 m
Maximum aperture number (panoramic camera)1
Observe distance (wide) (panoramic camera)40.8 m
Recognize distance (wide) (panoramic camera)20.4 m
Supported graphics resolutions (panoramic camera)352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
Supported video modes (panoramic camera)720p, 960p, 1080p
Viewing angle, horizontal (panoramic camera)57°
Viewing angle, vertical (panoramic camera)31°
White balance (panoramic camera)Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp

Lens system

Zoom capabilityYes
Optical zoom24x
Digital zoom16x
Focal length range10 - 50 mm
Auto focusYes
FocusMotorized/Manual
Maximum aperture number3.6
Minimum aperture number1.6
Closest focusing distance0.5 m
Detect distance (tele)1928 m
Identify distance (tele)192.8 m
Observe distance (tele)771.2 m
Recognize distance (tele)385.6 m

Night vision

Night visionYes
LED typeIR

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264M, H.264, H.264+, H.264B, H.265, H.265+, M-JPEG
Supported graphics resolutions1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
Supported video modes480p, 576p, 720p, 960p, 1080p, 1440p, 1520p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Bit rateH.265: 1024Kbps–7936Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio detectionYes

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsHTTP, HTTPS, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, Qos, FTP, UPnP, ICMP, SNMP, SNMPv, 1/v2c/v3 (MIB-2), IGMP, ARP, RTCP, RTP, PPPoE, TCP
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory1000 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
Active tampering alarmYes
Human and vehicle targets classificationYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, People counting, Tripwire
Video motion detectionYes

Management features

Web-based managementYes
Web browserYes
Smartphone/tablet remote supportYes
Management softwareSmartPSS, DSS, NVR

Power

Power source typeDC
Power consumption (typical)20 W
Power consumption (max)45 W
DC output voltage36
DC output current2.23 A

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, Windows Phone, iOS, iPadOS

Weight & dimensions

Height385 mm
Diameter20.2 cm
Weight5.6 kg

Packaging data

Package width510 mm
Package depth312 mm
Package height312 mm
Package weight7.15 kg

Packaging content

Number of cameras1
