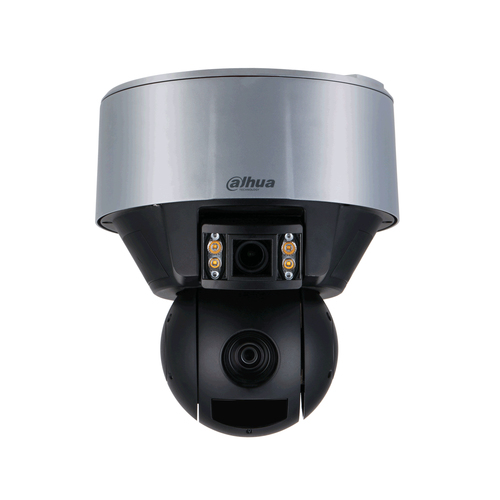

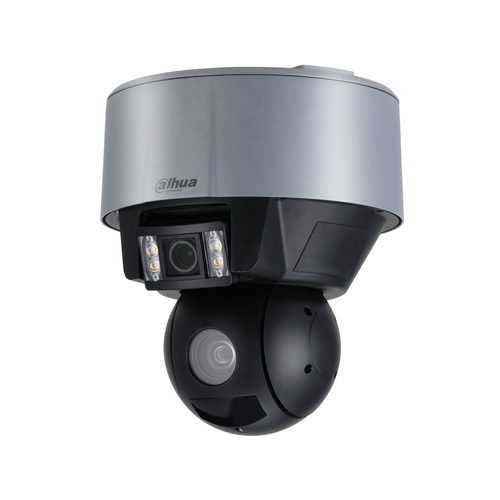

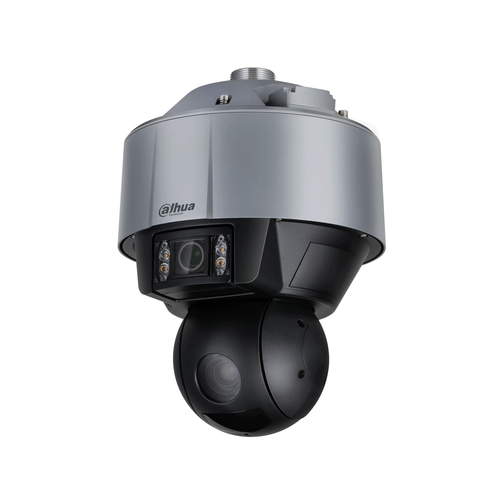

Dahua Technology WizMind SDT5X425-4Z4-QA-2812 Bulb CCTV security camera Outdoor
Dahua Technology

WizMind SDT5X425-4Z4-QA-2812 Bulb CCTV security camera Outdoor

2688 x 1520 pixels Ceiling/Wall/Pole

Model SDT5X425-4Z4-QA-2812Part no. DH-SDT5X425-4Z4-QA-2812EAN 6923172504722

114 specifications
  • Storage8 GB
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight9 kg
  • ColourBlack
  • Form factorBulb
See all specifications

Overview

Storage
8 GB
Connectivity
Wired
Type
CCTV security camera
Weight
9 kg
Colour
Black
Form factor
Bulb
Brand
Dahua Technology
Model
SDT5X425-4Z4-QA-2812
Part number
DH-SDT5X425-4Z4-QA-2812
EAN / UPC
6923172504722
Also known as
Dahua Technology WizMind SDT5X425-4Z4-QA-2812 Bulb CCTV security camera Outdoor 2688 x 1520 pixels Ceiling/Wall/Pole

Specifications

114 specifications in 20 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour
PTZ protocolsPelco-P/D, DH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB

Design

Form factorBulb
Mounting typeCeiling/Wall/Pole
Product colourBlack
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0001 lx
Field of view (FOV) angle64°
Angle of rotation180°
Tilt angle range10 - 90°
Tilt manual speed0.1 - 200 °/sec
Tilt preset speed200 °/sec
Pan range0 - 305°
Pan manual speed0.1 - 400 °/sec
Pan preset speed360 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Panoramic camera

Sensor type (panoramic camera)CMOS
Maximum resolution (panoramic camera)2688 x 1520 pixels
Camera shutter type (panoramic camera)Electronic
Camera shutter speed (panoramic camera)1 - 1/30000 s
Minimum illumination (panoramic camera)0.0001 lx
Signal-to-Noise Ratio (SNR) (panoramic camera)55 dB
Bit rate control (panoramic camera)Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Closest focusing distance (panoramic camera)2.5 m
Detect distance (wide) (panoramic camera)129 m
Fixed focal length (panoramic camera)12 mm
Focal length range (panoramic camera)2.8 - 12 mm
Identify distance (wide) (panoramic camera)12.2 m
Maximum aperture number (panoramic camera)2
Minimum aperture number (panoramic camera)1.3
Observe distance (wide) (panoramic camera)51.3 m
Recognize distance (wide) (panoramic camera)25.4 m
Viewing angle, horizontal (panoramic camera)99.2°
Viewing angle, vertical (panoramic camera)59.7°
White balance (panoramic camera)Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Detect distance1724 m
Observe distance690 m
Recognize distance345 m
Focal length range5.4 - 135 mm
Auto focusYes
FocusManual
Identify distance172 m
Maximum aperture number4
Minimum aperture number1.6
Closest focusing distance7 m
Fixed focal length135 mm

Night vision

Night visionYes

Video

Maximum resolution2688 x 1520 pixels
Total megapixels4 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Supported graphics resolutions352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)55 dB
Bit rate range512 - 13056 Kbit/s

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsTCP; FTP; RTMP; IPv6; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; DDNS; UPnP; ICMP; UDP; IGMP; HTTP; DHCP; SMTP; SNMP v1/v2c/v3 (MIB-2); QoS; RTSP; ARP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDYes
HDD capacity8 GB
Built-in SSDYes
SSD capacity4 GB
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Tripwire, Vehicle detection
Video motion detectionYes

Management features

Web browserYes
Management softwareDSS; NVR; Smart PSS

Power

Power source typeDC
Power consumption (typical)21 W
Power consumption (max)40 W
DC output voltage36
DC output current2.23 A

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width385 mm
Diameter27.7 cm
Weight9 kg

Packaging data

Package weight13.8 kg

Packaging content

Number of cameras1
