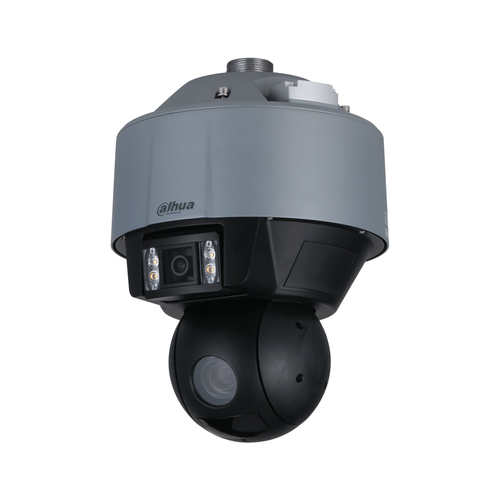

Dahua Technology WizMind SDT5X225-2F-QA-0600 Bulb CCTV security camera Outdoor
Dahua Technology

WizMind SDT5X225-2F-QA-0600 Bulb CCTV security camera Outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model SDT5X225-2F-QA-0600Part no. DH-SDT5X225-2F-QA-0600EAN 6923172529398

110 specifications
  • Storage8 GB
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight9 kg
  • ColourBlack
  • Form factorBulb
See all specifications

Overview

Storage
8 GB
Connectivity
Wired
Type
CCTV security camera
Weight
9 kg
Colour
Black
Form factor
Bulb
Brand
Dahua Technology
Model
SDT5X225-2F-QA-0600
Part number
DH-SDT5X225-2F-QA-0600
EAN / UPC
6923172529398
Also known as
Dahua Technology WizMind SDT5X225-2F-QA-0600 Bulb CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

110 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour
PTZ protocolsPelco-P/D, DH-SD
Tour recordingYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Luminous flux0.0005 lm
Dynamic range120 dB
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014

Design

Form factorBulb
Mounting typeCeiling/Wall/Pole
Product colourBlack
International Protection (IP) codeIP67

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Field of view (FOV) angle66.5°
Angle of rotation180°
Tilt angle range-10 - 90°
Tilt manual speed0.1 - 50 °/sec
Tilt preset speed240 °/sec
Pan range0 - 305°
Pan manual speed0.1 - 120 °/sec
Pan preset speed430 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Panoramic camera

Sensor type (panoramic camera)CMOS
Optical sensor size (panoramic camera)25.4 / 2.8 mm (1 / 2.8")
Maximum resolution (panoramic camera)1920 x 1080 pixels
Camera shutter type (panoramic camera)Electronic
Camera shutter speed (panoramic camera)1 - 1/30000 s
Minimum illumination (panoramic camera)0.0005 lx
Signal-to-Noise Ratio (SNR) (panoramic camera)55 dB
Closest focusing distance (panoramic camera)0.2 m
Detect distance (wide) (panoramic camera)88.3 m
Focal length range (panoramic camera)6 mm
Identify distance (wide) (panoramic camera)8.8 m
Maximum aperture number (panoramic camera)1.6
Observe distance (wide) (panoramic camera)35.3 m
Recognize distance (wide) (panoramic camera)17.7 m
White balance (panoramic camera)Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp

Lens system

Number of lenses1
Optical zoom25x
Digital zoom16x
Detect distance1613.8 m
Observe distance645.5 m
Recognize distance322.8 m
Focal length range4.8 - 120 mm
Auto focusYes
FocusManual
Identify distance161.4 m
Maximum aperture number3.5
Minimum aperture number1.6
Closest focusing distance1.5 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 960p, 1080p
Frame rate60 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.711 A-law, G.722.1, G.726, G.729
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsHTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDYes
HDD capacity8 GB
Built-in SSDYes
SSD capacity4 GB
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Security

Alarm input channels2
Alarm output channels1
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Tripwire, Vehicle detection
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; NVR

Power

Power source typeDC
Power consumption (typical)19 W
Power consumption (max)31 W
DC output voltage36
DC output current2.23 A

Operational conditions

Operating temperature (T-T)-40 - 65 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width385 mm
Depth277 mm
Weight9 kg
Weight (with stand)13.8 kg

Packaging content

Number of cameras1
