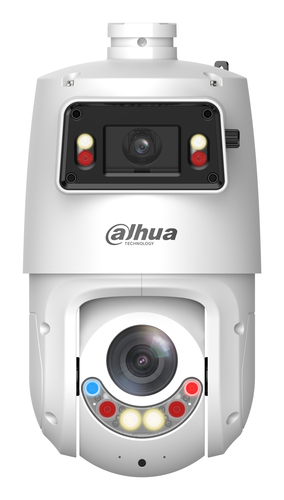

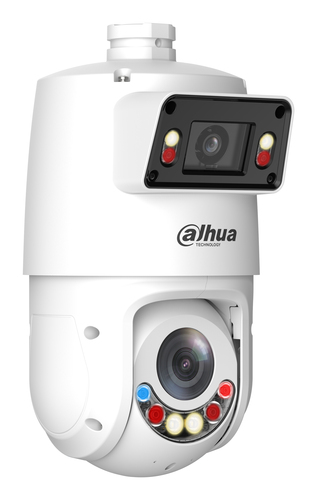

Dahua Technology SDT4E425-4F-GB-A-PV1-S2 security camera IP security camera Indoor & outdoor

Dahua Technology

SDT4E425-4F-GB-A-PV1-S2 security camera IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/Wall/Pole

Model SDT4E425-4F-GB-A-PV1-S2EAN 6939554936432

103 specifications

Memory2048 MB
ConnectivityWired
TypeIP security camera
Weight3.41 kg
ColourWhite
Mounting typeCeiling/Wall/Pole

See all specifications

Overview

Memory: 2048 MB
Connectivity: Wired
Type: IP security camera
Weight: 3.41 kg
Colour: White
Mounting type: Ceiling/Wall/Pole

Brand: Dahua Technology
Category: Security Camera
Model: SDT4E425-4F-GB-A-PV1-S2
Part number: SDT4E425-4F-GB-A-PV1-S2
EAN / UPC: 6939554936432
Also known as: Dahua Technology SDT4E425-4F-GB-A-PV1-S2 security camera IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/Wall/Pole

Specifications

103 specifications in 18 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
PTZ modes	8 Tour, 5 Pattern, 5 Scan
Auto-tracking	Yes
Auto patrol mode	Yes
Tour recording	Yes
Preset points	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes
Built-in light	Yes
Dynamic range	120 dB

Design

Specification	Value
Mounting type	Ceiling/Wall/Pole
Product colour	White
International Protection (IP) code	IP66

Camera

Specification	Value
Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.001 lx
Lens viewing angle, horizontal	101°
Lens viewing angle, vertical	53°
Lens viewing angle, diagonal	120°
Tilt angle range	-15 - 90°
Pan range	0 - 360°
Auto flip	Yes
White balance	Auto, Indoor, Outdoor, Manual, Sodium lamp, Street lamp, Natural
Number of Privacy masking areas	24

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes

Lens system

Specification	Value
Zoom capability	Yes
Optical zoom	25x
Detect distance	100 m
Observe distance	40 m
Recognize distance	20 m
Auto focus	Yes
Focus	Manual
Identify distance	10 m

Night vision

Specification	Value
Night vision	Yes
Night vision distance	100 m
LED type	IR

Video

Specification	Value
Maximum resolution	2560 x 1440 pixels
Total megapixels	4 MP
Video compression formats	H.265+, H.265, H.264B, H.264H, H.264M, H.264+, M-JPEG
Video recording	Yes
Frame rate	30 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Image stabilizer	Yes
Gain control type	Auto/Manual
Back Light Compensation (BLC)	Yes
Bit rate control	Constant Bit Rate (CBR), Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)	Yes
Highlight Compensation (HLC)	Yes
Region of Interest (ROI) encoding	Yes

Audio

Specification	Value
Built-in speaker(s)	Yes
Audio system	2-way
Audio input channels	1.0 channels
Audio output channels	1.0 channels
Audio formats supported	PCM, G.711 A-law, G.711 μ-law, G.726, MPEG-2, G.722.1, G.729
Signal-to-Noise Ratio (SNR)	55 dB
Built-in microphone	Yes
Number of microphones	2

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Ethernet interface type	Fast Ethernet
Networking standards	IEEE 802.1x, IEEE 802.3at
Supported network protocols	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP, DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP, SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour, SMB, NFS
Number of users	20 user(s)
Quality of Service (QoS) support	Yes
Streaming method	Unicast, Multicast

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Maximum memory card size	512 GB
ROM capacity	4096 MB
RAM capacity	2048 MB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1
DC-in jack	Yes

Security

Specification	Value
Alarm input channels	2
Alarm output channels	1
HTTPS encryption	Yes
Human and vehicle targets classification	Yes
Intelligent Video Surveillance (IVS) system features	Tripwire, Intrusion, Abandoned object, Missing object
Network access storage (NAS)	Yes
Video motion detection	Yes

Power

Specification	Value
Power source type	DC, PoE
Power consumption (typical)	14 W
Power consumption (max)	25 W
DC output voltage	12
DC output current	3 A

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 65 °C

System requirements

Specification	Value
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Width	184.4 mm
Height	304.6 mm
Length	160 mm
Weight	3.41 kg

Sustainability

Specification	Value
Compliance certificates	CE

Packaging content

Specification	Value
Number of cameras	1
Manual	Yes
