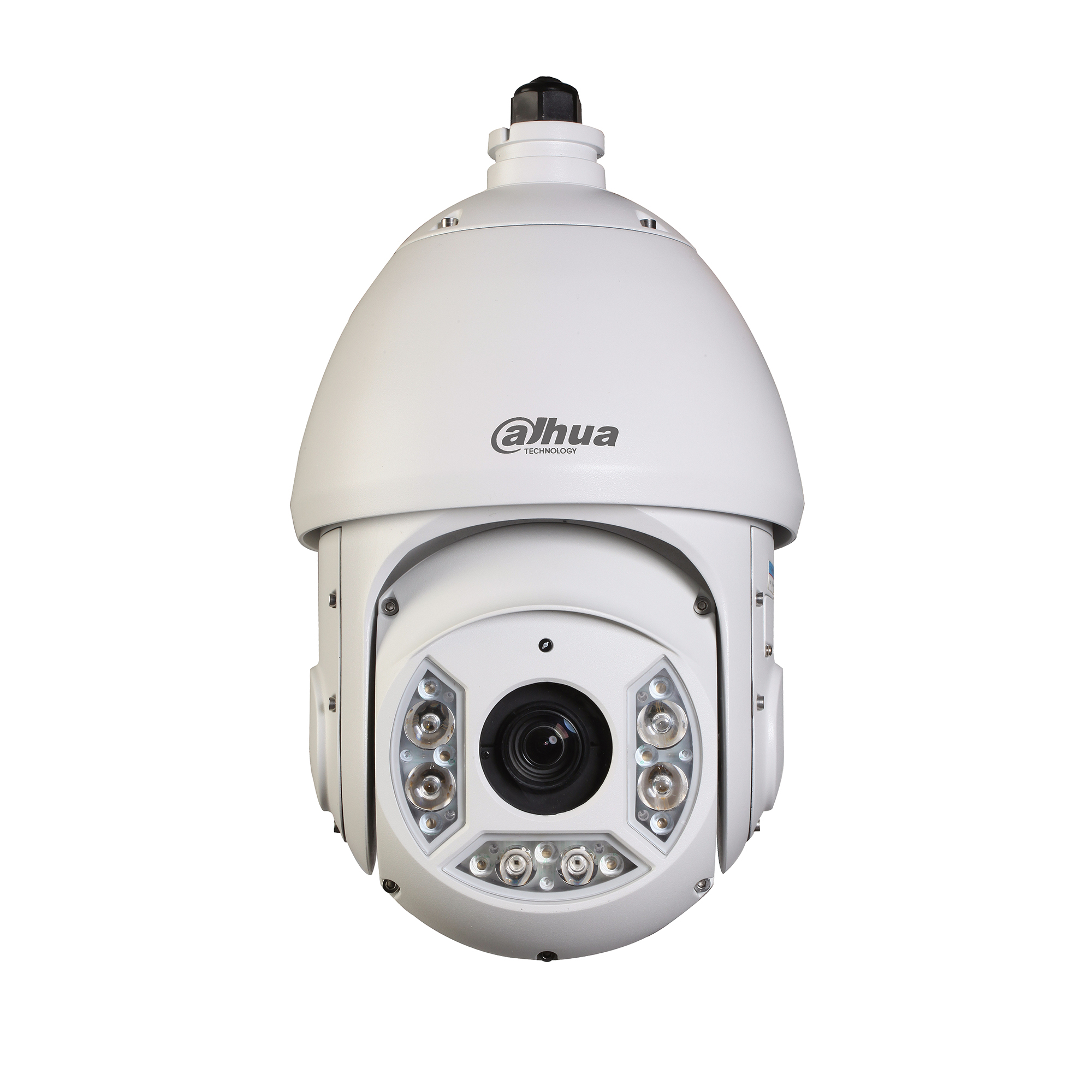

Dahua Technology Pro SD6C430IHC security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Pro SD6C430IHC security camera Dome IP security camera Indoor & outdoor

2592 x 1520 pixels Ceiling/wall

Model SD6C430IHC

92 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight7.8 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
7.8 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
SD6C430IHC
Part number
SD6C430IHC
Also known as
Dahua Technology Pro SD6C430IHC security camera Dome IP security camera Indoor & outdoor 2592 x 1520 pixels Ceiling/wall

Specifications

92 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modesAuto scan, Auto pan, Preset point
PTZ protocolsDH-SD, Pelco-P/D
Auto-trackingYes
Tour recordingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresWater resistant
International Protection (IP) codeIP66
Fog proofYes

Camera

Minimum illumination0.05 lx
Lens viewing angle, horizontal60°
Tilt angle range-15 - 90°
Tilt preset speed200 °/sec
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed160 °/sec
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Preset programs quantity300
Camera shutter speed1/1 - 1/300000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 3 mm (1 / 3")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom30x
Digital zoom16x
Detect distance2700 m
Observe distance1080 m
Recognize distance540 m
Focal length range4.5 - 135 mm
Auto focusYes
FocusMotorized/Manual
Identify distance270 m
Maximum aperture number4.4
Minimum aperture number1.6
Closest focusing distance1 m

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution2592 x 1520 pixels
Total megapixels4 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2592 x 1520
Frame rate60 fps
Video streamingYes
Image stabilizerYes
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory1024 MB
ROM capacity128 MB

Ports & interfaces

RS-485 ports1
InterfaceRS-485

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Motion sensorYes

Management features

Web browserYes

Power

Power source typeAC
AC input voltage24 V
AC adapter output current3 A
Power consumption (typical)13 W
Power consumption (max)23 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height359.9 mm
Diameter20.5 cm
Weight7.8 kg

Packaging data

Package weight8.3 kg

Packaging content

Number of cameras1
