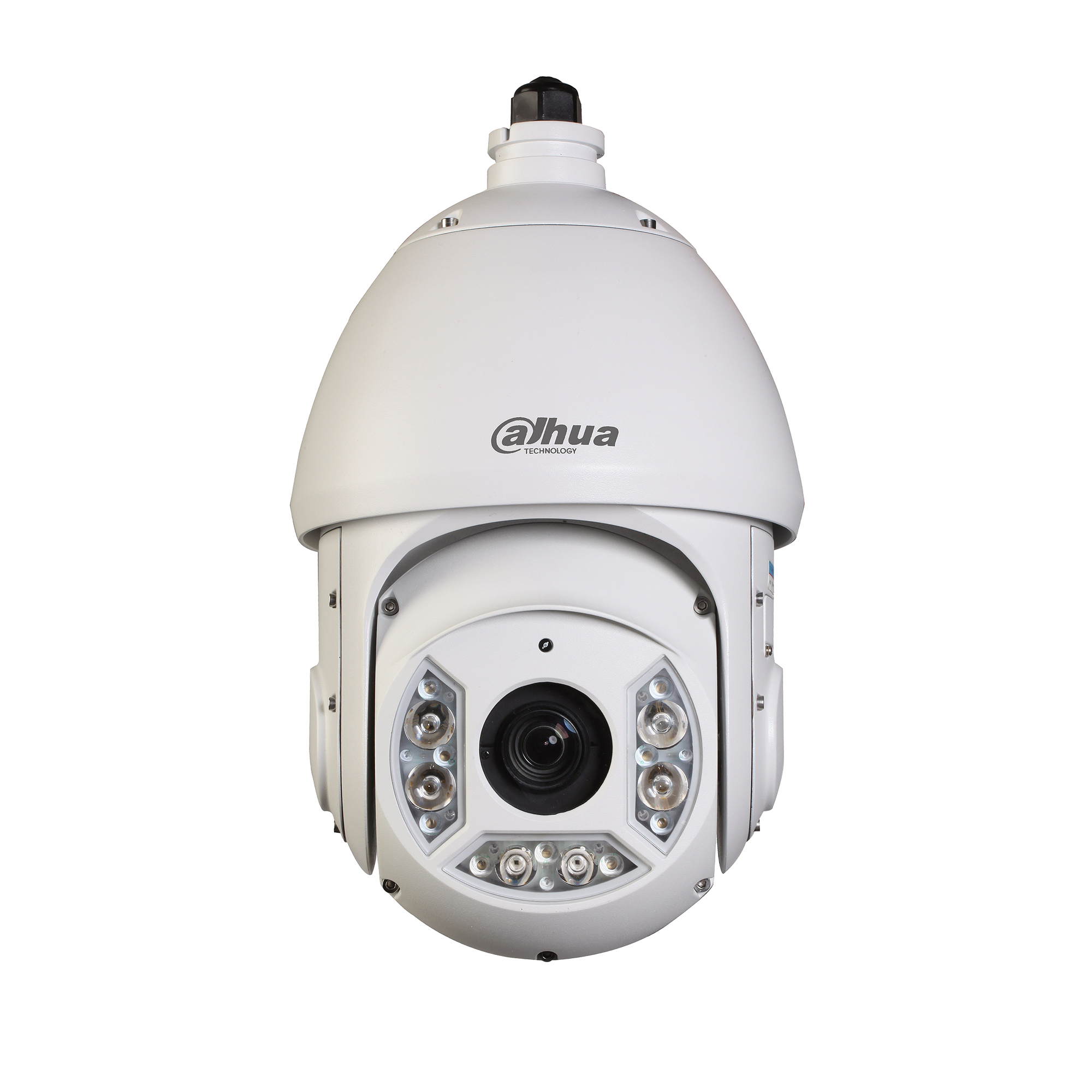

Dahua Technology Pro SD6C230U-HNI Dome IP security camera Indoor & outdoor
Dahua Technology

Pro SD6C230U-HNI Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model SD6C230U-HNIPart no. 1.0.01.07.11800

113 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight7.8 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
7.8 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
SD6C230U-HNI
Part number
1.0.01.07.11800
Also known as
Dahua Technology Pro SD6C230U-HNI Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

113 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modesAuto scan, Auto pan, Preset point
PTZ protocolsPelco-P/D, DH-SD
Auto-trackingYes
Tour recordingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresWater resistant
International Protection (IP) codeIP66

Camera

Minimum illumination0.005 lx
Lens viewing angle, vertical67.8°
Tilt angle range-15 - 90°
Tilt preset speed200 °/sec
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed160 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Preset programs quantity300
Camera shutter speed1/1 - 1/300000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom30x
Digital zoom16x
Detect distance1862 m
Observe distance744 m
Recognize distance372 m
Focal length range4.5 - 135 mm
Auto focusYes
FocusMotorized/Manual
Identify distance186 m
Maximum aperture number4.4
Minimum aperture number1.6
Closest focusing distance1 m

Night vision

Night visionYes
Night vision distance150 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Image stabilizerYes
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Full HDYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio codecsG.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast
Client interoperabilityONVIF, PSIA, CGI

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size128 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
InterfaceRJ-45

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Motion sensorYes

Management features

Web browserYes
Management softwareSmart PSS, DSS

Power

AC input voltage24 V
AC adapter output current3 A
Power consumption (typical)10.5 W
Power consumption (max)26 W
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height359.9 mm
Diameter20.5 cm
Weight7.8 kg

Packaging data

Package weight8.3 kg

Packaging content

Number of cameras1

Other features

Browser supportedIE, Chrome, Firefox, Safari
IR controlAuto, Manual

Technical details

Number of video streams3
