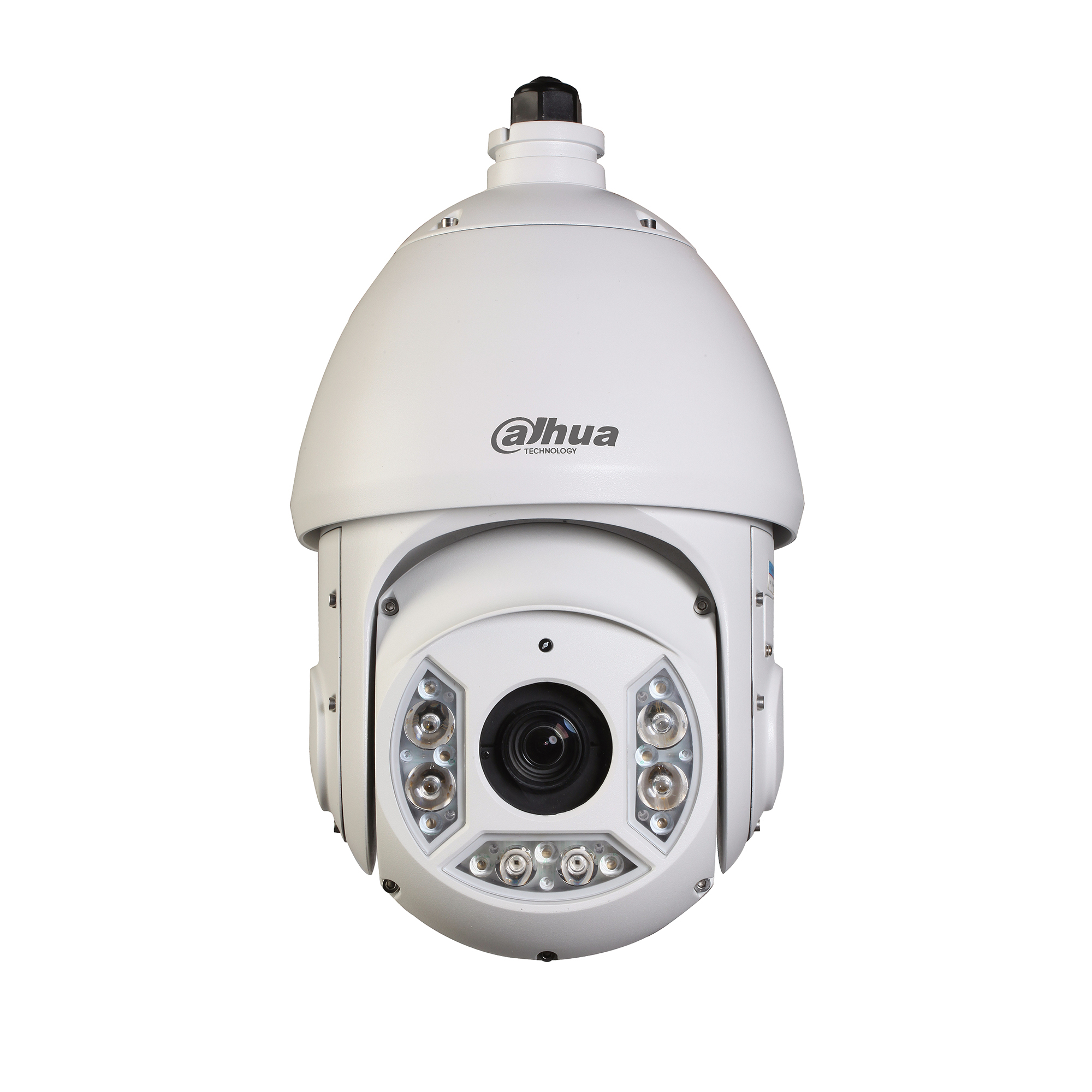

Dahua Technology Pro SD6C225IHCS3 security camera Dome IP security camera Indoor & outdoor
Dahua Technology

Pro SD6C225IHCS3 security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model SD6C225IHCS3

89 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight5 kg
  • ColourWhite
  • Form factorDome
  • Minimum illumination0.005 lx
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
5 kg
Colour
White
Form factor
Dome
Minimum illumination
0.005 lx
Brand
Dahua Technology
Model
SD6C225IHCS3
Part number
SD6C225IHCS3
Also known as
Dahua Technology Pro SD6C225IHCS3 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

89 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modesAuto scan, Auto pan, Preset point
PTZ protocolsDH-SD, Pelco-P/D
Auto-trackingYes
Tour recordingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresWater resistant
International Protection (IP) codeIP66

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal59.2°
Tilt angle range-15 - 90°
Tilt preset speed200 °/sec
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed160 °/sec
Auto flipYes
White balanceAWC, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Preset programs quantity300
Camera shutter speed1/1 - 1/300000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Focal length range4.8 - 120 mm
Auto focusYes
FocusMotorized/Manual
Maximum aperture number4.4
Minimum aperture number1.6
Closest focusing distance1 m

Night vision

Night visionYes
Night vision distance150 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Analog signal format systemNTSC, PAL
Video streamingYes
Noise reductionYes
Image stabilizerYes
3D NR (Noise Reduction)Yes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Full HDYes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)120 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Cabling technology10/100Base-T(X)

Storage

Built-in HDDNo

Ports & interfaces

RS-485 ports1
InterfaceRS-485

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Motion sensorYes

Management features

Web browserYes

Power

Power source typeAC
AC input voltage24 V
AC adapter output current3 A
Power consumption (typical)13 W
Power consumption (max)23 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Height336 mm
Diameter20.5 cm
Weight5 kg

Packaging data

Package weight8.3 kg

Packaging content

Number of cameras1
