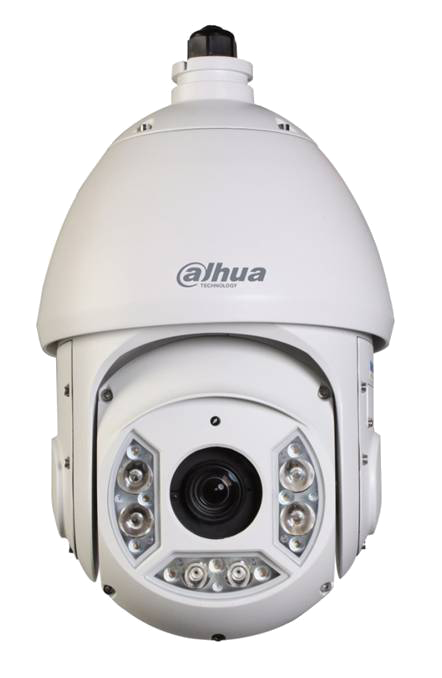

Dahua Technology SD6C220T-HN Dome IP security camera Indoor & outdoor
Dahua Technology

SD6C220T-HN Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model SD6C220T-HNPart no. DH-SD6C220T-HNEAN 6939554902963

84 specifications
  • ConnectivityWired
  • TypeIP security camera
  • Weight5 kg
  • ColourWhite
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
IP security camera
Weight
5 kg
Colour
White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
SD6C220T-HN
Part number
DH-SD6C220T-HN
EAN / UPC
6939554902963
Also known as
Dahua Technology SD6C220T-HN Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

84 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan, Preset point
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
International Protection (IP) codeIP66

Camera

Camera pan controlYes
Minimum illumination0.005 lx
Lens viewing angle, horizontal56.1°
Tilt angle range-15 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed160 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom20x
Digital zoom16x
Focal length range4.7 - 94 mm
Auto focusYes
FocusMotorized/Manual
Maximum aperture number1.4

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)50 dB
Voice codecsG.711a, G.711u, PCM

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3u
Supported network protocolsIPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, Bonjour, 802.1x
Number of users20 user(s)
Quality of Service (QoS) supportYes

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
BNC output ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Intrusion, Missing object, Tripwire
Security algorithms802.1x RADIUS, HTTPS, SSL/TLS

Power

Power source typeAC
AC input voltage24 V
Power consumption (max)26 W

Operational conditions

Operating temperature (T-T)-40 - 60 °C

System requirements

Mobile operating systems supportedAndroid, Windows 10 Mobile, iOS

Weight & dimensions

Width204.7 mm
Depth204.7 mm
Height359.9 mm
Weight5 kg

Packaging content

Number of cameras1
