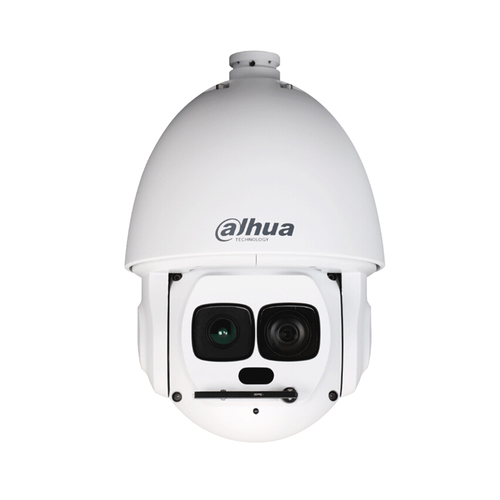

Dahua Technology WizMind SD6AL433XA-HNR Turret IP security camera Indoor & outdoor
Dahua Technology

WizMind SD6AL433XA-HNR Turret IP security camera Indoor & outdoor

2560 x 1440 pixels Ceiling

Model SD6AL433XA-HNRPart no. DH-SD6AL433XA-HNREAN 6939554989483

87 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight5.8 kg
  • ColourWhite
  • Form factorTurret
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
5.8 kg
Colour
White
Form factor
Turret
Brand
Dahua Technology
Model
SD6AL433XA-HNR
Part number
DH-SD6AL433XA-HNR
EAN / UPC
6939554989483
Also known as
Dahua Technology WizMind SD6AL433XA-HNR Turret IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling

Specifications

87 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern
PTZ protocolsDH-SD, Pelco-P/D
Auto-trackingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes

Design

Form factorTurret
Mounting typeCeiling
Product colourWhite
International Protection (IP) codeIP67
Fog proofYes

Camera

Minimum illumination0.0001 lx
Tilt angle range-20 - 90°
Tilt manual speed0.1 - 120 °/sec
Tilt preset speed200 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 200 °/sec
Pan preset speed240 °/sec
Pan speed200 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Optical zoom33x
Digital zoom16x
Detect distance2640 m
Observe distance1043 m
Recognize distance528 m
Focal length range5.8–191.4
Auto focusYes
Fixed focusYes
FocusManual
Identify distance264 m
Maximum aperture number4.8
Minimum aperture number1.5
Closest focusing distance0.1 m

Night vision

Night visionYes
Night vision distance550 m

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264, H.264+, H.264B, H.264H, H.264M, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Frame rate30 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Digital Wide Dynamic Range (DWDR)Yes
Privacy maskingYes

Audio

Audio formats supportedAAC, G.711 A-law, G.711 μ-law, G.722.1, G.723, G.726, G.729

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; SNMPv1/v2c/v3 (MIB-2); RTCP; RTMP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
Microphone inYes
Headphone outputs1

Security

Alarm input channels7
Alarm output channels2

Management features

Web-based managementYes
Web browserYes

Power

Power source typeDC, PoE
Power consumption (typical)20 W
Power consumption (max)32 W
DC output voltage36
DC output current2.23 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Height382 mm
Diameter24 cm
Weight5.8 kg

Packaging data

Package weight10.5 kg

Packaging content

Number of cameras1
