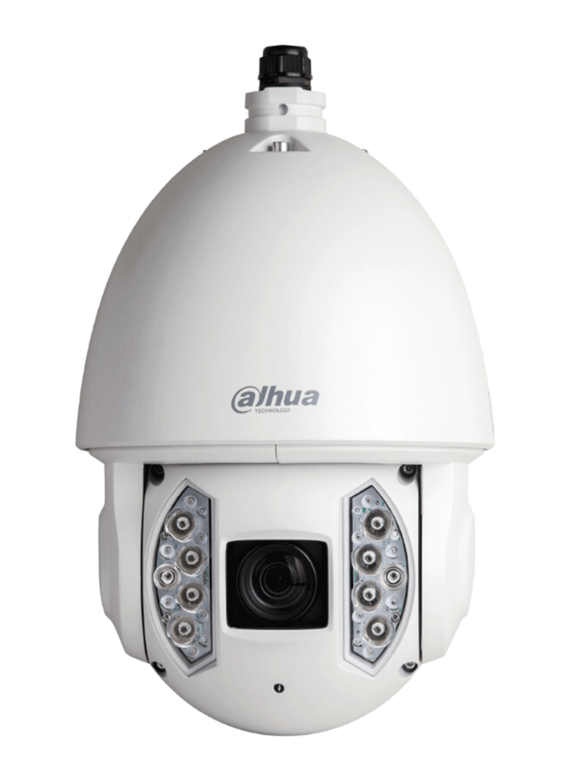

Pro SD6AE530U-HNI security camera Dome IP security camera Indoor & outdoor
2560 x 1920 pixels Ceiling/wall
Model SD6AE530U-HNI
100 specifications
- Memory1024 MB
- ConnectivityWired
- TypeIP security camera
- Weight6.75 kg
- ColourWhite
- Form factorDome
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 6.75 kg
- Colour
- White
- Form factor
- Dome
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- SD6AE530U-HNI
- Part number
- SD6AE530U-HNI
- Also known as
- Dahua Technology Pro SD6AE530U-HNI security camera Dome IP security camera Indoor & outdoor 2560 x 1920 pixels Ceiling/wall
Specifications
100 specifications in 17 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 5 Pattern, 8 Tour, Auto scan, Auto pan |
| PTZ protocols | DH-SD, Pelco-P/D |
| Auto-tracking | Yes |
| Auto pan mode | Yes |
| Tour recording | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling/wall |
| Product colour | White |
| Housing material | Metal |
| Protection features | Dust resistant, Water resistant |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0 lx |
| Lens viewing angle, horizontal | 61.2° |
| Tilt angle range | 20 - 90° |
| Tilt speed | 120 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 240 °/sec |
| Pan speed | 200 °/sec |
| Auto flip | Yes |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/1 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 1.9 mm (1 / 1.9") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 30x |
| Digital zoom | 16x |
| Detect distance | 2250 m |
| Observe distance | 900 m |
| Recognize distance | 450 m |
| Focal length range | 6 - 180 mm |
| Auto focus | Yes |
| Identify distance | 225 m |
| Maximum aperture number | 4.3 |
| Minimum aperture number | 1.5 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 200 m |
| LED type | IR |
| Number of illumination LEDs | 10 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1920 pixels |
| Total megapixels | 5 MP |
| Video formats supported | H.264, H.265 |
| Video compression formats | H.264, H.265 |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |
| Frame rate | 30 fps |
| Analog signal format system | PAL |
| Video streaming | Yes |
| Noise reduction | Yes |
| Noise reduction technology | Ultra 2D noise reduction, Ultra 3D noise reduction |
| Image stabilizer | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR), Variable Bit Rate (VBR) |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Flip & mirror | Yes |
| Highlight Compensation (HLC) | Yes |
| Privacy masking | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio formats supported | AAC, G.726 |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Voice codecs | G.711Mu, G.711a, G.722, G.726 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Number of users | 20 user(s) |
| Quality of Service (QoS) support | Yes |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
| Maximum memory card size | 256 GB |
| Internal memory | 1024 MB |
| ROM capacity | 128 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
| BNC output ports | 1 |
Security
| Specification | Value |
|---|---|
| Active tampering alarm | Yes |
| IP address filtering | Yes |
| Intelligent Video Surveillance (IVS) system features | Abandoned object, Face detection, Intrusion, Missing object, Tripwire |
| Security algorithms | HTTPS, SNMP, SSL/TLS |
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC, PoE |
| AC input voltage | 24 V |
| Power consumption (typical) | 24 W |
| Power consumption (max) | 38 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 382 mm |
| Diameter | 24 cm |
| Weight | 6.75 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 10.1 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
