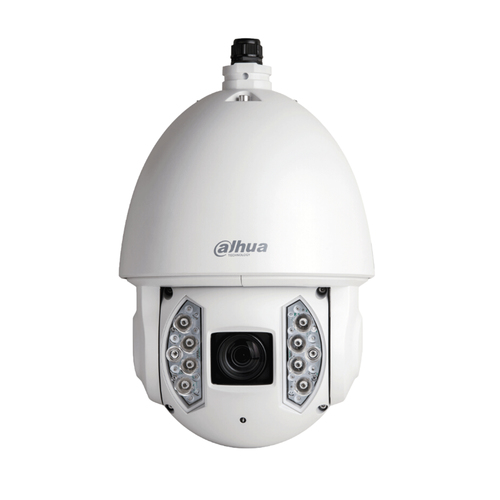

Dahua Technology WizMind SD6AE433XA-HNR Bulb CCTV security camera Indoor & outdoor
Dahua Technology

WizMind SD6AE433XA-HNR Bulb CCTV security camera Indoor & outdoor

2560 x 1440 pixels Ceiling/Wall/Pole

Model SD6AE433XA-HNRPart no. DH-SD6AE433XA-HNR

92 specifications
  • Storage1 GB
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight5.8 kg
  • Form factorBulb
  • Minimum illumination0.0001 lx
See all specifications

Overview

Storage
1 GB
Connectivity
Wired
Type
CCTV security camera
Weight
5.8 kg
Form factor
Bulb
Minimum illumination
0.0001 lx
Brand
Dahua Technology
Model
SD6AE433XA-HNR
Part number
DH-SD6AE433XA-HNR
Also known as
Dahua Technology WizMind SD6AE433XA-HNR Bulb CCTV security camera Indoor & outdoor 2560 x 1440 pixels Ceiling/Wall/Pole

Specifications

92 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ modes5 Pattern, 8 Tour
Auto-trackingYes
Tour recordingYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014

Design

Form factorBulb
Mounting typeCeiling/Wall/Pole
International Protection (IP) codeIP67

Camera

Minimum illumination0.0001 lx
Lens viewing angle, horizontal60.1 - 3.1°
Lens viewing angle, vertical35.3 - 1.8°
Lens viewing angle, diagonal67.9 - 3.6°
Tilt angle range-20 - 90°
Tilt manual speed0.1 - 120 °/sec
Tilt preset speed200 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 200 °/sec
Pan preset speed240 °/sec
Auto flipYes
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 1.8 mm (1 / 1.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom33x
Digital zoom16x
Detect distance2640 m
Observe distance1043 m
Recognize distance528 m
Focal length range5.8 - 191.4 mm
Auto focusYes
FocusManual
Identify distance264 m
Maximum aperture number4.8
Minimum aperture number1.5
Closest focusing distance1 m

Night vision

Night visionYes
LED typeIR
Number of illumination LEDs10

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 Kbps–20480 Kbps H.265: 3 Kbps–20480 Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDYes
HDD capacity1 GB
Maximum memory card size256 GB
ROM capacity4000 MB

Ports & interfaces

RS-485 ports1

Security

Alarm input channels7
Alarm output channels2
Active tampering alarmYes
Video motion detectionYes

Power

Power source typeAC
AC input voltage24 V
Power consumption (typical)20 W
Power consumption (max)32 W
DC output current3 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width382 mm
Diameter24 cm
Weight5.8 kg

Packaging data

Package weight10.5 kg

Packaging content

Number of cameras1
