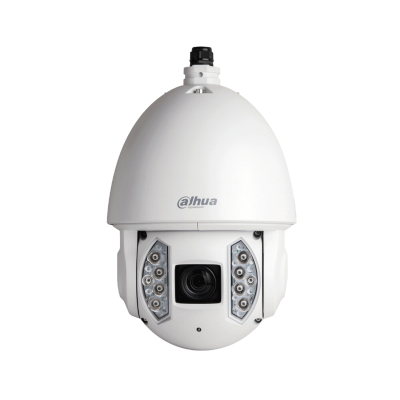

Dahua Technology Ultra SD6AE245U-HNI Dome IP security camera Indoor & outdoor
Dahua Technology

Ultra SD6AE245U-HNI Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model SD6AE245U-HNIPart no. DH-SD6AE245U-HNI

95 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight6.75 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
6.75 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
SD6AE245U-HNI
Part number
DH-SD6AE245U-HNI
Also known as
Dahua Technology Ultra SD6AE245U-HNI Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

95 specifications in 18 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan
PTZ protocolsDH-SD, Pelco-P/D
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling
Product colourWhite
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP67
WeatherproofYes
Fog proofYes

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal70.3°
Tilt angle range-20 - 90°
Pan range0 - 360°
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s
Adjustment shutter speedAuto

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Zoom capabilityYes
Optical zoom45x
Digital zoom16x
Focal length range3.95 - 177.7 mm
FocusMotorized/Manual
Maximum aperture number4.95
Minimum aperture number1.6
Closest focusing distance1.5 m
Focus adjustment1.6

Night vision

Night visionYes
Night vision distance300 m
LED typeIR
Number of illumination LEDs10

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes1080p
Frame rate60 fps
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264: 448K ~ 8192Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Full HDYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedAAC, G.726
Signal-to-Noise Ratio (SNR)56 dB
Voice codecsG.711Mu, G.711a

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Flash memory128 MB
Internal memory1024 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
Composite video out1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeAC, PoE
AC input voltage24 V
AC adapter output current3 A
Power consumption (typical)24 W
Power consumption (max)38 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 70 °C

Weight & dimensions

Height382 mm
Diameter24 cm
Weight6.75 kg

Packaging data

Package weight10.1 kg

Packaging content

Number of cameras1
ManualYes
