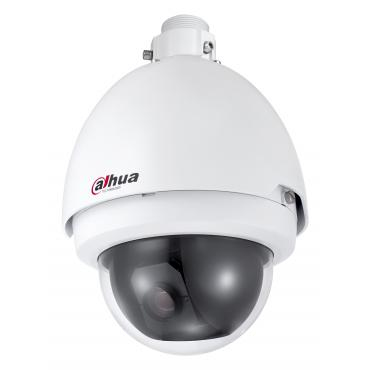

Dahua Technology SD6523-H security camera Dome Indoor & outdoor Ceiling

Dahua Technology SD6523-H security camera Dome Indoor & outdoor Ceiling

Model SD6523-H

37 specifications
  • ConnectivityWired
  • TypeDome
  • Weight5 kg
  • ColourWhite
  • Placement supportedIndoor & outdoor
  • Minimum illumination0.01 lx
See all specifications

Overview

Connectivity
Wired
Type
Dome
Weight
5 kg
Colour
White
Placement supported
Indoor & outdoor
Minimum illumination
0.01 lx
Brand
Dahua Technology
Model
SD6523-H
Part number
SD6523-H
Also known as
Dahua Technology SD6523-H security camera Dome Indoor & outdoor Ceiling

Specifications

37 specifications in 14 groups

Performance

Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
Alarm input/outputYes

Design

Form factorDome
Mounting typeCeiling
Product colourWhite

Camera

Minimum illumination0.01 lx
Lens viewing angle, horizontal61.68°
Tilt angle range2 - 90°
Tilt speed300 °/sec
Pan range0 - 360°
Pan speed400 °/sec
White balanceAuto, Manual
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/100.000 s

Image sensor

Sensor typeCCD
Optical sensor size25.4 / 4 mm (1 / 4")

Lens system

Optical zoom23x
Digital zoom16x
Focal length range3.9 - 89.7 mm
Normal focusing range0.1 - 10 m

Night vision

Night visionYes

Video

Analog signal format systemNTSC, PAL
Number of TV lines600

Audio

Signal-to-Noise Ratio (SNR)50 dB

Network

Ethernet LANNo
Wi-FiNo

Storage

Built-in HDDNo

Ports & interfaces

RS-485 ports1
InterfaceBNC

Power

Power consumption (typical)25 W
Power over Ethernet (PoE)No

Operational conditions

Operating temperature (T-T)-40 - 60 °C

Weight & dimensions

Width222 mm
Height322 mm
Weight5 kg
