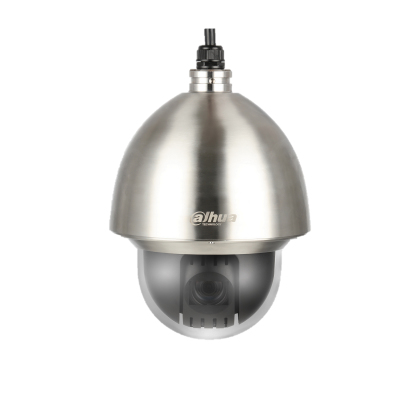

Dahua Technology SD60230U-HNI-SL security camera Dome IP security camera Indoor & outdoor
Dahua Technology

SD60230U-HNI-SL security camera Dome IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model SD60230U-HNI-SLEAN 6939554938528

100 specifications
  • Memory512 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight5.9 kg
  • ColourStainless steel
  • Form factorDome
See all specifications

Overview

Memory
512 MB
Connectivity
Wired
Type
IP security camera
Weight
5.9 kg
Colour
Stainless steel
Form factor
Dome
Brand
Dahua Technology
Model
SD60230U-HNI-SL
Part numbers
SD60230U-HNI-SL, DH-SD60230U-HNI-SL
EAN / UPC
6939554938528
Also known as
Dahua Technology SD60230U-HNI-SL security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

100 specifications in 19 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan
PTZ protocolsPelco-P/D, DH-SD
Auto-trackingYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 NEMA 4X: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typeCeiling/wall
Product colourStainless steel
Housing materialStainless steel
Protection featuresDust resistant, Vandal proof, Water resistant
International Protection (IP) codeIP68
IK codeIK10
Fog proofYes

Camera

Camera tilt controlYes
Minimum illumination0.0005 lx
Lens viewing angle, horizontal67.8°
Tilt angle range-20 - 90°
Tilt speed200 °/sec
Pan range0 - 360°
Pan preset speed600 °/sec
Pan speed300 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1 - 1/30000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom30x
Focal length range4.5 - 135 mm
FocusMotorized/Manual
Maximum aperture number1.6
Minimum aperture number4.4

Night vision

Night visionNo

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video formats supportedMPEG1, MPEG2
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264: 448K ~ 8192Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC
Signal-to-Noise Ratio (SNR)55 dB
Voice codecsG.711Mu, G.711a, G.722, G.726

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3, IEEE 802.3at, IEEE 802.3u
Supported network protocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB
Internal memory512 MB
ROM capacity128 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1
RS-485 ports1
BNC output ports1

Security

Intelligent Video Surveillance (IVS) system featuresHeat map, Abandoned object, Face detection, Intrusion, Missing object, Tripwire
Video motion detectionYes

Management features

Web browserYes

Power

Power source typeAC, PoE
AC input voltage24 V
Power consumption (max)20 W

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Storage temperature (T-T)-40 - 70 °C

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Width222 mm
Depth222 mm
Height292 mm
Weight5.9 kg

Packaging data

Package weight11 kg

Packaging content

Number of cameras1
