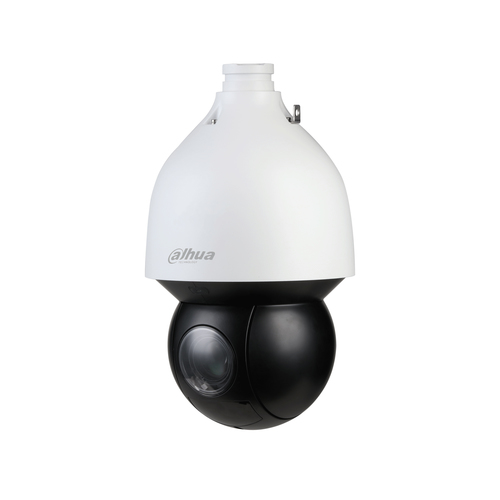

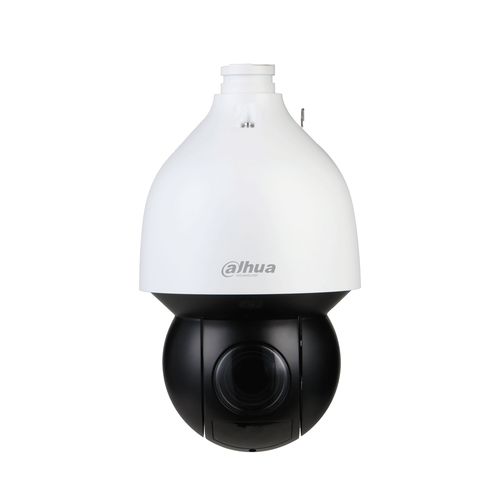

Dahua Technology WizSense SD5A432XB-HNR Bulb CCTV security camera Outdoor
Dahua Technology

WizSense SD5A432XB-HNR Bulb CCTV security camera Outdoor

2560 x 1440 pixels Ceiling/wall

Model SD5A432XB-HNRPart no. DH-SD5A432XB-HNR

97 specifications
  • Storage4 GB
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight4.7 kg
  • ColourBlack, White
  • Form factorBulb
See all specifications

Overview

Storage
4 GB
Connectivity
Wired
Type
CCTV security camera
Weight
4.7 kg
Colour
Black, White
Form factor
Bulb
Brand
Dahua Technology
Model
SD5A432XB-HNR
Part number
DH-SD5A432XB-HNR
Also known as
Dahua Technology WizSense SD5A432XB-HNR Bulb CCTV security camera Outdoor 2560 x 1440 pixels Ceiling/wall

Specifications

97 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour
PTZ protocolsPelco-P/D, DH-SD
Auto-trackingYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE-LVD: EN 62368-1 CE-EMC: EN55032:2015/EN61000-3-2; 2019/EN61000-3-3: 2013+A1: 2019 /EN50130-4: 2011/A1: 2014/EN55024: 2010/A1: 2015/EN55035: 2017 FCC: CFR 47 FCC Part15, Subpart B UL: UL60950-1+CAN/CSA C22.2, No.60950-1

Design

Form factorBulb
Mounting typeCeiling/wall
Product colourBlack, White
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.0005 lx
Field of view (FOV) angle63.71°
Angle of rotation180°
Tilt angle range-15 - 90°
Tilt manual speed0.1 - 200 °/sec
Tilt preset speed300 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 300 °/sec
Pan preset speed400 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Optical zoom32x
Digital zoom16x
Detect distance2124 m
Observe distance839 m
Recognize distance425 m
Focal length range4.8 - 154 mm
Auto focusYes
FocusManual
Identify distance212 m
Maximum aperture number4
Minimum aperture number1.6
Closest focusing distance5 m

Night vision

Night visionYes
Number of illumination LEDs4

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Supported video modes720p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 kbps–20480 kbps H.265: 3 kbps–20480 kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Built-in speaker(s)Yes
Audio system2-way
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedG.722.1, G.723, G.729
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsHTTP; HTTPS; IPv4; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS; IPv6; 802.1x; QoS; FTP; UPnP; ICMP; SNMP; SNMP v1/v2c/v3 (MIB-2); IGMP; ARP; RTCP; RTP; PPPoE; RTMP; TCP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDYes
HDD capacity4 GB
Built-in SSDYes
SSD capacity1 GB
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size512 GB

Security

Alarm input channels2
Alarm output channels1
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS; Easy4ip; IVSS

Power

Power source typeDC
Power consumption (typical)13 W
Power consumption (max)22 W
DC output voltage24
DC output current2.5 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width331.9 mm
Depth190.4 mm
Weight4.7 kg

Packaging data

Package weight8 kg

Packaging content

Number of cameras1
