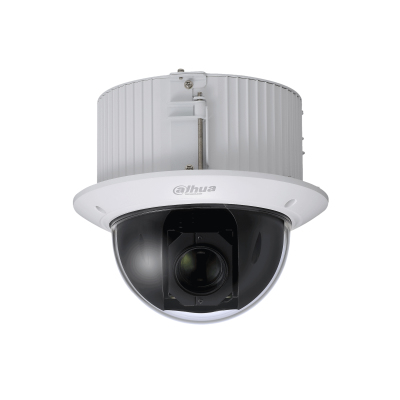

Dahua Technology WizSense SD52C232XA-HNR Dome IP security camera Indoor
Dahua Technology

WizSense SD52C232XA-HNR Dome IP security camera Indoor

1920 x 1080 pixels Ceiling

Model SD52C232XA-HNRPart no. DH-SD52C232XA-HNREAN 6939554983290

89 specifications
  • Memory1000 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.2 kg
  • ColourBlack, White
  • Form factorDome
See all specifications

Overview

Memory
1000 MB
Connectivity
Wired
Type
IP security camera
Weight
2.2 kg
Colour
Black, White
Form factor
Dome
Brand
Dahua Technology
Model
SD52C232XA-HNR
Part number
DH-SD52C232XA-HNR
EAN / UPC
6939554983290
Also known as
Dahua Technology WizSense SD52C232XA-HNR Dome IP security camera Indoor 1920 x 1080 pixels Ceiling

Specifications

89 specifications in 17 groups

Performance

TypeIP security camera
Placement supportedIndoor
Connectivity technologyWired
PTZ controlYes
PTZ modesAuto scan, Auto pan, Preset point
PTZ protocolsDH-SD
Wide Dynamic Range (WDR)Yes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL62368-1+CAN/CSA C22.2,No. 62368-1

Design

Form factorDome
Mounting typeCeiling
Product colourBlack, White
IK codeIK10

Camera

Minimum illumination0.005 lx
Lens viewing angle, horizontal62.8°
Lens viewing angle, vertical36.7°
Lens viewing angle, diagonal69.2°
Tilt angle range0 - 90°
Tilt speed250 °/sec
Pan range0 - 360°
Pan preset speed500 °/sec
Pan speed350 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Optical zoom32x
Digital zoom16x
Detect distance2152 m
Observe distance850 m
Recognize distance430 m
Focal length range4.9 - 156 mm
Auto focusYes
FocusMotorized/Manual
Identify distance215 m
Maximum aperture number4.4
Minimum aperture number1.35

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Video formats supportedH.264B, H.265, H.265+, M-JPEG
Video compression formatsH.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 Kbps–20480 Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels
Audio output channels1.0 channels
Audio codecsG.711a; G.711Mu; G.726; AAC; MPEG2-Layer2; G722.1; G729; G723
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDNo
Card reader integratedYes
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB
Internal memory1000 MB
ROM capacity4000 MB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Intelligent Video Surveillance (IVS) system featuresAbandoned object, Missing object
Motion sensorYes
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS; Easy4ip; IVSS

Power

Power source typeDC, PoE
Power consumption (typical)10 W
Power consumption (max)16 W
DC output voltage24

Operational conditions

Operating temperature (T-T)-30 - 60 °C
Operating relative humidity (H-H)0 - 95%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Diameter18.6 cm
Length253 mm
Weight2.2 kg
