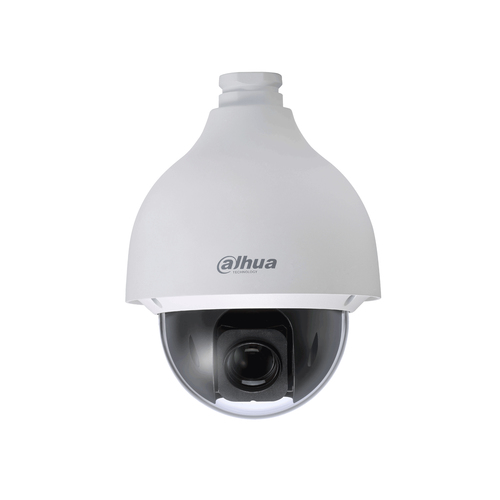

Dahua Technology WizSense SD50232XA-HNR Bulb CCTV security camera Outdoor
Dahua Technology

WizSense SD50232XA-HNR Bulb CCTV security camera Outdoor

1920 x 1080 pixels Ceiling/Wall/Pole

Model SD50232XA-HNRPart no. DH-SD50232XA-HNREAN 6939554983269

94 specifications
  • Storage4 GB
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight2.5 kg
  • ColourBlack, White
  • Form factorBulb
See all specifications

Overview

Storage
4 GB
Connectivity
Wired
Type
CCTV security camera
Weight
2.5 kg
Colour
Black, White
Form factor
Bulb
Brand
Dahua Technology
Model
SD50232XA-HNR
Part number
DH-SD50232XA-HNR
EAN / UPC
6939554983269
Also known as
Dahua Technology WizSense SD50232XA-HNR Bulb CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Pole

Specifications

94 specifications in 18 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour
PTZ protocolsPelco-P/D, DH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Dynamic range120 dB
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL62368-1+CAN/CSA C22.2,No. 62368-1

Design

Form factorBulb
Mounting typeCeiling/Wall/Pole
Product colourBlack, White
International Protection (IP) codeIP67
IK codeIK10

Camera

Minimum illumination0.0005 lx
Field of view (FOV) angle69.2°
Tilt angle range0 - 90°
Tilt manual speed0.1 - 250 °/sec
Tilt preset speed500 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 350 °/sec
Pan preset speed500 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Optical zoom32x
Digital zoom16x
Detect distance2152 m
Observe distance850 m
Recognize distance430 m
Focal length range4.9 - 156 mm
Auto focusYes
FocusManual
Identify distance215 m
Maximum aperture number4.4
Minimum aperture number1.35
Closest focusing distance1.5 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264+, H.264B, H.264H, H.264M, H.265, H.265+
Supported graphics resolutions352 x 288, 704 x 576, 1280 x 960, 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Video streamingYes
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rateH.264: 3 Kbps–20480 Kbps; H.265: 3 Kbps–20480 Kbps
Bit rate controlConstant Bit Rate (CBR)/Variable Bit Rate (VBR)
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio system2-way
Audio input channels1.0 channels
Audio output channels1.0 channels
Audio formats supportedAAC, G.711, G.722.1, G.723, G.726, G.729
Signal-to-Noise Ratio (SNR)55 dB

Network

Ethernet LANYes
Wi-FiNo
BluetoothNo
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMPv1/v2c/v3 (MIB-2); DNS; DDNS; NTP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE; ARP; RTCP
Number of users20 user(s)
Streaming methodMulticast, Unicast

Storage

Built-in HDDYes
HDD capacity4 GB
Built-in SSDYes
SSD capacity1 GB
Compatible memory cardsMicroSD (TransFlash)
Maximum memory card size256 GB

Ports & interfaces

Ethernet LAN (RJ-45) ports1

Security

Alarm input channels2
Alarm output channels1
Video motion detectionYes

Management features

Web browserYes
Management softwareSmart PSS; DSS; DMSS; Easy4ip; IVSS

Power

Power source typeDC
Power consumption (typical)10 W
Power consumption (max)16 W
DC output voltage24
DC output current2.5 A

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width253 mm
Depth186 mm
Weight2.5 kg

Packaging data

Package weight4.5 kg

Packaging content

Number of cameras1
