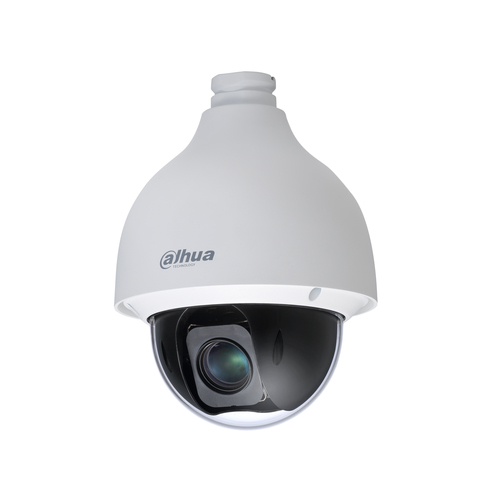

Dahua Technology HDCVI PTZ SD50232-HC-LA Bulb CCTV security camera Indoor & outdoor
Dahua Technology

HDCVI PTZ SD50232-HC-LA Bulb CCTV security camera Indoor & outdoor

1920 x 1080 pixels Wall

Model SD50232-HC-LAPart no. DH-SD50232-HC-LAEAN 6939554999956

81 specifications
  • Memory256 MB
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight2.5 kg
  • ColourBlack, White
  • Form factorBulb
See all specifications

Overview

Memory
256 MB
Connectivity
Wired
Type
CCTV security camera
Weight
2.5 kg
Colour
Black, White
Form factor
Bulb
Brand
Dahua Technology
Model
SD50232-HC-LA
Part number
DH-SD50232-HC-LA
EAN / UPC
6939554999956
Also known as
Dahua Technology HDCVI PTZ SD50232-HC-LA Bulb CCTV security camera Indoor & outdoor 1920 x 1080 pixels Wall

Specifications

81 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes8 Tour
PTZ protocolsPelco-P/D, DH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
Dynamic range120 dB
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4-2014 UL62368-1+CAN/CSA C22.2,No. 62368-1

Design

Form factorBulb
Mounting typeWall
Product colourBlack, White
International Protection (IP) codeIP67
IK codeIK10

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.0005 lx
Field of view (FOV) angle68.23°
Tilt angle range0 - 90°
Tilt manual speed0.1 - 250 °/sec
Tilt preset speed500 °/sec
Pan range0 - 360°
Pan manual speed0.1 - 350 °/sec
Pan preset speed500 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/100000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Number of lenses1
Optical zoom32x
Digital zoom16x
Detect distance1986 m
Observe distance785 m
Recognize distance398 m
Focal length range4.5 - 144 mm
Auto focusYes
FocusManual
Identify distance198 m
Maximum aperture number4
Minimum aperture number1.6
Closest focusing distance1.5 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Supported graphics resolutions704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Noise reductionYes
Noise reduction technology2D noise reduction, 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes

Audio

Audio input channels1.0 channels

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo
Internal memory256 MB
ROM capacity16 MB

Ports & interfaces

RS-485 ports1
BNC output ports1

Security

Alarm input channels2
Alarm output channels1

Power

Power source typeDC
Power consumption (typical)15.5 W
Power consumption (max)18.5 W
DC output voltage24
DC output current2.5 A

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 95%

Weight & dimensions

Width253 mm
Depth186.2 mm
Weight2.5 kg

Packaging data

Package weight4.5 kg

Packaging content

Number of cameras1
