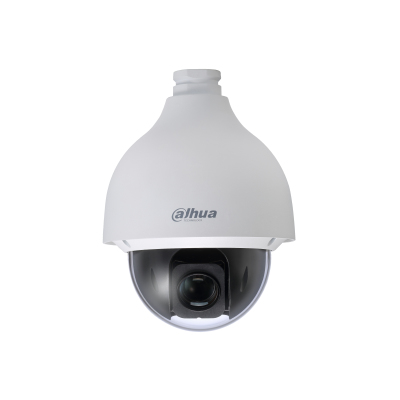

SD50225IHCS3 security camera Dome CCTV security camera Indoor & outdoor
1920 x 1080 pixels Ceiling
Model SD50225IHCS3
68 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight2.5 kg
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 2.5 kg
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- SD50225IHCS3
- Part number
- SD50225IHCS3
- Also known as
- Dahua Technology SD50225IHCS3 security camera Dome CCTV security camera Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
68 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 5 Pattern, 8 Tour, Auto scan, Auto pan |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Parte15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2, No.60950-1 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| International Protection (IP) code | IP67 |
| IK code | IK10 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Minimum illumination | 0.005 lx |
| Lens viewing angle, horizontal | 59.2° |
| Tilt angle range | 0 - 90° |
| Pan range | 0 - 360° |
| Pan speed | 350 °/sec |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
| Camera shutter speed | 1/3 - 1/30000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
| Number of effective pixels (H x V) | 1920 x 1080 pixels |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 25x |
| Digital zoom | 16x |
| Focal length range | 4.8 - 120 mm |
| Focus | Motorized/Manual |
| Maximum aperture number | 4.4 |
| Minimum aperture number | 1.6 |
| Closest focusing distance | 0.1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | No |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Supported video modes | 720p, 1080p |
| Frame rate | 60 fps |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Digital Wide Dynamic Range (DWDR) | Yes |
| Highlight Compensation (HLC) | Yes |
| Image quality adjustment | DNR |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
| BNC output ports | 1 |
| Headphone outputs | 1 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 24 V |
| Power consumption (typical) | 12 W |
| Power consumption (max) | 23 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 253 mm |
| Diameter | 18.6 cm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.5 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
