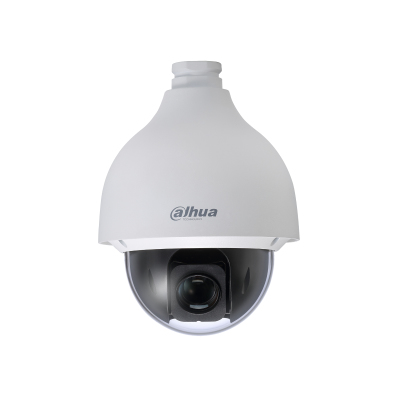

SD50120I-HC security camera Dome IP security camera Indoor & outdoor
1280 x 720 pixels Ceiling
Model SD50120I-HC
62 specifications
- ConnectivityWired
- TypeIP security camera
- Weight2.5 kg
- ColourWhite
- Form factorDome
- Minimum illumination0.005 lx
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 2.5 kg
- Colour
- White
- Form factor
- Dome
- Minimum illumination
- 0.005 lx
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- SD50120I-HC
- Part number
- SD50120I-HC
- Also known as
- Dahua Technology SD50120I-HC security camera Dome IP security camera Indoor & outdoor 1280 x 720 pixels Ceiling
Specifications
62 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto pan mode | Yes |
| Preset points | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Certification | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1 |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | White |
| Housing material | Metal |
| Protection features | Vandal proof |
| International Protection (IP) code | IP67 |
| Weatherproof | Yes |
Camera
| Specification | Value |
|---|---|
| Minimum illumination | 0.005 lx |
| Lens viewing angle, vertical | 54.1° |
| Lens viewing angle, diagonal | 3.1° |
| Tilt angle range | 0 - 90° |
| Tilt speed | 250 °/sec |
| Pan range | 0 - 360° |
| Pan speed | 350 °/sec |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/3 - 1/300000 s |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 3 mm (1 / 3") |
| Effective sensor resolution | 921600 pixels |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 20x |
| Digital zoom | 16x |
| Focal length range | 4.7 - 94 mm |
| Auto focus | Yes |
| Focus adjustment | 1.4 - 2.6 |
| Normal focusing range | 0.1 - 1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| LED type | IR |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1280 x 720 pixels |
| Total megapixels | 1 MP |
| Supported graphics resolutions | 1280 x 720 (HD 720) |
| Supported video modes | 720p |
| Frame rate | 60 fps |
| Noise reduction | Yes |
| Automatic gain control | Yes |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 50 dB |
Network
| Specification | Value |
|---|---|
| Supported network protocols | DH-SD, Pelco-P/D |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
Security
| Specification | Value |
|---|---|
| Motion sensor | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 24 V |
| Power consumption (typical) | 23 W |
| DC output current | 1.5 A |
| Power over Ethernet (PoE) | No |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 253 mm |
| Diameter | 18.6 cm |
| Weight | 2.5 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.5 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
