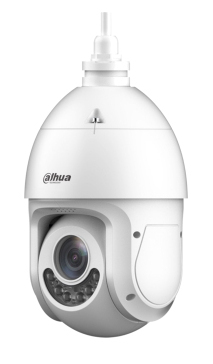

WizSense SD4E825GB-HNR-A-PV1 Spherical IP security camera Indoor & outdoor
2560 x 1440 pixels Ceiling
Model SD4E825GB-HNR-A-PV1Part no. DH-SD4E825GB-HNR-A-PV1EAN 6923172574688
92 specifications
- Memory1024 MB
- ConnectivityWired
- TypeIP security camera
- Weight2.6 kg
- ColourWhite
- Form factorSpherical
Overview
- Memory
- 1024 MB
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 2.6 kg
- Colour
- White
- Form factor
- Spherical
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- SD4E825GB-HNR-A-PV1
- Part number
- DH-SD4E825GB-HNR-A-PV1
- EAN / UPC
- 6923172574688
- Also known as
- Dahua Technology WizSense SD4E825GB-HNR-A-PV1 Spherical IP security camera Indoor & outdoor 2560 x 1440 pixels Ceiling
Specifications
92 specifications in 20 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| PTZ modes | 5 Pattern, 8 Tour, Auto scan, Preset point |
| Auto-tracking | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
| Built-in light | Yes |
| Dynamic range | 120 dB |
Design
| Specification | Value |
|---|---|
| Form factor | Spherical |
| Mounting type | Ceiling |
| Product colour | White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Lens viewing angle, horizontal | 53.1 - 3.4° |
| Lens viewing angle, vertical | 30.4 - 1.9° |
| Lens viewing angle, diagonal | 59.3 - 3.9° |
| Tilt angle range | -15 - 90° |
| Tilt preset speed | 200 °/sec |
| Tilt speed | 120 °/sec |
| Pan range | 0 - 360° |
| Pan preset speed | 240 °/sec |
| Pan speed | 200 °/sec |
| White balance | Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp |
| Camera shutter type | Electronic |
| Camera shutter speed | 1/1 - 1/30000 s |
| Number of Privacy masking areas | 2 |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
| Progressive scan | Yes |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 25x |
| Digital zoom | 16x |
| Detect distance | 3310 m |
| Observe distance | 331 m |
| Focal length range | 5 - 125 mm |
| Auto focus | Yes |
| Maximum aperture number | 3.6 |
| Minimum aperture number | 1.6 |
| Closest focusing distance | 0.1 m |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 100 m |
| Colour night vision distance | 50 m |
| LED type | IR/White |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 2560 x 1440 pixels |
| Total megapixels | 4 MP |
| Video compression formats | H.264+, H.264B, H.264H, H.264M, H.265, H.265+, M-JPEG |
| Supported graphics resolutions | 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2304 x 1296, 2560 x 1440 |
| Frame rate | 30 fps |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Image stabilizer | Yes |
| Gain control type | Auto/Manual |
| Back Light Compensation (BLC) | Yes |
| Bit rate control | Constant Bit Rate (CBR)/Variable Bit Rate (VBR) |
| Highlight Compensation (HLC) | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Audio input channels | 1.0 channels |
| Audio output channels | 1.0 channels |
| Audio formats supported | G.711 A-law, G.722.1, G.723, G.726, G.729, PCM |
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Bluetooth | No |
| Ethernet interface type | Fast Ethernet |
| Supported network protocols | FTP; RTMP; IPv6; Bonjour; IPv4; DNS; RTCP; PPPoE; NTP; RTP; 802.1x; HTTPS; SNMP; TCP/IP; DDNS; UPnP; NFS; ICMP; UDP; IGMP; HTTP; SSL; DHCP; SMTP; Qos; RTSP; ARP |
| Number of users | 20 user(s) |
| Streaming method | Multicast, Unicast |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Compatible memory cards | MicroSD (TransFlash) |
| Internal memory | 1024 MB |
| ROM capacity | 4096 MB |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Alarm input channels | 2 |
| Alarm output channels | 1 |
| Video motion detection | Yes |
Management features
| Specification | Value |
|---|---|
| Management software | DMSS; DSS Pro |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| DC output voltage | 12 |
| DC output current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
System requirements
| Specification | Value |
|---|---|
| Mobile operating systems supported | Android, iOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 269.9 mm |
| Diameter | 16 cm |
| Weight | 2.6 kg |
Sustainability
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
