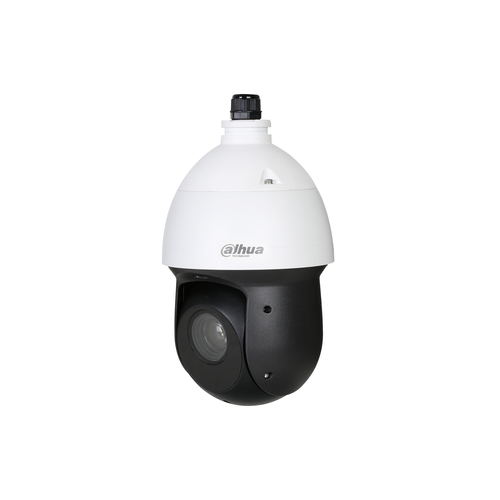

Dahua Technology Lite SD49425XB-HNR security camera Dome IP security camera
Dahua Technology

Lite SD49425XB-HNR security camera Dome IP security camera

2560 x 1440 pixels Ceiling/wall

Model SD49425XB-HNREAN 6939554953187

88 specifications
  • Memory1024 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight3 kg
  • ColourWhite
  • Form factorDome
See all specifications

Overview

Memory
1024 MB
Connectivity
Wired
Type
IP security camera
Weight
3 kg
Colour
White
Form factor
Dome
Brand
Dahua Technology
Model
SD49425XB-HNR
Part number
SD49425XB-HNR
EAN / UPC
6939554953187
Also known as
Dahua Technology Lite SD49425XB-HNR security camera Dome IP security camera 2560 x 1440 pixels Ceiling/wall

Specifications

88 specifications in 16 groups

Performance

TypeIP security camera
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan
PTZ protocolsPelco-P/D, DH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB, ANSI C63.4-2014 UL: UL60950-1+CAN/CSA C22.2, No. 60950-1

Design

Form factorDome
Mounting typeCeiling/wall
Product colourWhite
Housing materialAluminium
International Protection (IP) codeIP66

Camera

Minimum illumination0 lx
Lens viewing angle, horizontal60°
Lens viewing angle, vertical30.8°
Lens viewing angle, diagonal66.7°
Tilt angle range-15 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed200 °/sec
White balanceAuto, Indoor, Manual, Natural, Outdoor, Sodium lamp
Camera shutter typeElectronic
Camera shutter speed1/1 - 1/30000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom25x
Detect distance2540 m
Observe distance1016 m
Recognize distance508 m
Focal length range4.8 - 120 mm
Auto focusYes
Identify distance254 m
Maximum aperture number4
Minimum aperture number1.6
Closest focusing distance1.5 m

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs4

Video

Maximum resolution2560 x 1440 pixels
Total megapixels4 MP
Video formats supportedH.264, H.264+, H.265, H.265+, M-JPEG
Video compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Supported video modes720p, 1080p
Frame rate30 fps
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Image stabilizerYes
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes
Smart IRYes

Audio

Audio formats supportedG.722.1, G.726
Voice codecsG.711Mu, G.711a, G.722.1, G.726, G.729

Network

Ethernet LANYes
Ethernet interface typeFast Ethernet
Supported network protocolsIPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Number of users19 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast

Storage

Internal memory1024 MB
ROM capacity4096 MB

Security

Active tampering alarmYes
HTTPS encryptionYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Missing object
Video motion detectionYes

Power

Power source typeDC, PoE
Power consumption (typical)13 W
DC output voltage12
DC output current3 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C

Weight & dimensions

Height295 mm
Diameter16 cm
Weight3 kg

Packaging data

Package weight4.8 kg

Packaging content

Number of cameras1
