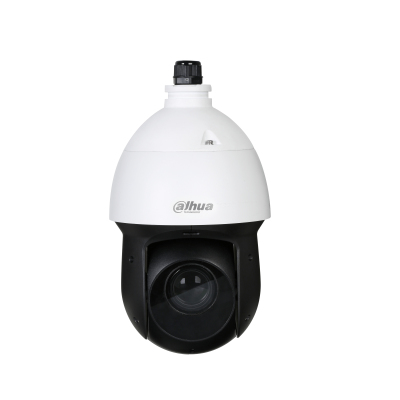

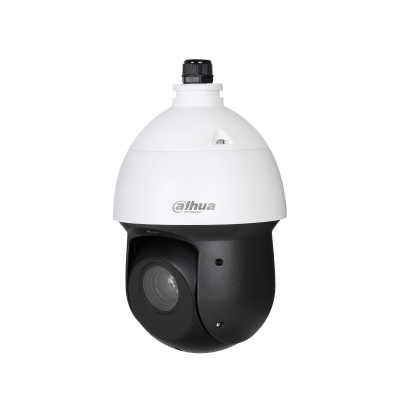

Dahua Technology WizSense SD49225XAN-HNR-S2 Turret IP security camera Indoor & outdoor

Dahua Technology

WizSense SD49225XAN-HNR-S2 Turret IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling

Model SD49225XAN-HNR-S2Part no. DH-SD49225XAN-HNR-S2

83 specifications

ConnectivityWired
TypeIP security camera
ColourBlack, White
Form factorTurret
Camera pan controlYes
Sensor typeCMOS

See all specifications

Overview

Connectivity: Wired
Type: IP security camera
Colour: Black, White
Form factor: Turret
Camera pan control: Yes
Sensor type: CMOS

Brand: Dahua Technology
Category: Security Camera
Model: SD49225XAN-HNR-S2
Part number: DH-SD49225XAN-HNR-S2
Also known as: Dahua Technology WizSense SD49225XAN-HNR-S2 Turret IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling

Specifications

83 specifications in 19 groups

Performance

Specification	Value
Type	IP security camera
Placement supported	Indoor & outdoor
Connectivity technology	Wired
PTZ control	Yes
Wide Dynamic Range (WDR)	Yes
Day/night mode	Yes
Alarm input/output	Yes

Design

Specification	Value
Form factor	Turret
Mounting type	Ceiling
Product colour	Black, White
Housing material	Aluminium
International Protection (IP) code	IP66

Camera

Specification	Value
Camera pan control	Yes
Camera tilt control	Yes
Minimum illumination	0.005 lx
Tilt angle range	-15 - 90°
Tilt speed	120 °/sec
Pan range	0 - 360°
Pan preset speed	240 °/sec
Pan speed	200 °/sec
White balance	Auto, Indoor, Manual, Natural, Outdoor, Sodium lamp, Street lamp
Camera shutter type	Electronic
Camera shutter speed	1/1–1/30000

Image sensor

Specification	Value
Sensor type	CMOS
Optical sensor size	25.4 / 2.8 mm (1 / 2.8")
Progressive scan	Yes

Panoramic camera

Specification	Value
Bit rate control (panoramic camera)	Constant Bit Rate (CBR), Variable Bit Rate (VBR)

Lens system

Specification	Value
Number of lenses	1
Optical zoom	25x
Detect distance	1655 m
Observe distance	654 m
Recognize distance	331 m
Focal length range	4.8 - 120 mm
Auto focus	Yes
Focus	Manual
Identify distance	165 m
Maximum aperture number	3.5
Minimum aperture number	1.6
Closest focusing distance	1.5 m

Night vision

Specification	Value
Night vision	Yes
Night vision distance	100 m
LED type	IR
Number of illumination LEDs	6

Video

Specification	Value
Maximum resolution	1920 x 1080 pixels
Total megapixels	2 MP
Video compression formats	H.264, H.264B, H.265, H.265+, M-JPEG
Frame rate	60 fps
Video streaming	Yes
Noise reduction	Yes
Noise reduction technology	2D noise reduction, 3D noise reduction
Gain control type	Auto/Manual
Bit rate	32 - 8192
Highlight Compensation (HLC)	Yes
Privacy masking	Yes
Region of Interest (ROI) encoding	Yes

Audio

Specification	Value
Audio formats supported	G.711 A-law, G.711 μ-law, G.722.1, G.726
Signal-to-Noise Ratio (SNR)	55 dB

Network

Specification	Value
Ethernet LAN	Yes
Wi-Fi	No
Bluetooth	No
Number of users	20 user(s)
Streaming method	Multicast, Unicast

Storage

Specification	Value
Built-in HDD	No
Card reader integrated	Yes
Compatible memory cards	MicroSD (TransFlash)
Flash memory	1024 MB
ROM capacity	256 MB

Ports & interfaces

Specification	Value
Ethernet LAN (RJ-45) ports	1

Security

Specification	Value
Alarm input channels	2
Alarm output channels	1
Intelligent Video Surveillance (IVS) system features	Face detection
Video motion detection	Yes

Management features

Specification	Value
Web browser	Yes

Power

Specification	Value
Power source type	DC, PoE
Power consumption (typical)	9 W
Power consumption (max)	23 W
DC output voltage	12
DC output current	3 A

Operational conditions

Specification	Value
Operating temperature (T-T)	-40 - 70 °C

System requirements

Specification	Value
Mobile operating systems supported	Android, iOS

Weight & dimensions

Specification	Value
Height	295 mm
Diameter	16 cm

Packaging content

Specification	Value
Number of cameras	1
