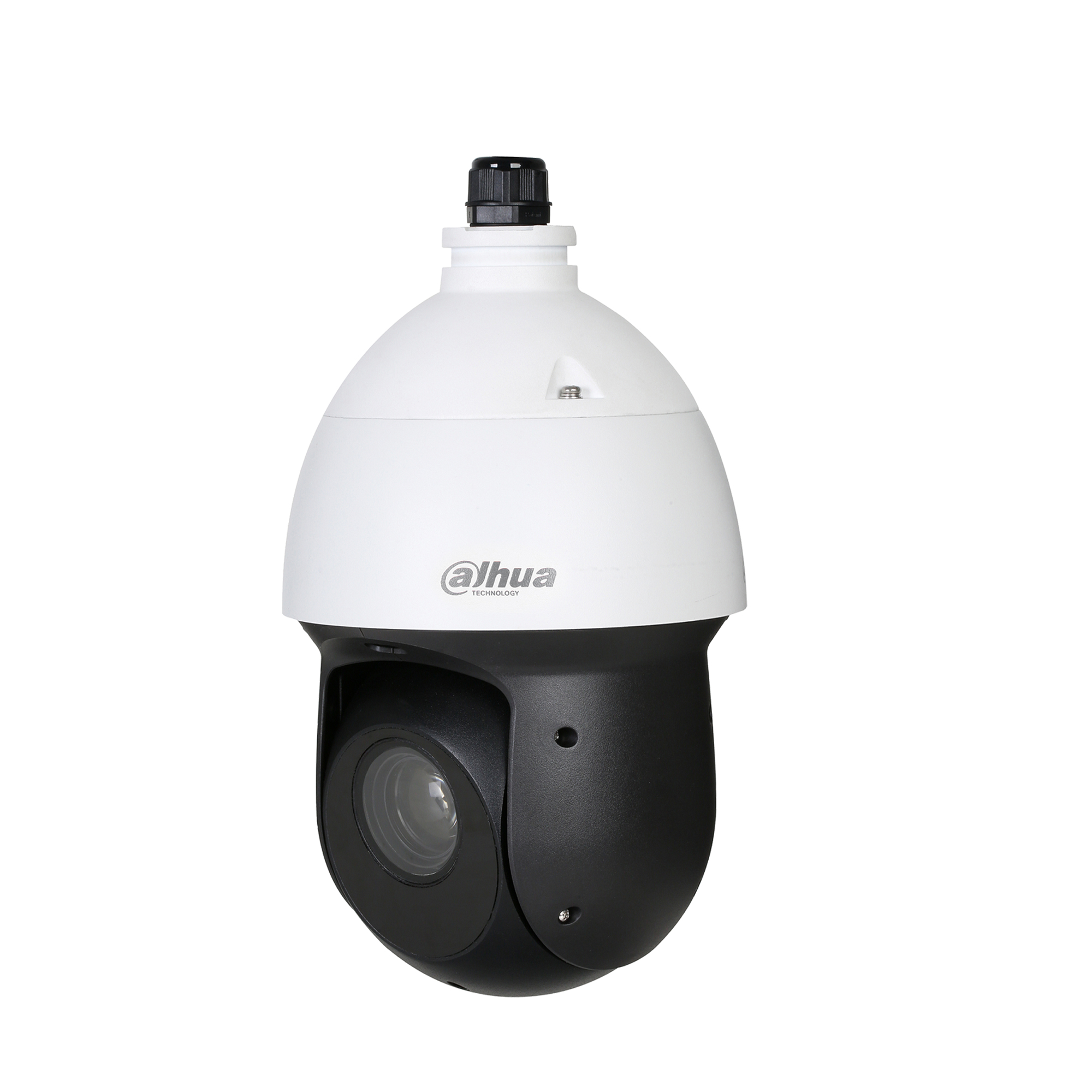

Dahua Technology Lite SD49225T-HN security camera IP security camera Indoor & outdoor
Dahua Technology

Lite SD49225T-HN security camera IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model SD49225T-HNEAN 2000000902142

108 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight4 kg
  • ColourBlack, White
  • Mounting typeCeiling/wall
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
4 kg
Colour
Black, White
Mounting type
Ceiling/wall
Brand
Dahua Technology
Model
SD49225T-HN
Part number
SD49225T-HN
EAN / UPC
2000000902142, 6939554922145
Also known as
Dahua Technology Lite SD49225T-HN security camera IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

108 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modesAuto scan, Auto pan
PTZ protocolsDH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Mounting typeCeiling/wall
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP66
Fog proofYes

Camera

Minimum illumination0.005 lx
Tilt angle range-15 - 90°
Tilt preset speed200 °/sec
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed200 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Preset programs quantity300
Camera shutter speed1/3 - 1/300000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Detect distance1613 m
Observe distance646 m
Recognize distance323 m
Focal length range4.8 - 120 mm
FocusMotorized/Manual
Identify distance161 m
Maximum aperture number4.4
Minimum aperture number1.6
Closest focusing distance1 m

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs6

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.265, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate25 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Bit rateH.265/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Full HDYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedPCM
Signal-to-Noise Ratio (SNR)50 dB
Voice codecsG.711u, G.711a

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP,ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast
Client interoperabilityONVIF, PSIA, CGI

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB
Flash memory1024 MB
Internal memory128 MB

Ports & interfaces

DC-in jackYes
InterfaceRJ-45

Security

Auto restore after power failureYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Motion sensorYes

Management features

Web browserYes
Management softwareSmart PSS, DSS

Power

Power source typePoE
Power consumption (typical)13 W
DC output voltage12
DC output current3 A
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height295 mm
Diameter16 cm
Weight4 kg

Packaging data

Package weight4.2 kg

Packaging content

Number of cameras1
Mounting kitYes

Other features

Browser supportedIE, Chrome, Firefox, Safari
IR controlAuto, Manual

Technical details

Number of video streams3
