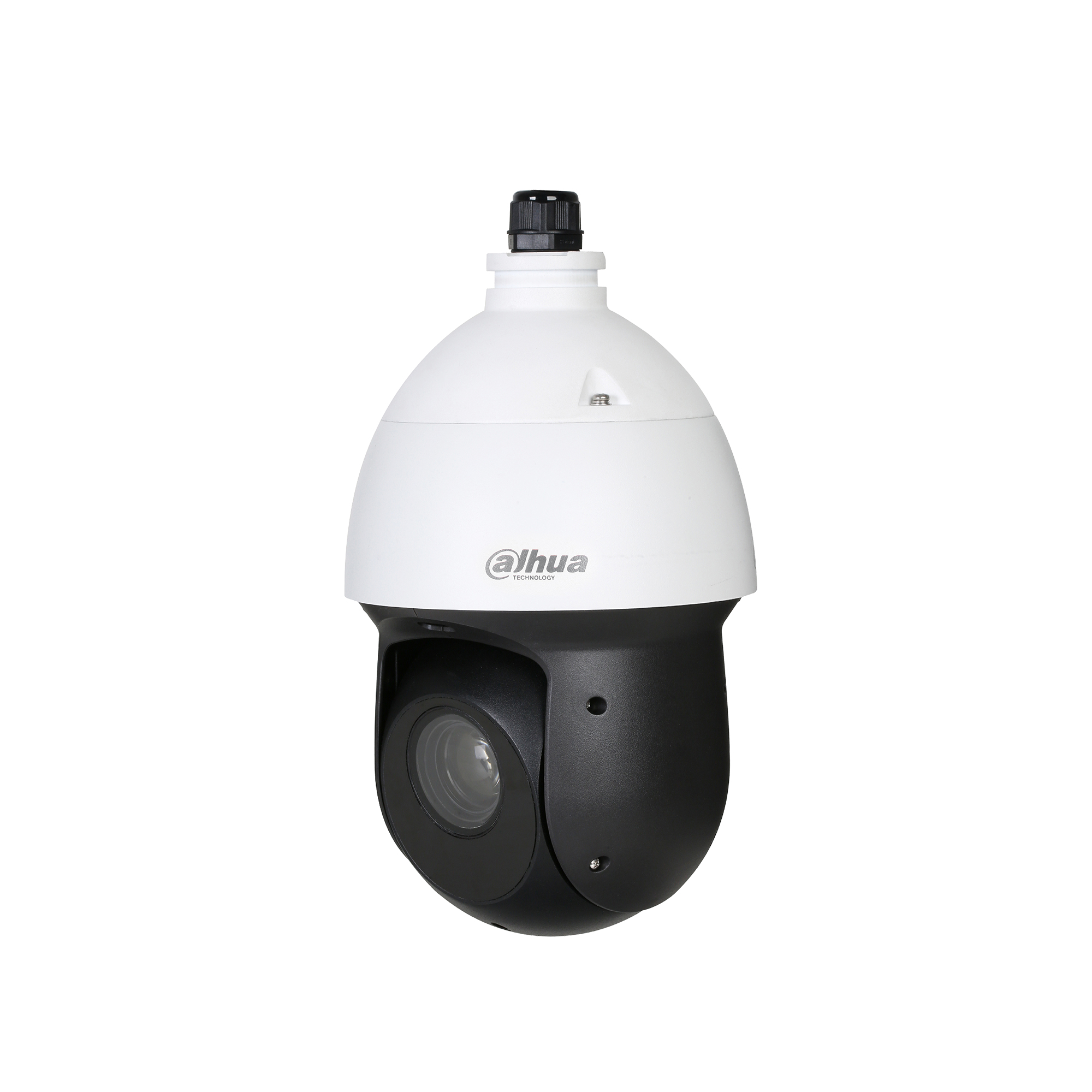

Dahua Technology Lite SD49225I-HC-S3 security camera Dome CCTV security camera Outdoor
Dahua Technology

Lite SD49225I-HC-S3 security camera Dome CCTV security camera Outdoor

1920 x 1080 pixels Pole clamp

Model SD49225I-HC-S3EAN 6939554942495

96 specifications
  • ConnectivityWired
  • TypeCCTV security camera
  • Weight3 kg
  • ColourBlack, White
  • Form factorDome
  • Camera pan controlYes
See all specifications

Overview

Connectivity
Wired
Type
CCTV security camera
Weight
3 kg
Colour
Black, White
Form factor
Dome
Camera pan control
Yes
Brand
Dahua Technology
Model
SD49225I-HC-S3
Part number
SD49225I-HC-S3
EAN / UPC
6939554942495
Also known as
Dahua Technology Lite SD49225I-HC-S3 security camera Dome CCTV security camera Outdoor 1920 x 1080 pixels Pole clamp

Specifications

96 specifications in 17 groups

Performance

TypeCCTV security camera
Placement supportedOutdoor
Connectivity technologyWired
PTZ controlYes
PTZ modes5 Pattern, 8 Tour, Auto scan, Auto pan
PTZ protocolsPelco-P/D, DH-SD
Auto pan modeYes
Auto patrol modeYes
Preset pointsYes
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Infrared (IR) cut-off filterYes
Alarm input/outputYes
Remote viewingYes
CertificationCE: EN55032/EN55024/EN50130-4, FCC: Part15 subpartB,ANSI C63.4- 2014, UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Form factorDome
Mounting typePole clamp
Product colourBlack, White
Housing materialMetal
International Protection (IP) codeIP66
WeatherproofYes

Camera

Camera pan controlYes
Camera tilt controlYes
Minimum illumination0.005 lx
Lens viewing angle, horizontal62.8°
Tilt angle range-15 - 90°
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed240 °/sec
Pan speed200 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Camera shutter speed1/3 - 1/300000 s

Image sensor

Sensor typeCMOS
Number of sensors1
Optical sensor size25.4 / 2.8 mm (1 / 2.8")
Progressive scanYes
Number of effective pixels (H x V)1920 x 1080 pixels

Lens system

Number of lenses1
Zoom capabilityYes
Optical zoom25x
Digital zoom16x
Detect distance1613 m
Observe distance646 m
Recognize distance323 m
Focal length range4.8 - 120 mm
FocusMotorized/Manual
Identify distance161 m
Maximum aperture number4.4
Minimum aperture number1.6

Night vision

Night visionYes
Night vision distance100 m
LED typeIR
Number of illumination LEDs6
Infra-red wavelength850 nm

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, H.265, H.265+
Supported graphics resolutions1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate60 fps
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Back Light Compensation (BLC)Yes
Digital Wide Dynamic Range (DWDR)Yes
Flip & mirrorYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio input channels1.0 channels

Network

Ethernet LANNo
Wi-FiNo
BluetoothNo

Storage

Built-in HDDNo

Ports & interfaces

Composite video out1
BNC output ports1
Terminal block portYes
DC-in jackYes

Security

Anti-flickerYes
HeartbeatYes
MirrorYes
Motion sensorYes

Power

Power source typeDC
Power consumption (typical)13 W
Power consumption (max)22 W
DC output voltage12
DC output current3 A

Operational conditions

Operating temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)0 - 90%

Weight & dimensions

Height295 mm
Diameter16 cm
Weight3 kg

Packaging data

Package weight4.2 kg

Packaging content

Number of cameras1
