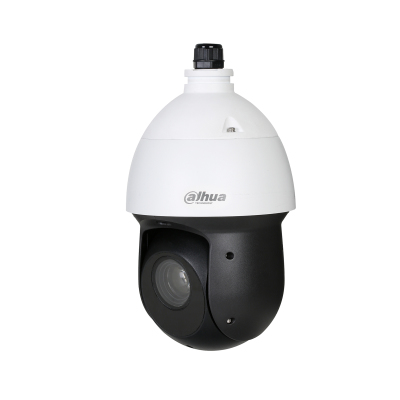

Lite SD49212I-HC security camera Dome Indoor & outdoor
1920 x 1080 pixels Ceiling
Model SD49212I-HC
50 specifications
- ConnectivityWired
- TypeDome
- Weight3 kg
- ColourBlack, White
- Placement supportedIndoor & outdoor
- Lens viewing angle, horizontal59.2°
Overview
- Connectivity
- Wired
- Type
- Dome
- Weight
- 3 kg
- Colour
- Black, White
- Placement supported
- Indoor & outdoor
- Lens viewing angle, horizontal
- 59.2°
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- SD49212I-HC
- Part number
- SD49212I-HC
- Also known as
- Dahua Technology Lite SD49212I-HC security camera Dome Indoor & outdoor 1920 x 1080 pixels Ceiling
Specifications
50 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Maximum operating distance | 100 m |
| Wide Dynamic Range (WDR) | Yes |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Ceiling |
| Product colour | Black, White |
| Housing material | Metal |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Lens viewing angle, horizontal | 59.2° |
| Lens viewing angle, vertical | 4.8° |
| Tilt angle range | -15 - 90° |
| Pan range | 0 - 360° |
| Pan preset speed | 240 °/sec |
| Pan speed | 200 °/sec |
| Auto flip | Yes |
| White balance | ATW, Auto, Indoor, Manual, Outdoor |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Optical zoom | 12x |
| Digital zoom | 16x |
| Focal length range | 5.3 - 64 mm |
| Focus | Motorized/Manual |
| Maximum aperture number | 3 |
| Minimum aperture number | 1.6 |
Night vision
| Specification | Value |
|---|---|
| Number of illumination LEDs | 6 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
| Noise reduction technology | Ultra 2D noise reduction, Ultra 3D noise reduction |
| Gain control type | Auto/Manual |
| Privacy masking | Yes |
Audio
| Specification | Value |
|---|---|
| Signal-to-Noise Ratio (SNR) | 55 dB |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
| Composite video out | 1 |
Security
| Specification | Value |
|---|---|
| Active tampering alarm | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC |
| Power consumption (typical) | 13 W |
| Power consumption (max) | 22 W |
| DC output voltage | 12 |
| DC output current | 3 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 160 mm |
| Depth | 160 mm |
| Height | 295 mm |
| Weight | 3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.2 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
