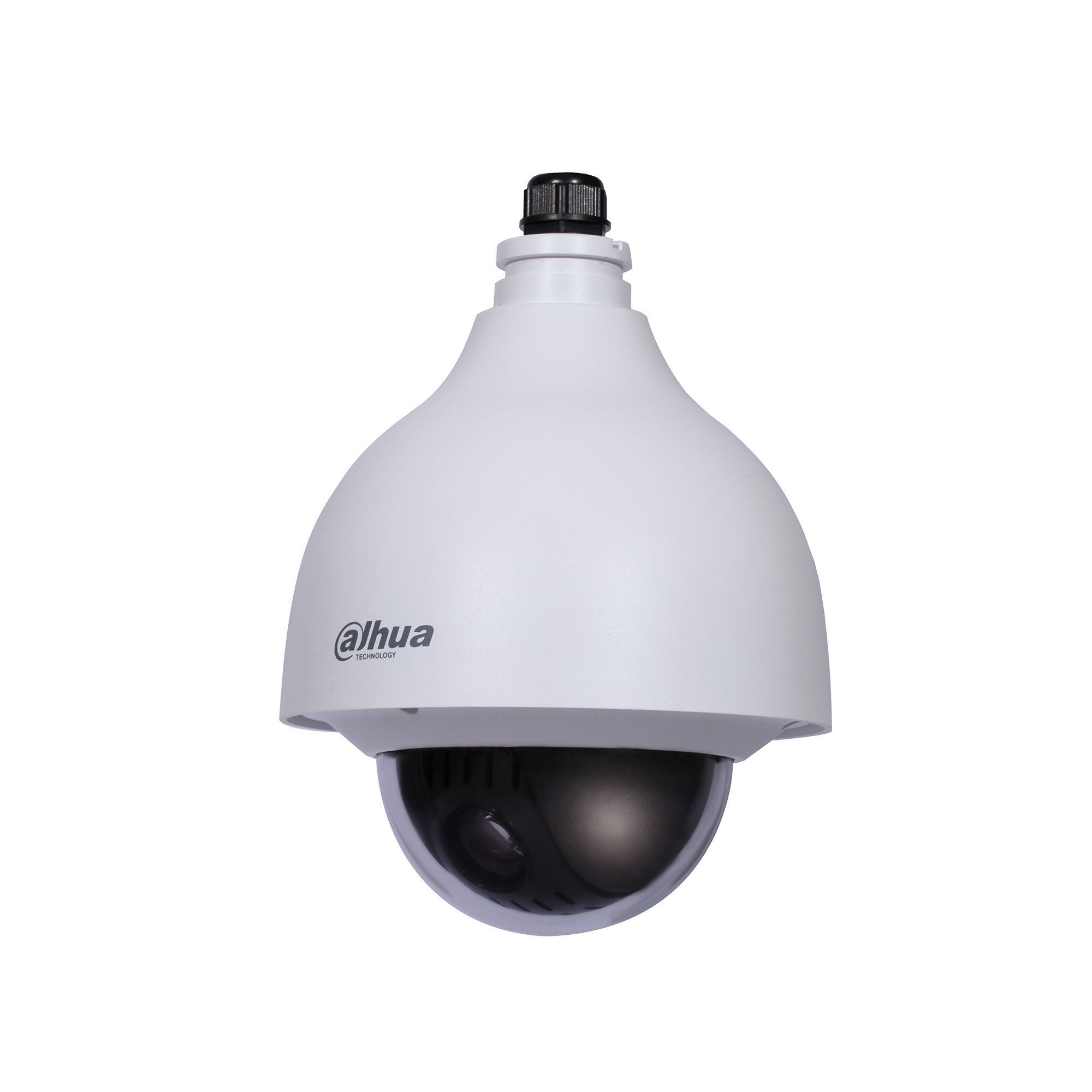

Dahua Technology Lite SD40212T-HN security camera IP security camera Indoor & outdoor

Dahua Technology Lite SD40212T-HN security camera IP security camera Indoor & outdoor

1920 x 1080 pixels Ceiling/wall

Model SD40212T-HNEAN 6939554922169

106 specifications
  • Memory128 MB
  • ConnectivityWired
  • TypeIP security camera
  • Weight2.3 kg
  • ColourWhite
  • Mounting typeCeiling/wall
See all specifications

Overview

Memory
128 MB
Connectivity
Wired
Type
IP security camera
Weight
2.3 kg
Colour
White
Mounting type
Ceiling/wall
Brand
Dahua Technology
Model
SD40212T-HN
Part number
SD40212T-HN
EAN / UPC
6939554922169
Also known as
Dahua Technology Lite SD40212T-HN security camera IP security camera Indoor & outdoor 1920 x 1080 pixels Ceiling/wall

Specifications

106 specifications in 21 groups

Performance

TypeIP security camera
Placement supportedIndoor & outdoor
Connectivity technologyWired
PTZ controlYes
PTZ modesAuto scan, Auto pan
PTZ protocolsDH-SD
Wide Dynamic Range (WDR)Yes
Day/night modeYes
Alarm input/outputYes
CertificationCE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1

Design

Mounting typeCeiling/wall
Product colourWhite
Housing materialMetal
Protection featuresVandal proof
International Protection (IP) codeIP66
IK codeIK10
Fog proofYes

Camera

Minimum illumination0.05 lx
Tilt angle range-2 - 90°
Tilt preset speed200 °/sec
Tilt speed120 °/sec
Pan range0 - 360°
Pan preset speed300 °/sec
Pan speed300 °/sec
Auto flipYes
White balanceATW, Auto, Indoor, Manual, Outdoor
Camera shutter typeElectronic
Preset programs quantity300
Camera shutter speed1/3 - 1/300000 s

Image sensor

Sensor typeCMOS
Optical sensor size25.4 / 2.7 mm (1 / 2.7")
Progressive scanYes

Lens system

Zoom capabilityYes
Optical zoom12x
Digital zoom16x
Detect distance883 m
Observe distance353 m
Recognize distance177 m
Focal length range5.1 - 61.2 mm
FocusMotorized/Manual
Identify distance88 m
Maximum aperture number3
Minimum aperture number1.6
Closest focusing distance1000 m

Night vision

Night visionYes

Video

Maximum resolution1920 x 1080 pixels
Total megapixels2 MP
Video compression formatsH.264, H.264+, M-JPEG
Supported graphics resolutions352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
Supported video modes720p, 1080p
Frame rate25 fps
Analog signal format systemPAL
Video streamingYes
Noise reductionYes
Noise reduction technologyUltra 2D noise reduction, Ultra 3D noise reduction
Gain control typeAuto/Manual
Automatic gain controlYes
Back Light Compensation (BLC)Yes
Bit rateH.264+/H.264: 448K ~ 8192Kbps, MJPEG: 5120K ~ 10240Kbps
Bit rate controlConstant Bit Rate (CBR), Variable Bit Rate (VBR)
Full HDYes
Highlight Compensation (HLC)Yes
Privacy maskingYes
Region of Interest (ROI) encodingYes

Audio

Audio formats supportedPCM
Signal-to-Noise Ratio (SNR)55 dB
Voice codecsG.711a, G.711u

Network

Ethernet LANYes
Wi-FiNo
Ethernet interface typeFast Ethernet
Networking standardsIEEE 802.3at
Supported network protocolsIPv4/IPv6,HTTP,HTTPS,SSL,TCP/IP, UDP,UPnP, ICMP,IGMP,SNMP,RTSP,RTP, SMTP, NTP,DHCP, DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x
Cabling technology10/100Base-T(X)
Number of users20 user(s)
Quality of Service (QoS) supportYes
Streaming methodMulticast, Unicast
Client interoperabilityONVIF, PSIA, CGI

Storage

Built-in HDDNo
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Maximum memory card size128 GB
Flash memory256 MB
Internal memory128 MB

Ports & interfaces

InterfaceRJ-45

Security

Auto restore after power failureYes
IP address filteringYes
Intelligent Video Surveillance (IVS) system featuresAbandoned object, Face detection, Intrusion, Missing object, Tripwire
Motion sensorYes

Management features

Web browserYes
Management softwareSmart PSS, DSS

Power

Power source typePoE
AC input voltage24 V
AC adapter output current1.5 A
Power consumption (typical)12 W
Power over Ethernet (PoE)Yes

Operational conditions

Operating temperature (T-T)-40 - 60 °C
Operating relative humidity (H-H)0 - 90%

System requirements

Mobile operating systems supportedAndroid, iOS

Weight & dimensions

Height234 mm
Diameter18.6 cm
Weight2.3 kg

Packaging data

Package weight4.3 kg

Packaging content

Number of cameras1
Mounting kitYes
AC adapter includedYes

Other features

Browser supportedIE, Chrome, Firefox, Safari

Technical details

Number of video streams3
