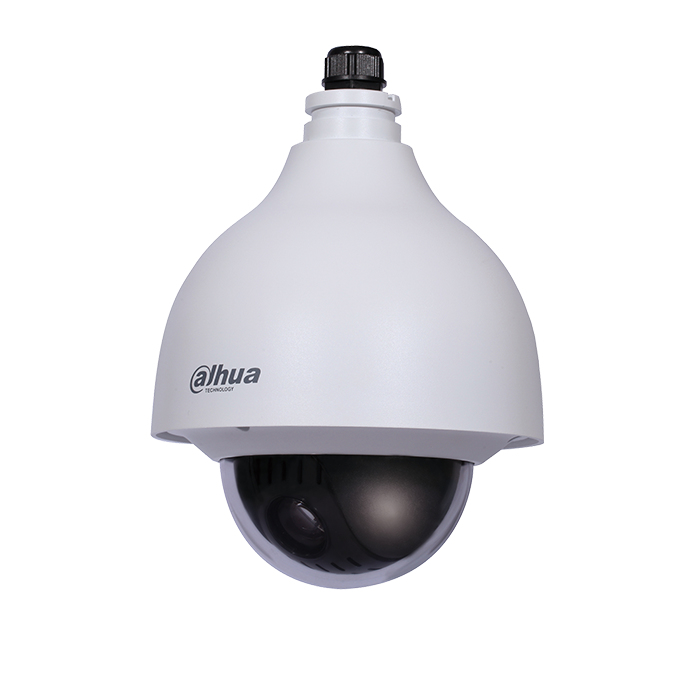

Lite SD40212IHCS3 security camera Dome IP security camera Indoor & outdoor
1920 x 1080 pixels Wall
Model SD40212IHCS3
47 specifications
- ConnectivityWired
- TypeIP security camera
- Weight2.3 kg
- ColourWhite
- Form factorDome
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- IP security camera
- Weight
- 2.3 kg
- Colour
- White
- Form factor
- Dome
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- SD40212IHCS3
- Part number
- SD40212IHCS3
- Also known as
- Dahua Technology Lite SD40212IHCS3 security camera Dome IP security camera Indoor & outdoor 1920 x 1080 pixels Wall
Specifications
47 specifications in 15 groups
Performance
| Specification | Value |
|---|---|
| Type | IP security camera |
| Placement supported | Indoor & outdoor |
| Connectivity technology | Wired |
| Day/night mode | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Dome |
| Mounting type | Wall |
| Product colour | White |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | No |
| Minimum illumination | 0.005 lx |
| Pan range | 0 - 360° |
| Pan speed | 300 °/sec |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Number of sensors | 1 |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Number of lenses | 1 |
| Zoom capability | Yes |
| Optical zoom | 12x |
| Digital zoom | 16x |
| Detect distance | 883 m |
| Observe distance | 353 m |
| Recognize distance | 177 m |
| Lens diameter | 5.3 mm |
| Auto focus | Yes |
| Identify distance | 88 m |
| Fixed focal length | 64 mm |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Total megapixels | 2 MP |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | No |
| Bluetooth | No |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
Ports & interfaces
| Specification | Value |
|---|---|
| RS-485 ports | 1 |
| Microphone in | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| AC input voltage | 24 V |
| Power consumption (typical) | 10 W |
| Power consumption (max) | 19 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Height | 234 mm |
| Diameter | 18.6 cm |
| Weight | 2.3 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 4.3 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
