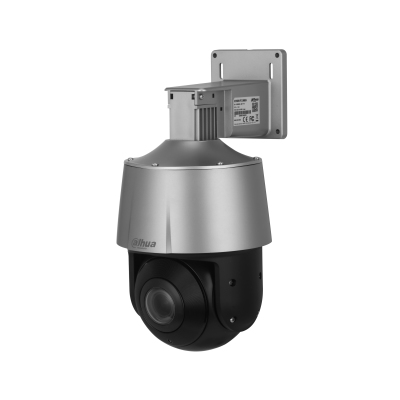

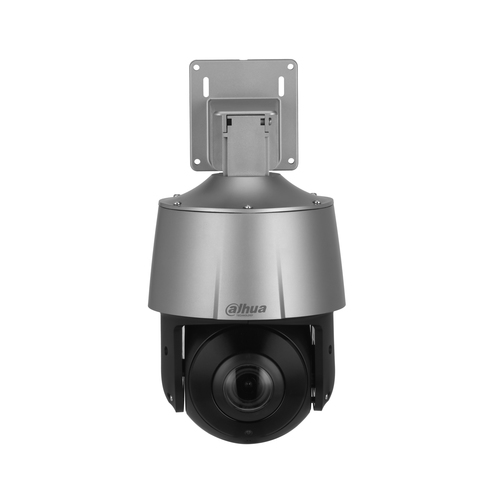

SD3A205-GNP-PV Turret CCTV security camera Outdoor
1920 x 1080 pixels Ceiling/Wall/Desk
Model SD3A205-GNP-PVPart no. DH-SD3A205-GNP-PV
57 specifications
- ConnectivityWired
- TypeCCTV security camera
- Weight1.1 kg
- ColourBlack, Silver
- Form factorTurret
- Camera pan controlYes
Overview
- Connectivity
- Wired
- Type
- CCTV security camera
- Weight
- 1.1 kg
- Colour
- Black, Silver
- Form factor
- Turret
- Camera pan control
- Yes
- Brand
- Dahua Technology
- Category
- Security Camera
- Model
- SD3A205-GNP-PV
- Part number
- DH-SD3A205-GNP-PV
- Also known as
- Dahua Technology SD3A205-GNP-PV Turret CCTV security camera Outdoor 1920 x 1080 pixels Ceiling/Wall/Desk
Specifications
57 specifications in 16 groups
Performance
| Specification | Value |
|---|---|
| Type | CCTV security camera |
| Placement supported | Outdoor |
| Connectivity technology | Wired |
| PTZ control | Yes |
| Auto pan mode | Yes |
| Day/night mode | Yes |
| Alarm input/output | Yes |
Design
| Specification | Value |
|---|---|
| Form factor | Turret |
| Mounting type | Ceiling/Wall/Desk |
| Product colour | Black, Silver |
| International Protection (IP) code | IP66 |
Camera
| Specification | Value |
|---|---|
| Camera pan control | Yes |
| Camera tilt control | Yes |
| Auto flip | Yes |
Image sensor
| Specification | Value |
|---|---|
| Sensor type | CMOS |
| Optical sensor size | 25.4 / 2.8 mm (1 / 2.8") |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
| Optical zoom | 5x |
| Focal length range | 2.7 - 13.5 mm |
| Auto focus | Yes |
| Fixed focus | Yes |
| Focus | Motorized/Manual |
| Maximum aperture number | 3.3 |
Night vision
| Specification | Value |
|---|---|
| Night vision | Yes |
| Night vision distance | 30 m |
| LED type | IR |
| Number of illumination LEDs | 4 |
Video
| Specification | Value |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Noise reduction | Yes |
| Noise reduction technology | 2D noise reduction, 3D noise reduction |
| Gain control type | Auto/Manual |
| Flip & mirror | Yes |
| Region of Interest (ROI) encoding | Yes |
Audio
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Audio system | 2-way |
| Signal-to-Noise Ratio (SNR) | 55 dB |
| Built-in microphone | Yes |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Bluetooth | No |
| Ethernet interface type | 100 Gigabit Ethernet |
| Number of users | 20 user(s) |
| User access level | User |
Storage
| Specification | Value |
|---|---|
| Built-in HDD | No |
| Card reader integrated | Yes |
| Compatible memory cards | MicroSD (TransFlash) |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
Security
| Specification | Value |
|---|---|
| Video motion detection | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, PoE |
| Power consumption (typical) | 5 W |
| Power consumption (max) | 12 W |
| DC output voltage | 12 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 217.7 mm |
| Depth | 142.5 mm |
| Height | 124.1 mm |
| Weight | 1.1 kg |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 1.51 kg |
Packaging content
| Specification | Value |
|---|---|
| Number of cameras | 1 |
